The settings are optimized for your particular combination of devices. You can adjust settings further, but auto route gives you a
good starting point. Auto route works with any device in Designer.
To use auto route:
1. Place all relevant devices in a design.
2. Select Auto route. Designer optimizes microphone and DSP settings for your equipment combination.
If you remove or add devices, select Auto route again.
Note: The auto route process clears any manual routes you may have made in your design.
After auto routing a room, check and adjust settings to fit your needs. You may need to:
• Delete unnecessary routes.
• Check levels and adjust gain.
• Check that AEC reference signals are correctly routed and received in a test call.
• Fine-tune DSP blocks.
• Adjust your processor's matrix mixer routes.
If you want to auto route an online room, turn on online room editing in File > Designer preferences.
Note: Changes to an online room may cause audio to briefly drop out.
Refer to Designer's Troubleshooting section

Installation and Rack Mounting

Two mounting solutions are available for installing the Audio Network Interface:
CRT1 19" Rack Tray (optional accessory): Supports up to 3 devices; mountable in a rack or under a table
Single-unit Mounting Tray (included accessory): Supports a single device for mounting under a table

Securing the Devices

Use the included screws from the mounting hardware kit to secure the Audio Network Interfaces. Audio Network Interfaces can
be mounted to face either direction. Insert the screws from the bottom in the appropriate holes, according to the following dia­
grams:

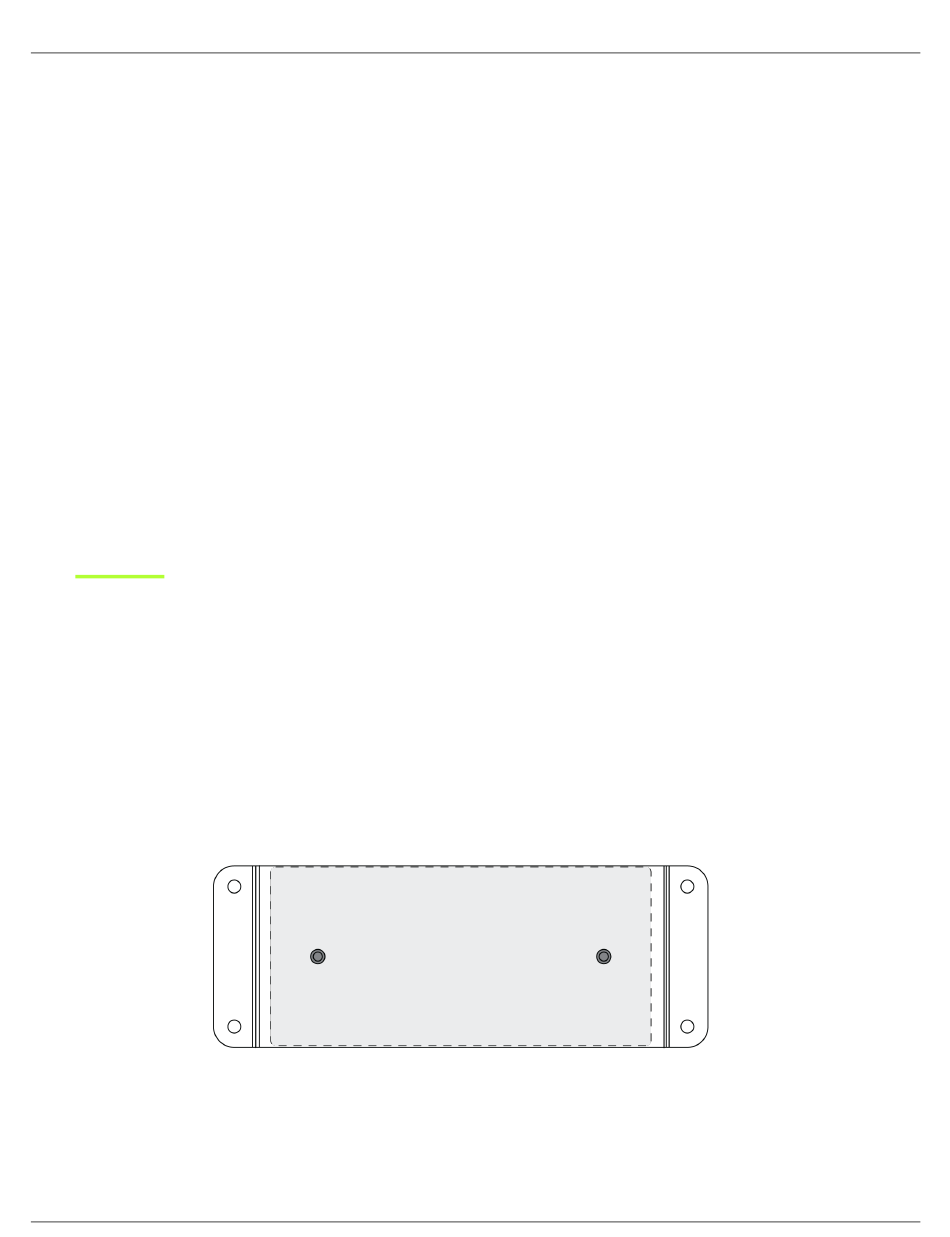

Align the holes as shown for securing a single device in the single-unit mounting tray
for help with routing.
