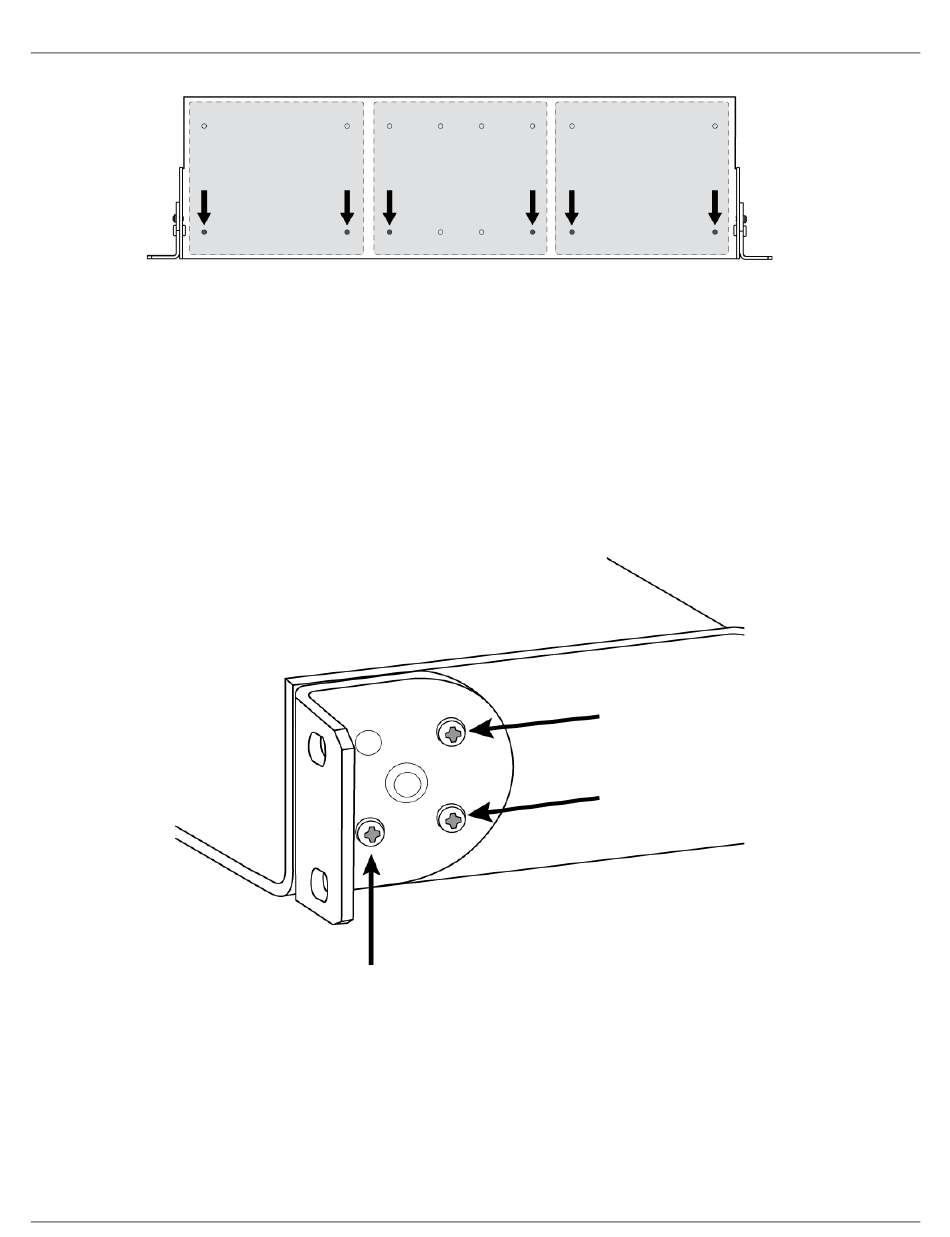

Align the holes as shown for securing up to 3 devices in the 19" rack tray.
Rack Ear Configuration
A combination of up to 3 Audio Network Interfaces can be mounted in a single 19-inch rack space. The adjustable rack ears
support mounting in a standard equipment rack or underneath a table.
Standard 19" Rack Mount
1.
Align the ears with the mounting holes pointed forward.
2.
Install the 3 screws that hold the ear to the tray as shown.
Under-Table Mounting
1.
Align the ears with the mounting holes pointed upward.
2.
Install the 3 screws that hold the ear to the tray as shown.
