Shure ANI22 Manual

Audio network interface
Hide thumbs Also See for ANI22:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

General Description

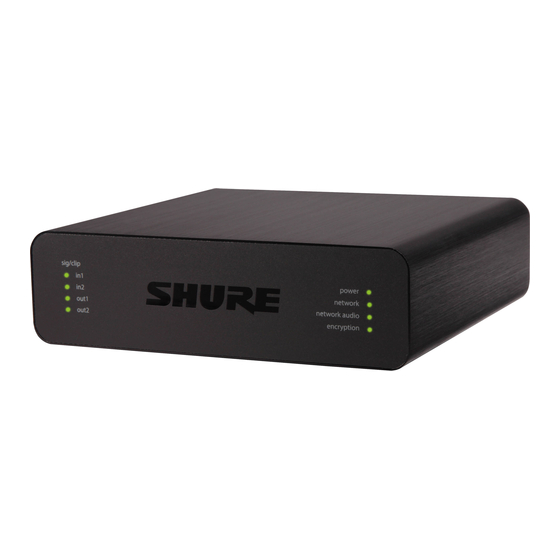

The Shure ANI22 Audio Network Interface provides 2 channels of Dante-to-
analog and 2 channels of analog-to-Dante conversion. A single interface
provides a simple way to connect analog equipment to the audio network,
such as wireless microphones, audio processors, video codecs, and loud-

Safety Information

IMPORTANT SAFETY INSTRUCTIONS

1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Allow sufficient distances for
adequate ventilation and install in accordance with the manufacturer's
instructions.
8. DO NOT install near any heat sources such as open flames, radiators,
heat registers, stoves, or other apparatus (including amplifiers) that pro-
duce heat. Do not place any open flame sources on the product.
9. DO NOT defeat the safety purpose of the polarized or grounding type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wider blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12. USE only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.

Getting Started

This device features a browser-based web application, which controls audio and network properties. Upon completing this basic setup process, you will be able
to:
•
Access the web application to customize audio settings and network properties
•
Use Dante™ Controller software to connect with other Dante devices and pass audio
•
Access additional configuration information
Step 1: Connect to a Network
1. Use an Ethernet cable (CAT5e or higher) to connect the ANI22 to a network switch.
Note: The network switch must provide Power over Ethernet (PoE). Make sure to connect to a PoE port, since many switches do not supply power on all
ports.
2. Connect a computer to the network switch with an Ethernet cable
©2017 Shure Incorporated
speaker systems. Available in XLR and block connector versions, each box
uses a single network cable to carry audio and power through Power over
Ethernet (PoE). A browser-based web application controls audio and network
settings from any computer connected to the same network.
13. UNPLUG this apparatus during lightning storms or when unused for long
periods of time.
14. REFER all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15. DO NOT expose the apparatus to dripping and splashing. DO NOT put
objects filled with liquids, such as vases, on the apparatus.
16. The MAINS plug or an appliance coupler shall remain readily operable.
17. The airborne noise of the Apparatus does not exceed 70dB (A).
18. Apparatus with CLASS I construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
19. To reduce the risk of fire or electric shock, do not expose this apparatus
to rain or moisture.
20. Do not attempt to modify this product. Doing so could result in personal
injury and/or product failure.
21. Operate this product within its specified operating temperature range.
This symbol indicates that dangerous voltage constituting a risk of
electric shock is present within this unit.
This symbol indicates that there are important operating and main-
tenance instructions in the literature accompanying this unit.
ANI22
Audio Network Interface
1/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANI22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shure ANI22

Summary of Contents for Shure ANI22

  • Page 1: General Description

    Step 1: Connect to a Network 1. Use an Ethernet cable (CAT5e or higher) to connect the ANI22 to a network switch. Note: The network switch must provide Power over Ethernet (PoE). Make sure to connect to a PoE port, since many switches do not supply power on all ports.

  • Page 2: Network Switch

    2. Open the Shure Device Discovery application 3. Double-click the device to open the web application. Tip: If setting up multiple Shure devices, use the Identify button in the application to flash the lights on the device. Identify Select the device Step 3: Connect Devices in Dante Controller Software 1.

  • Page 3: Step 4: Configure Audio

    1. Connect analog equipment (such as loudspeakers or wireless microphone systems) to the analog inputs and outputs. Refer to the hardware section in this guide for information on connections and LED metering. 2. In the ANI22 web application, adjust input and output levels and perform a sound check. Refer to the help topics in the web application for additional infor- mation.
  • Page 4 ANI22 Audio Network Interface Shure Incorporated Outputs Inputs INPUT OUTPUT sig/clip power network network audio out1 encryption out2 reset XLR Model: Inputs Outputs INPUT OUTPUT reset ① Signal/Clip Indicators Each indicator corresponds to a single channel. Analog and digital gain adjustments are made through the web application.
  • Page 5 ANI22 Audio Network Interface Shure Incorporated Note: Logic connections are only featured on the block connector version. Block Connector Pin Assignments: Audio + Audio - Audio ground Logic Mute (sent from microphone) switch Logic LED (received by microphone) Logic ground...
  • Page 6 There are two hardware reset functions: Network reset (press button for 4-8 seconds) Resets all Shure control and audio network IP settings to factory defaults Full factory reset (press button for longer than 8 seconds) Restores all network and web application settings to the factory defaults.

  • Page 7: Rack Ear Configuration

    ANI22 Audio Network Interface Shure Incorporated Rack Ear Configuration A combination of up to 3 Audio Network Interfaces can be mounted in a single 19-inch rack space. The adjustable rack ears support mounting in a standard equipment rack or underneath a table.

  • Page 8: Installing Underneath A Table

    ANI22 Audio Network Interface Shure Incorporated Installing Underneath a Table 1. Hold the tray in the desired location under a table 2. Use a pencil to mark the location of the mounting holes on the table. 3. Drill 4 holes for the screws. The diameter of the holes in the tray are 7.1 mm.

  • Page 9: Signal Flow And Connections

    ANI22 Audio Network Interface Shure Incorporated Signal Flow and Connections Connections and Signal Flow INPUT OUTPUT sig/clip power network control audio gain power out1 network audio ULXD4 ENTER Digital Wireless Receiver encryption out2 EXIT SCAN push reset (GUI screen shot) control PC ①...

  • Page 10: Logic Applications

    Loudspeakers, amplifiers, or recording devices connect to the analog line output ④ Dante-enabled Equipment Dante microphones, such as the Shure Microflex Advance ceiling and table arrays connect to the network switch and can be routed using Dante Controller software. ⑤ Control CPU A computer connected to the network accesses the web application to control the channel levels and processing.

  • Page 11: Device Identification

    Audio is encrypted with the Advanced Encryption Standard ( AES -256), as specified by the US Government National Institute of Standards and Technology (NIST) publication FIPS-197. Shure devices that support encryption require a passphrase to make a connection. Encryption is not supported with third-party devices.

  • Page 12: Adjusting Output Levels

    ANI22 Audio Network Interface Shure Incorporated ⁃ Verify that the networked microphones or other Dante™ sources are operating at nominal output levels. ⁃ Levels for Microflex Advance microphones are adjustable through their web application. 2. Adjust the digital gain in the Network Interface web application: ⁃...

  • Page 13: Setting Filter Parameters

    ANI22 Audio Network Interface Shure Incorporated • Improve speech intelligibility • Reduce noise from HVAC systems or video projectors • Reduce room irregularities • Adjust frequency response for reinforcement systems Setting Filter Parameters Adjust filter settings by manipulating the icons in the frequency response graph, or by entering numeric values. Disable a filter using the check-box next to the filter.

  • Page 14: Custom Presets

    ANI22 Audio Network Interface Shure Incorporated Copy, Paste, Import, and Export Equalizer Channel Settings These features make it simple to use effective equalizer settings from a previous installation, or simply accelerate configuration time. Copy and Paste Use to quickly apply the same PEQ setting across multiple channels.

  • Page 15: Networking And Dante

    This device can connect with up to two Dante devices. The Shure MXA310, ANI22, ANIUSB-MATRIX and ANI4IN support multicast transmission. This means that flows can transmit to multiple devices -- as many as the network can support. If using unicast flows, each of these devices can connect with up to two Dante receiver devices.

  • Page 16: Command Strings (Common)

    When the ANI22 receives a GET or SET command, it will reply with a REPORT command to indicate the status of the parameter. REPORT is also sent by the ANI22 when a parameter is changed on the ANI22 or through the GUI.
  • Page 17 31 character name. Get Device ID Command String: The Device ID command does not contain the x channel character, as it is for the entire ANI22. < GET DEVICE_ID > Where yyyyyyyyyyyyyyyyyyyyyyyyyyyyyyy is 31 ANI22 Response: characters of the device ID. The ANI22 always <...
  • Page 18 Where x is ASCII channel number: 00 through 04. < GET xx AUDIO_MUTE > ANI22 Response: The ANI22 will respond with one of these strings. < REP xx AUDIO_MUTE ON > < REP xx AUDIO_MUTE OFF > Mute Channel Audio Command String: <...
  • Page 19 Toggle Channel Audio Mute Command String: < SET xx AUDIO_MUTE TOGGLE > ANI22 Response: The ANI22 will respond with one of these strings. < REP xx AUDIO_MUTE ON > < REP xx AUDIO_MUTE OFF > Get Device Audio Mute Command String: <...
  • Page 20 Where xx is ASCII channel number: 00 through 04. < GET xx AUDIO_OUT_CLIP_INDICATOR > ANI22 Response: The ANI22 will respond with one of these strings. < REP xx AUDIO_OUT_CLIP_INDICATOR ON > < REP xx AUDIO_OUT_CLIP_INDICATOR OFF > Get Audio IP Address Command String: <...
  • Page 21 < SET REBOOT > ANI22 Response: < REP REBOOT > Get Error Events Command String: Gets the last error that is loged on the ANI22. < GET LAST_ERROR_EVENT > ANI22 Response: Where yyyyyyyyyyyyyyy is up to 128 characters. < REP LAST_ERROR_EVENT {yyyyyyyyyyyyyyy} >...
  • Page 22 Command String: < GET AUDIO_SUMMING_MODE > ANI22 Response: < REP AUDIO_SUMMING_MODE OFF > The ANI22 will respond with one of these strings. < REP AUDIO_SUMMING_MODE 1+2 > < REP AUDIO_SUMMING_MODE 3+4 > < REP AUDIO_SUMMING_MODE 1+2/3+4 > Set Audio Summing Mode Command String: <...

  • Page 23: Important Product Information

    The CE Declaration of Conformity can be obtained from Shure Incorporated However, there is no guarantee that interference will not occur in a particular or any of its European representatives.

  • Page 24: Furnished Accessories

    Hardware kit (XLR model) 90A29254 Hardware kit (block connector model) 90B33522 Mounting Bracket (1/3 rack unit) 53A27742 Optional Accessories and Replacement Parts 19" rack tray CRT1 Shure Incorporated 5800 West Touhy Avenue Niles, IL 60714-4608 USA Phone: +1-847-600-2000 Email: info@shure.com 24/24...
