Installing Underneath a Table

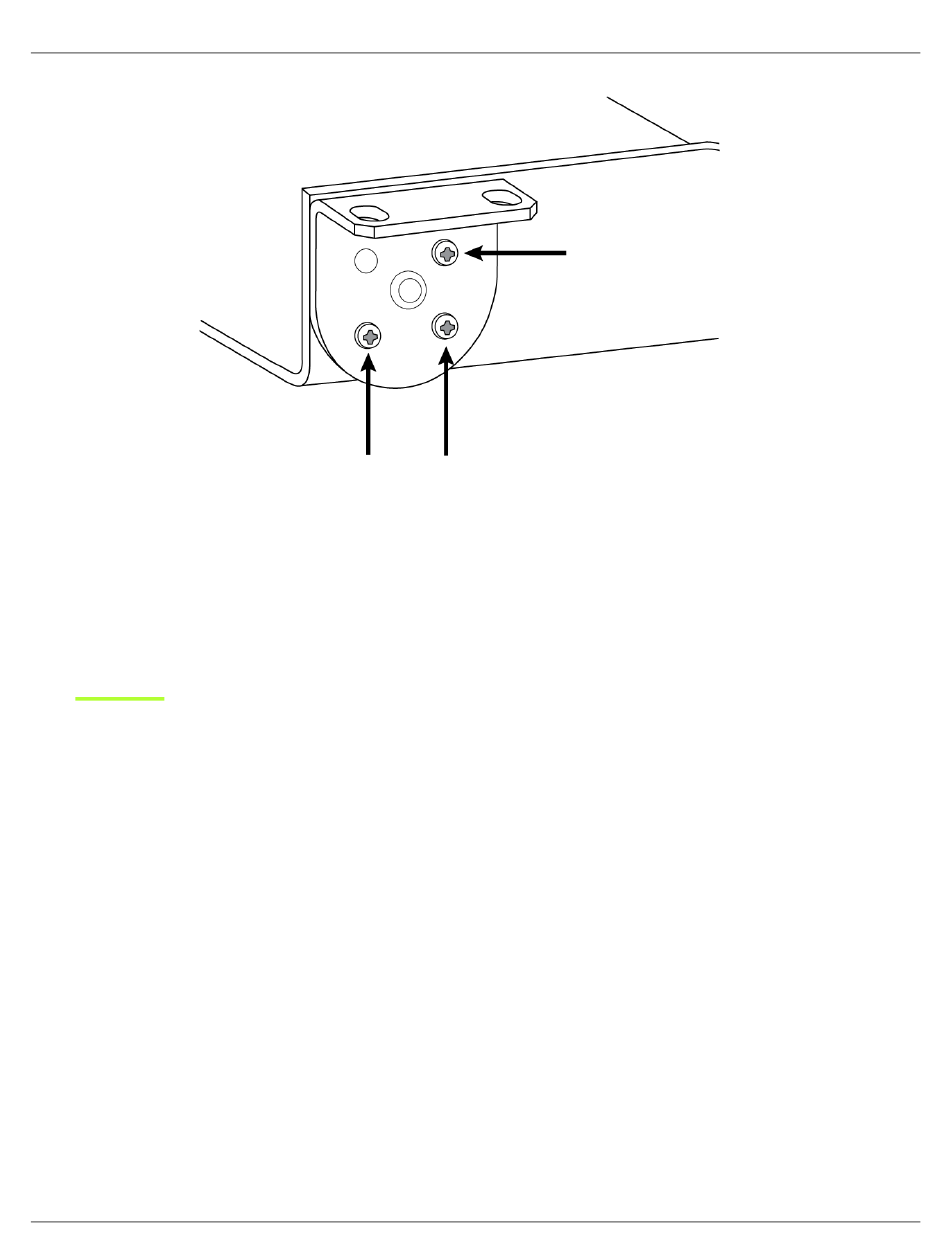

1. Hold the tray in the desired location under a table.
2. Use a pencil to mark the location of the mounting holes on the table.
3. Drill 4 holes for the screws. The diameter of the holes in the tray are 7.1 mm.
4. Install the components into the tray.
5. Install with 4 screws to secure the tray underneath the table.

Connections and Signal Flow

The ANIUSB-MATRIX has 4 Dante inputs and 2 Dante outputs. You can route any input to any output and adjust crosspoint
gain using the matrix mixer.
The ANIUSB-MATRIX has 2 Dante transmit flows.
Best Practices
• For best results, route 1 microphone to the ANIUSB-MATRIX. If using multiple microphones in a space, use a device with
an automixer (such as a
• Use Shure Designer's auto route workflow
and other settings.
These are some of the devices that you can connect to the ANIUSB-MATRIX:
Learn more about Dante
P300 or IntelliMix Room).
to quickly set up Dante audio routes, mute control routes, matrix mixer routes,
flows.
