TRASSIR TR-D2153IR6 Quick Start Manual

TRASSIR TR-D2153IR6 Quick Start Manual

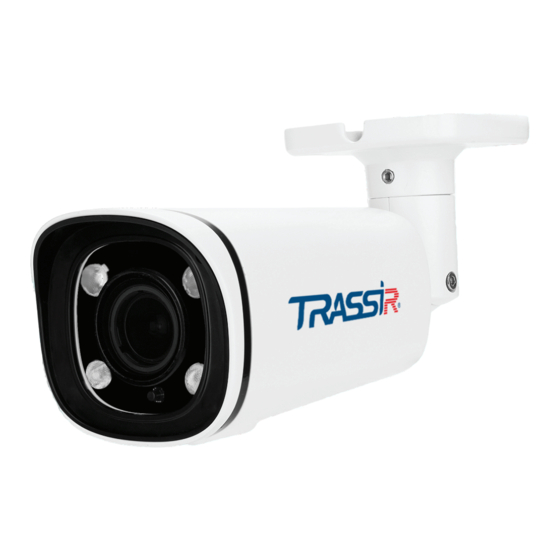

Outdoor ir network camera
Hide thumbs Also See for TR-D2153IR6:

Advertisement

Quick Links

Specification
Model
TR-D2153IR6
Image sensor
1/2.8" CMOS 5Мп
Resolution
5MP(2592x1944)
4MP(2592x1520)
3MP(2304x1296)
Frame rate
5MP@15fps
4MP@20fps
3MP@25fps
Electronic Shutter Speed
1/2 ~ 1/1 000 c
Day/Night Mode
Mechanical ICR
Sensitivity
0.002Lux (F1.8)
IR range
up to 60 m
Lens (mm)
2.7 - 13.5
Field of view (horiz./vert.)
98˚-38˚±5˚ / 73˚-30˚±5˚
WDR
Real WDR (120dB)
Digital noise reduction
Video compression
Н.265 / H.264
Bitrate
up to 8Mbps
Local storage
MicroSD up to 128Gb
Audio
Built-in microphone
1 in / 1 out
Alarm In / Out
Corridor mode
IVS
Human Detection
Line Crossing
Intrusion Detection
RTC
Power supply
PoE (802.3af) / 12V DC
Class PoE
Power consumption
DC: 6.84W
PoE: 7.2W
Case material
Dimensions (mm)
234.2 x 77.3 x 73.2
Weight Net/Gross (g)
635 / 830
Ingress protection
IP67, IK08
Lighting protection
TVS 4000V
Working temperature
-40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
3D DNR
1 / 1
Yes
No
3
Metall
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
TR-D2153IR6
Outdoor IR Network Camera
H.265
HEVC
IK08
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the TR-D2153IR6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TRASSIR TR-D2153IR6

  • Page 1 IK08 Weight Net/Gross (g) 635 / 830 Ingress protection IP67, IK08 Here is the confirmation form for warranty assurance Lighting protection TVS 4000V Working temperature -40°C … +60°C Note: read user manual before using Website: www.trassir.com For any inquiry: info@trassir.com...
  • Page 2 ** Device must be grounded 2. Set IP address of a camera using fast configuration utility which could be downloaded from www.trassir.com. 3. Change IP camera settings using TRASSIR professional software. Camera Package Find detailed instruction on camera settings in user manual which could be downloaded from our website www.trassir.com.
