TRASSIR TR-D3153IR2 Quick Start Manual

Specification
Model TR-D3153IR2
Image sensor 1/2.8" CMOS 5Мп
Resolution 5MP(2592x1944)
4MP(2592x1520)
3MP(2304x1296)
Frame rate
5MP@15fps
4MP@20fps
3MP@25fps
Electronic Shutter Speed 1/2 ~ 1/1 000 c
Day/Night Mode Mechanical ICR
Sensitivity 0.002Lux (F1.8)
IR range up to 25 m
Lens (mm) 2.7 - 13.5
Field of view (horiz./vert.) 98˚-38˚±5˚ / 73˚-30˚±5˚
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265 / H.264
Bitrate up to 8Mbps
Local storage
MicroSD up to 128Gb
Audio Built-in microphone
1 in / 1 out
Corridor mode
IVS Human Detection
Line Crossing
Intrusion Detection
RTC
Power supply PoE (802.3af) / 12V DC
Class PoE
Power consumption DC: 6.84W
PoE: 7.2W
Case material
Dimensions (mm) Ø116.1 x 90.9
Weight Net/Gross (g) 520 / 650
Ingress protection IP66, IK10
Lighting protection TVS 4000V
Working temperature -40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
3D DNR
Yes
No
3
Metall
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance

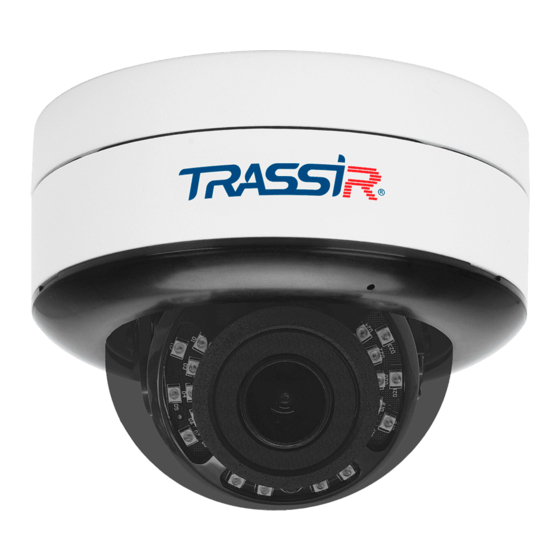

TR-D3153IR2
Outdoor IR Network Camera
H.265
HEVC
IK10
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
