TRASSIR TR-D3121IR2 Quick Start Manual

Specification
Model TR-D3121IR2
Image sensor 1/2.7" CMOS 2MP
Resolution FullHD(1920x1080)
Frame rate FullHD@25fps
Electronic shutter speed 1/2 ~ 1/1 000 s
Day/Night mode
Mechanical ICR
Sensitivity 0.005Lux (F1.8)
IR range
up to 25 m
Lens (mm)
Field of view (horiz./vert.) 2.8мм: 100˚±5˚ / 54˚±5˚
3.6мм: 82˚±5˚ / 44˚±5˚
Tilt/Rotation Range Rotation: 0°–340°
Tilt: 0°–70°
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265+ / Н.265 / H.264+ / H.264
Bitrate up to 8Mbps
Local storage MicroSD up to 128GB
Audio
Built-in microphone
Corridor mode
IVS
Human detection
Line crossing
Intrusion detection
Power supply PoE (802.3af) / 12V DC
PoE Class
Power consumption DC: 3.6W
PoE: 3.9W
Case material
Dimensions (mm) Ø116.1 x 90.9
Net/Gross weight (г) 450 / 580
Ingress protection IP66, IK10
Lightning protection TVS 4000V
Working temerature -40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8 / 3.6
3D DNR
Yes
3
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance

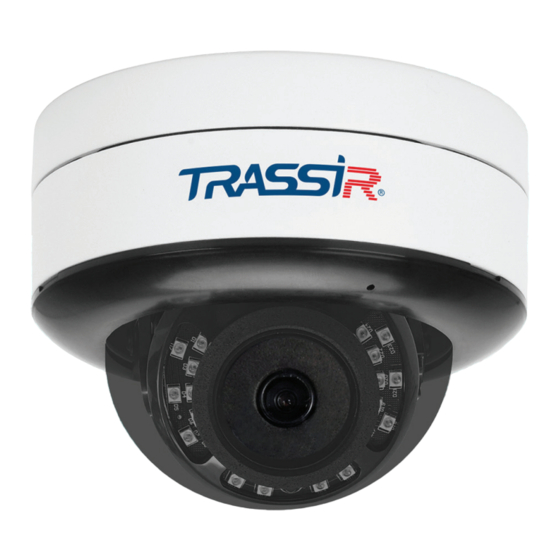

TR-D3121IR2
Outdoor IR Network Camera
H.265
2MP
HEVC
IK10
-40°
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
