TRASSIR TR-D6254IR15 Quick Start Manual

Specification
Model TR-D6254IR15
Image sensor 1/2.8" CMOS 5MP
Resolution 5MP(2560x1920)
4MP(2560x1440)
Frame rate 5MP@20fps
4MP/3MP/FullHD@25fps
Electronic shutter speed 1/1 ~ 1/30 000 sec
"Day/Night" mode Mechanical ICR
Sensitivity 0.005Lux (F1.3) / 0Lux(IR on)
IR range
up to 150 meters
Lens (мм) 4.9-156 mm, F1.35-F4.4
Field of view (horiz./vert.)
54.5˚ - 2.24˚ / 30.3˚ - 1.27˚
Optical zoom
Digital zoom
Pan/Tilt Range Pan: 0° ~ 360° (infinite)
Tilt: -10° ~ 90° (autoflip to 180°)
Manual Control Speed Pan: 0.1°/s ~ 300°/s
Tilt: 0.1°/s ~ 200°/s
Preset Speed Pan: 400°/s
Tilt: 300°/s
Auto focus
WDR Real WDR (120dB)
Digital noise reduction 2DNR / 3DNR
Video compression Н.265+ / Н.265 / H.264+ / H.264
Bitrate
up to 20Mbps
Local storage MicroSD up to 256GB
Audio Two-way audio channel
ROI Yes (up to 8 zones)
IVS
RTC
Alarm IN/OUT
Power supply PoE+ (802.3at) / 24V AC (3A)
PoE Class
Power consumption 24W (IR on)
Lightning protection TVS 6000V
Case material Aluminium
Dimensions (mm) 478.4 x 295.1 x 185.7
Weight Net/Gross (g)
3900 / 7010
Ingress protection
Working temperature -40°C ... +70°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
x32
x16
Yes
Yes
Yes
2 / 1
4
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
IP66

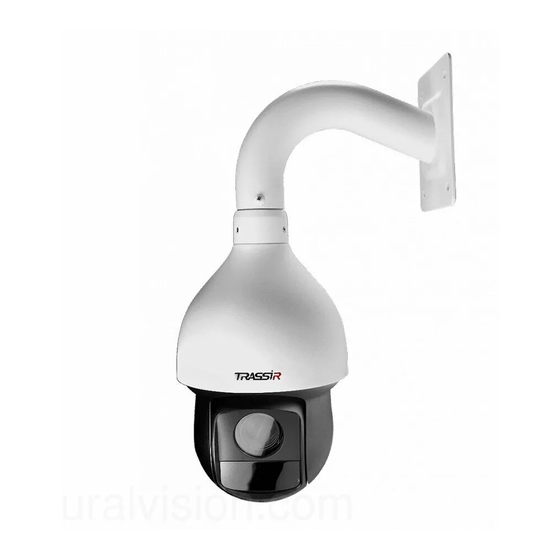

TR-D6254IR15
5MP IR outdoor high-speed PTZ camera
120dB
5MP
150m
H.265+
HEVC
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
ZOOM
x32
