TRASSIR TR-D2221WDCL4 Manual

Specification
Model TR-D2221WDCL4
Image sensor 1/2.8" CMOS STARVIS 2MP
Resolution FullHD(1920x1080)
Frame rate 50Hz: FullHD@25fps
60Hz: FullHD@30fps
Electronic shutter speed 1/2 ~ 1/1 000 s
Day/Night mode
Sensitivity 0.0015Lux (F1.0) / 0Lux (LED on)
LED range up to 40 m
(neutral white)
Stroboscope
Lens (mm)
Field of view (horiz./vert.) 80˚ / 43˚
Axes setting Pan: 0˚-360˚
Tilt: 0˚-105˚
Rotation: 360˚
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265+ / Н.265 / H.264
Bitrate up to 8Mbps
Local storage MicroSD up to 128GB
Audio Built-in microphone
Alarm In / Out
Corridor mode
IVS
Power supply PoE (802.3af) / 12V DC
PoE Class
Power consumption DC: 5.4W
PoE: 6.2W
Case material
Dimensions (mm) 184.7 x 68 x 63
Weight Net/Gross (g) 480 / 580
Protection
Power surge TVS 4000V
suppressor
Working temperature -40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
FTC
Yes
4.0
3D DNR
1 out
1 / 1
Yes
Yes
0
Metal
Data ___________________________ Stamp ___________________________
IP67
Here is the confirmation form for warranty assurance

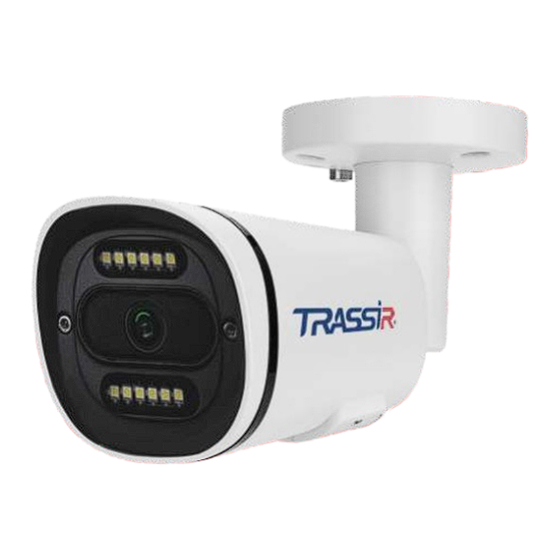

TR-D2221WDCL4
Outdoor Full Time Color Camera
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
Full Time
Color
-40°
