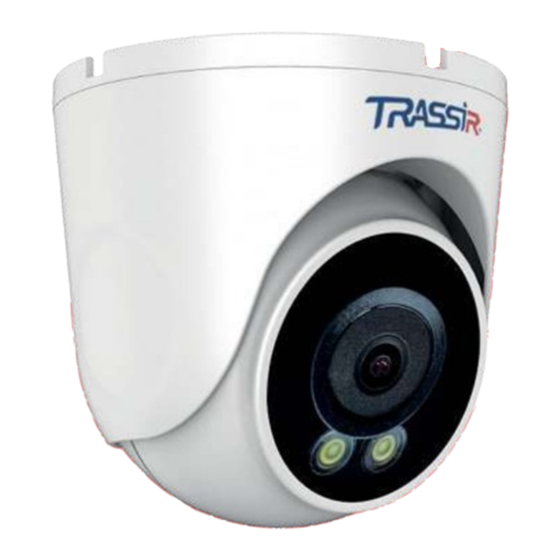

TRASSIR TR-D8121CL2 Manual

Specification
Model
TR-D8121CL2
Image sensor
1/2.8" CMOS 2МP
Resolution
FullHD(1920x1080)
Frame rate
FullHD@25fps
Electronic shutter speed
1/2 ~ 1/1 000 s
Day/Night mode
Sensitivity
0.0015Lux (F1.0) / 0Lux (LED on)
LED range
up to 25 m
(neutral white)
Lens (mm)
Field of view (horiz./vert.)
2.8 mm: 105˚ / 54˚
4 mm: 81˚ / 44˚
Axes setting
Pan: 0˚-360˚
Tilt: 0˚-110˚
Rotation: 0˚-360˚
WDR
Real WDR (120dB)
Digital noise reduction
Video compression
Н.265+ / Н.265 / H.264+ / H.264
Bitrate
up to 8Mbps
Local storage
MicroSD up to 128GB
Audio
Built-in microphone
Corridor mode
IVS
Power supply
PoE (802.3af) / 12V DC
PoE Class
Power consumption
DC: 3.5W
PoE: 3.36W
Case material
Dimensions (mm)
Ø93 x 92.2
Weight Net/Gross (g)
400 / 490
Protection
Power surge
TVS 4000V
suppressor
Working temperature
-40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
FTC
2.8 / 4.0
3D DNR
Yes
Yes
0
Metal
IP66
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
TR-D8121CL2
Outdoor Full Time Color Camera
-40°
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
Full Time
Color
