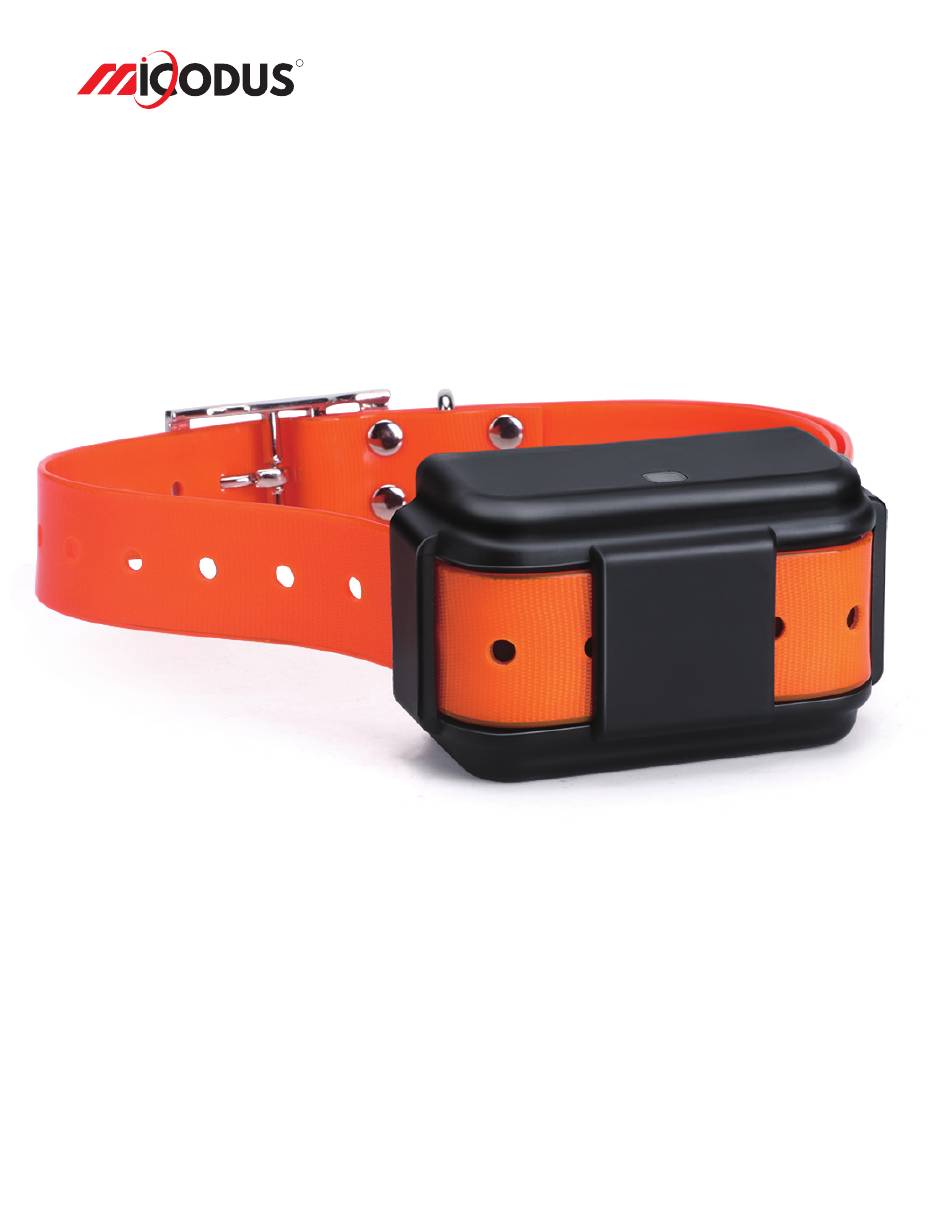

4G MP50G User Manual V1.0
Learn how to set up your new MiCODUS Tracker
Copyright ©2023 MiCODUS | All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP50G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MICODUS MP50G

Summary of Contents for MICODUS MP50G

  • Page 1 4G MP50G User Manual V1.0 Learn how to set up your new MiCODUS Tracker Copyright ©2023 MiCODUS | All Rights Reserved...

  • Page 2: Main Features

    Maps Link Area Data Charge Fence Alarm Sound Light Alarm Alarm Alarm After Calling Re-uploading 2.Specifications Model MP50G Weight 147.6g Device Information Dimensions 82mm(L)*37mm(W)*48mm(H) Battery Built-in 3.7V 4000mAh Polymer Battery Working Voltage 3.4-4.5V DC Working Current 12V/Average 60mA Working Parameters...
  • Page 3 3.Product Stucture Power GNSS Celluar SIM Card Magnetic slot Charge ON/OFF LED Indicator Buzzer Hole Switch 72CM 4.How to manage the tracker to get online? SIM card requirements Step 1 Normal SIM 1MB Free Roaming 1MB Free Roaming Prepaid Data Unavailable Prepaid Data Unavailable...
  • Page 4 Please get a suitable SIM card from your local place. The SIM card must meet below points: It must be compatible with the 4G LTE or 2G GSM network Please enable SMS, call, internet data traffic of the SIM card Enable the caller ID display feature Remove the PIN code Use Nano size SIM card for the tracker...

  • Page 5: Indicator Status Description

    Note: The APN information is very important, it must 100% correct to match with the sim card of the tracker, if you configured wrong APN, the tracker also will reply "SET APN ok" but it will can't get online! Step 4 Indicator status description Event State...

  • Page 6: Functions Explanation

    6. Functions Explanation For example: a. Working Modes Setting MP50G MODE,A,T1,T2# * SMS command format : MODE,1,10,3600# A=1/2/3, 1： Realtime tracking mode 2： Regular SET MODE OK reporting mode 3: Power saving mode; Default mode: 1 A=1 (For example: MODE,1,10,3600# means the tracker will work under mode 1, it will upload every 10s under moving status and 3600s under static status) T1：upload interval of GPS data in moving status,unit: second,10-3600s;...

  • Page 7: Query Commands

    7. Full SMS Commands List Query Commands Functions Command Format Explanation Device Reply Example： ID: ID number of the tracker IMEI: IMEI number of the tracker Version Inquiry VERSION# ICCID: The ICCID number of the SIM card in the tracker VERSION: The firmware version of the tracker Device Reply Example：...

  • Page 8: Setting Commands

    Example: APN,CMNET# (if no APN User & APN Password) APN,APN name,APN user, APN,internet,internet,internet# (if with APN User & APN APN Setting APN password# Password) If set with Domain Name: SERVER,1,d.micodus.net,7700# SERVER,1,Domain,Port# Server Setting If set with IP: SERVER,0,47.254.77.28,7700# SERVER,0,IP,Port# Restore...
  • Page 9 Example: CENTER,A,+8613800138000# CENTER,A, Note: Please set up the center number with the Add Center Number center number# country code as prefix! Delete Center Number CENTER,D# DEL CENTER OK Example: FENCE,1,500,22.65897,114.985231# ( Means set up the fence 1 as center dot 22.65897,114.985231, radius 500m ) FENCE,2,300,,# ( Means set up the fence 2 with the center dot as the last GPS fixed position, radius:...

  • Page 10: Alarm Commands

    A=1/2/3, 1： Realtime tracking mode 2： Regular reporting mode 3: Power saving mode; Default mode: 1 A=1 (For example: MODE,1,10,3600# means the tracker will work under mode 1, it will upload every 10s under moving status and 3600s under static status) T1：upload interval of GPS data in moving status,unit: second,10-3600s;...
  • Page 11 Example: FENCE,ON,2,1# ( Means the fence 2 alarm already been enabled, once the device enter or leave the fence 2 the alarm message will be sent via server and SMS) Set Up FENCE,A,S,M# A=ON/OFF, open or close over speed alarm, default： GEO-Fence Alarm S=1～4, fence number M=0/1/2, way of alarm, 0 : SERVER only, 1:...

  • Page 12: Troubleshooting

    9. Any Questions? E-mail: support@micodus.com Skype: MiCODUS 10. Download the APP Search "MiCODUS" in iOS APP store or Google Play Store, or just scan the QR code as below to download MiCODUS APP: Download on the APP Store HarmonyOS Download for...
