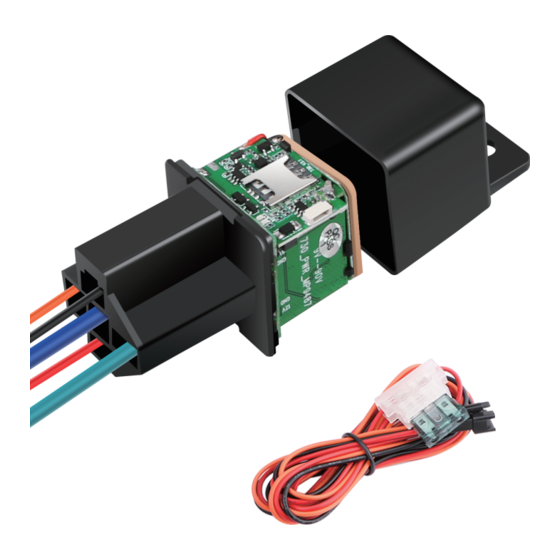

MICODUS MV730 User Manual

Hide thumbs Also See for MV730:
Table of Contents

Advertisement

Quick Links

R

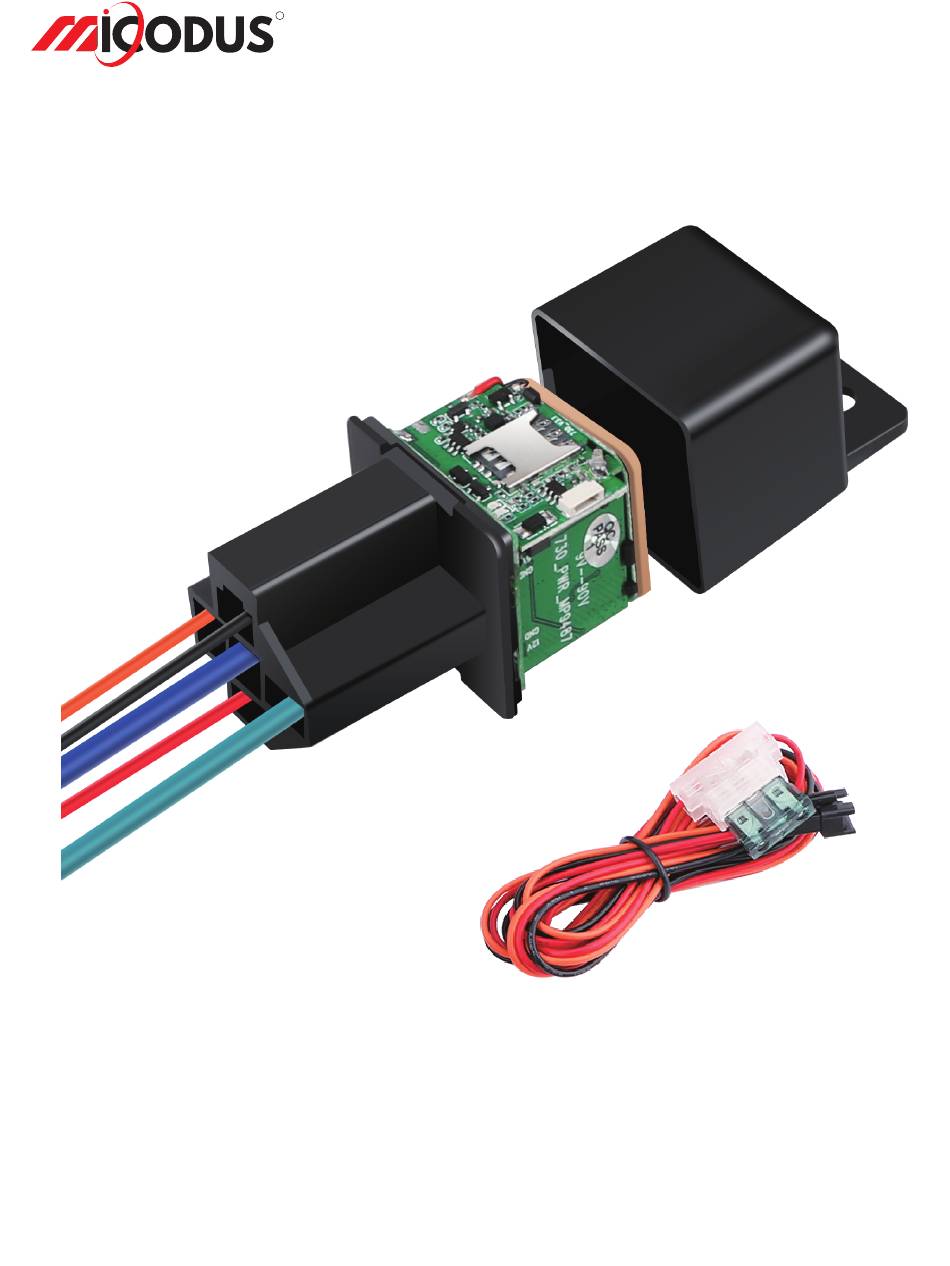

MV730 User Manual V2.0
Learn how to set up your new MiCODUS Tracker
Copyright ©2022 MiCODUS | All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MV730 and is the answer not in the manual?

Questions and answers

Related Manuals for MICODUS MV730

Summary of Contents for MICODUS MV730

  • Page 1 MV730 User Manual V2.0 Learn how to set up your new MiCODUS Tracker Copyright ©2022 MiCODUS | All Rights Reserved...

  • Page 2: Main Features

    Overspeed Auto Arm Tow Alarm Geo-fence Disconnect Alarm OFF Alarm Tracking Platform by ACC Alarm 2.Specifications Model MV730 Device Information Weight Dimensions 31mm(L) * 31mm(W) * 57mm(H) Working Voltage DC 9-90V Working Current <30 mA Sleep Current <15 uA Working Parameters Battery Capacity 3.7V 80mAh Lion Polymer battery...
  • Page 3 3.How to manage the tracker to get online? Step 1 Normal SIM Please get a suitable SIM card from your local place. The SIM card must meet below points: It must be compatible with the 2G GSM network Please enable SMS, call, internet data traffic of the SIM card Enable the caller ID display feature Remove the PIN code Use Nano size SIM card for the tracker...
  • Page 4 Wiring Step 3 Fuel Pump Fuel Pump Line FUEL PUMP LINE VOLTAGE: 5V-30V 9-90V DC < 60A FUEL PUMP LINE CURRENT: NOTE : After installed SIM card correctly , it is very important to connect the tracker with external power no less than 12V for power supply before operation! Configure APN Step 4...

  • Page 5: Package Content

    Please follow with the quick user guide carefully! a. Vibration Alert: For example: This vibration alert function just work under stationary MV730 status. How to use this function: admin123456 0086134******** * Set admin number by this sms command: admin123456+space+mobile number with country code...
  • Page 6 * Keep the device under stationary status more than 5min to let it enter into sleep arm mode; * Vibrate the device then the tracker will send the vibration alarm messages For example: b. Cut Off Fuel/Resume Fuel MV730 * Set admin number by this sms command: admin123456+space+mobile number with country code admin123456 0086134********...

  • Page 7: Troubleshooting

    6. Installation Recomendation Under Front Dash Inside Door Pedal Inside the head light Inside the taillight component Inside the front cover or plastic Under the pedal 1) The decice should face up to the sky. 2) Metal therma barrier of heating layer of the windshield affects the signal. 7.
  • Page 8 Micodus tracking platform's IP: 47.254.77.28; IP&Port +space+port Port: 7700 SZCS,123456,DOMAIN=d.micodus. MiCODUS server domain: d.micodus.net, Port: 7700 Domain net:7700 V:A: Indicates the device has GPS signal; V:V: Indicates the device doesn't have GPS signal; 2019-11-26 10:17:01: Date and Time; S: 000km/h: Speed of the tracker Bat:5: Battery level of the backup battery of the tracker, it has 6 levels: "6"...
  • Page 9 Functions Command Format Explanation param1 firmware version、ID、IP、port、domain、APN Parameter Query admin number, SOS number,move distance, overspeed, param2 auto arm time, auto disarm time, alarm interval BAT:10 GPRS: GSM: GPS:A/V ACC:on/off oil:on/off Status status power:on/off 111 or SF Disarm 000 or CF Cut Off Fuel Resume Fuel Movement Alarm...

  • Page 10: Any Questions

    9. Any Questions? E-mail: support@micodus.com Skype: MiCODUS 10. Download the APP Search "MiCODUS" in iOS APP store or Google Play Store, or just scan the QR code as below to download MiCODUS APP: Download on the APP Store Download for...
