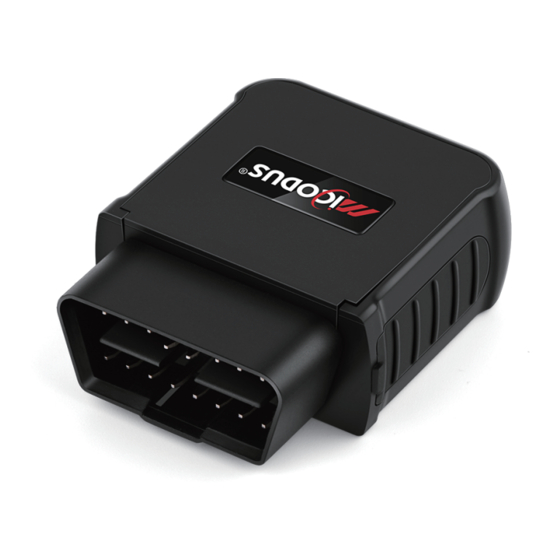

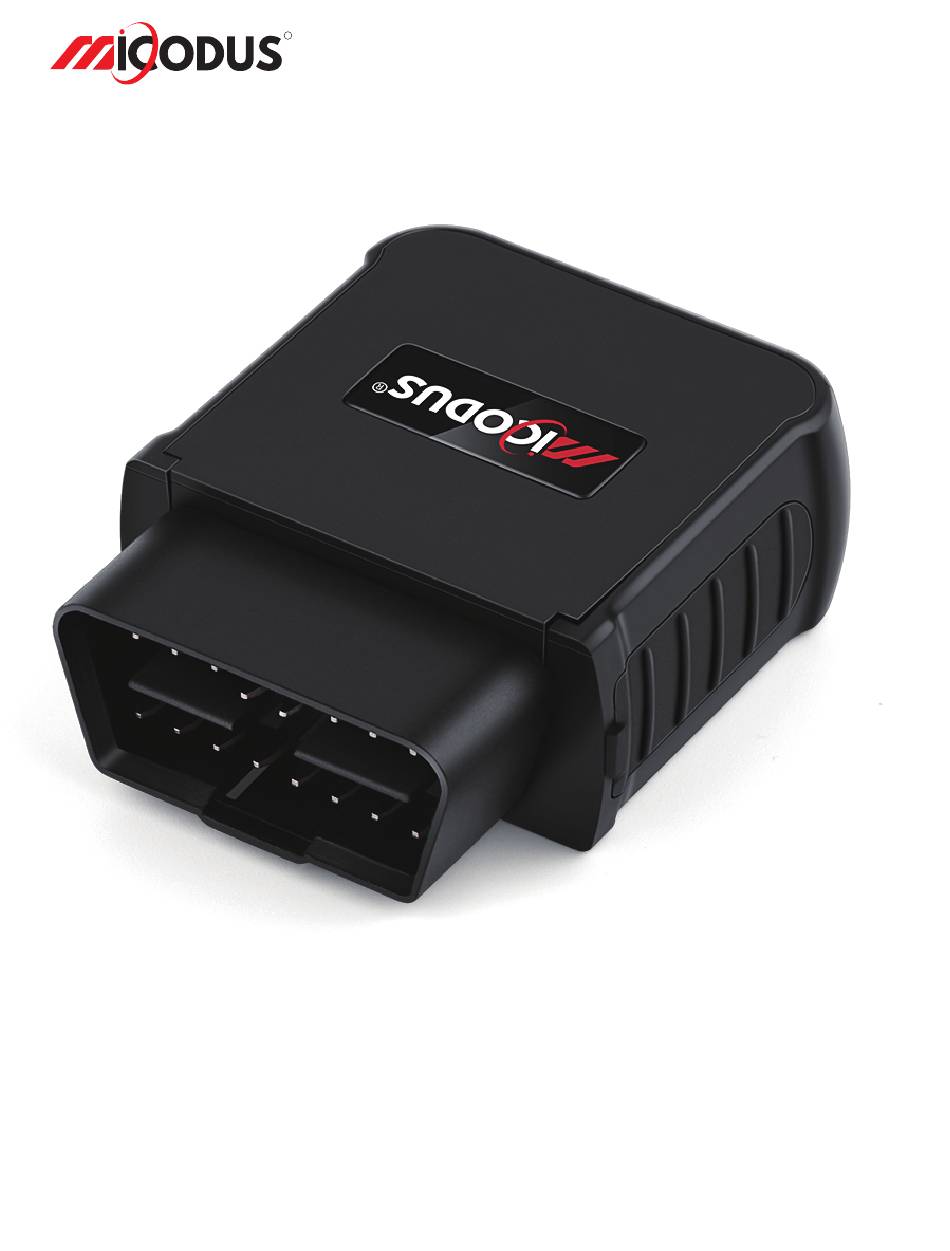

- Page 1 MV55G User Manual V1.0 Learn how to set up your new MiCODUS Tracker Copyright ©2022 MiCODUS | All Rights Reserved...
-
Page 2: Main Features
Movement Vibration Engine Start/ Plug Out Geo-fence Alarm Alarm Flameout Alarm Alarm 2.Specifications Model MV55G Weight Device Information Device Information Dimensions 59mm(L) * 45mm(W) * 22mm(H) Battery Working Time Tracking Mode：1-2 hours Working Voltage DC 9V - 50V Battery Capacity 3.7V 140mAh Lion Polymer battery... -
Page 3: Activate Device
Positioning Type GPS+BEIDOU+LBS GPS Antenna Built-in Cold Start Hot Start GNSS Specifications Tracking sensitivity -162 dBm GPS Channels Position Accuracy 5-10m 3. Activate Device Install the SIM card via the correct direction as below: Normal SIM State Event Charging Solid POWER LED (RED) Charger inserted and battery has been fully charged Dark... -
Page 4: Package Content
5. Functions Explanation Please follow with the quick user guide carefully! a. Vibration Alert： For example: This vibration alert function just work under MV55G stationary status.How to use this function: SOS,A,12345678910# * First Step: Configure SOS numbers for SET SOS NUMBER OK the tracker by this sms command：... - Page 5 SMS, call and tracking platform. For example: * First Step: Configure SOS numbers for MV55G the tracker by this sms command： SOS,A,1st number, 2nd number,3rd number# SOS,A,12345678910# 3 SOS numbers supports at the most.
- Page 6 6. Installation Recomendation Where is the OBD interface? Where is the OBD interface? Most of the car‘s OBD interface is located in A and B, Most of the car's OBD interface is located in A and B, A small part of the car will be in C,D and E. A small part of the car will be in C,D and E.
-
Page 7: Troubleshooting
Command Format Explanation APN,CMNET# (if no name & Password) APN Setting APN,Network name[,name,password]# APN,internet,internet,internet# (if with name & Password) If set with Domain Name: SERVER,1, SERVER,1,d.micodus.net,7700# Domain,Port# Server Setting If set with IP: SERVER,0,IP,Port# SERVER,0,47.254.77.28,7700# Check IMEI IMEI# Restore factory settings... - Page 8 Functions Command Format Explanation Version Inquiry VERSION# Parameter Inquiry PARAM# BATTERY: XX% (Built-in Battery Power Percent) INTERNET: CLOSED (No Network) FAILED (Conn- ecting Network or Failure) SUCCESS (Connected to Network） NET: NONE (No GSM Signal),HIGH / MED / LOW (Signal Strength) GPS: CLOSED (GPS Module Closed) , FIXED, N (Positioned and satellite number), UNFIX, Status Inquiry...
- Page 9 Functions Command Format Explanation Delete Center Number CENTER,D# Set 3 numbers at a time: SOS,A,13800138000,1380013800 1,13800138002# Set the first numberseparately: Add SOS Administ- SOS,A,1st number, SOS,A,13800138000# rator Number 2nd number,3rd number# Set the second number separately: SOS,A,,13800138001# Means to set 3rd number separately: SOS,A,,,13800138002# Directly delete the number: SOS,D,13800138000#...
-
Page 10: Any Questions
9. Any Questions? E-mail: support@micodus.com MiCODUS Skype: 10. Download the APP Search "MiCODUS" in iOS APP store or Google Play Store, or just scan the QR code as below to download MiCODUS APP: Download on the APP Store Download for...
