Summary of Contents for MICODUS MV790

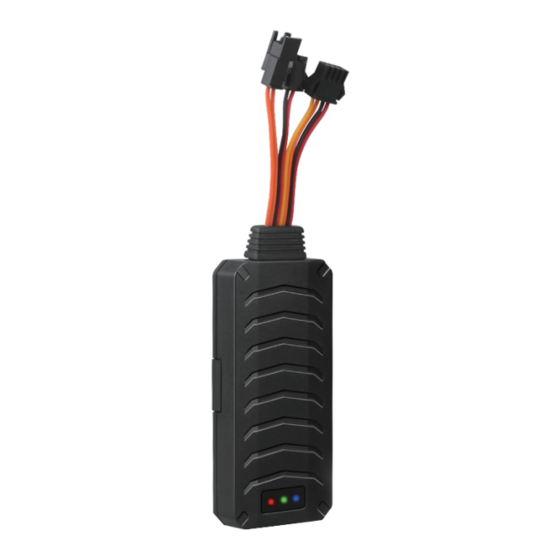

- Page 1 MV790 User Manual V1.0 Learn how to set up your new MiCODUS Tracker Copyright ©2022 MiCODUS | All Rights Reserved...
-
Page 2: Main Features
Engine On/ Lifetime Free Tow Alarm Voice Monitor Geo-fence Disconnect Alarm Panic Button OFF Alarm Tracking Platform 2.Specifications Model MV790 Weight 48.9g Device Information Dimensions 90mm(L) * 40mm(W) * 12mm(H) Backup Battery 1-2 hours Working Time Working Voltage DC 9-90V Working Current <30 mA... -
Page 3: Wiring Diagram
External lnterface SOS,Microphone 3.Wiring diagram Charging LED GSM LED GPS LED... -
Page 4: Activate Device
4. Activate Device Install the SIM card via the correct direction as below: Normal SIM State Event Charging Solid POWER LED (RED) Charger has not been inserted Dark Searching for network Solid GSM LED (GREEN) Network has been registered Flash every 1 second GPS is in fixing Solid GPS LED (Blue) -
Page 5: Functions Explanation
5. Activate Device GPS Main Unit MV790 Function Cable Microphone Cable(Optional) SOS Button Cable(Optional) Relay User Guide Genuine Packing Box 6. Functions Explanation Please follow with the quick user guide carefully! a. Voice Monitor: For example: * Set admin number by this sms command:... - Page 6 For example: c. Cut Off Fuel/Resume Fuel * Set admin number by this sms command: MV790 admin123456+space+mobile number with country code admin123456 0086134******** * Send this sms command from the admin number to cut admin ok fuel:555 NOTE :About the cut off fuel function, firstly please cut oil ok make sure the fuel circuit is connecting to main power.
-
Page 7: Troubleshooting
8. Troubleshooting Type Check the APN and settings. Unable to connect to Check whrther the data service of SIM card is enabled. tracking platform Check the balance of SIM card. Check whether external power is still connected. Tracker shows offline Check if the vehicle entered netword blind area. - Page 8 Micodus tracking platform's IP: 47.254.77.28; IP&Port +space+port Port: 7700 SZCS,123456,DOMAIN=d.micodus. MiCODUS server domain: d.micodus.net, Port: 7700 Domain net:7700 V:A: Indicates the device has GPS signal; V:V: Indicates the device doesn't have GPS signal; 2019-11-26 10:17:01: Date and Time; S: 000km/h: Speed of the tracker Bat:5: Battery level of the backup battery of the tracker, it has 6 levels: "6"...
- Page 9 Functions Command Format Explanation If device keep stationary more than 5 minutes the device will enter into sleep mode automatically, sms commands and sleep123456 time call can wake up it If device keep stationary more than 5 minutes the device will Sleep Mode sleep123456 shock enter into sleep mode automatically, vibration, sms...
-
Page 10: Any Questions
10. Any Questions? E-mail: support@micodus.com Skype: MiCODUS 11. Download the APP Search "MiCODUS" in iOS APP store or Google Play Store, or just scan the QR code as below to download MiCODUS APP: Download on the APP Store Download for...
