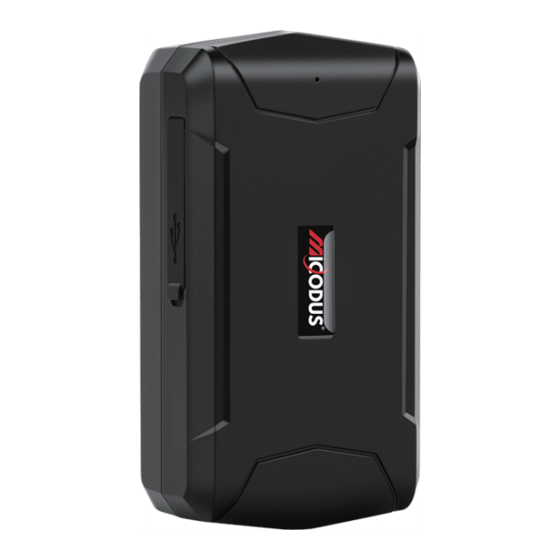

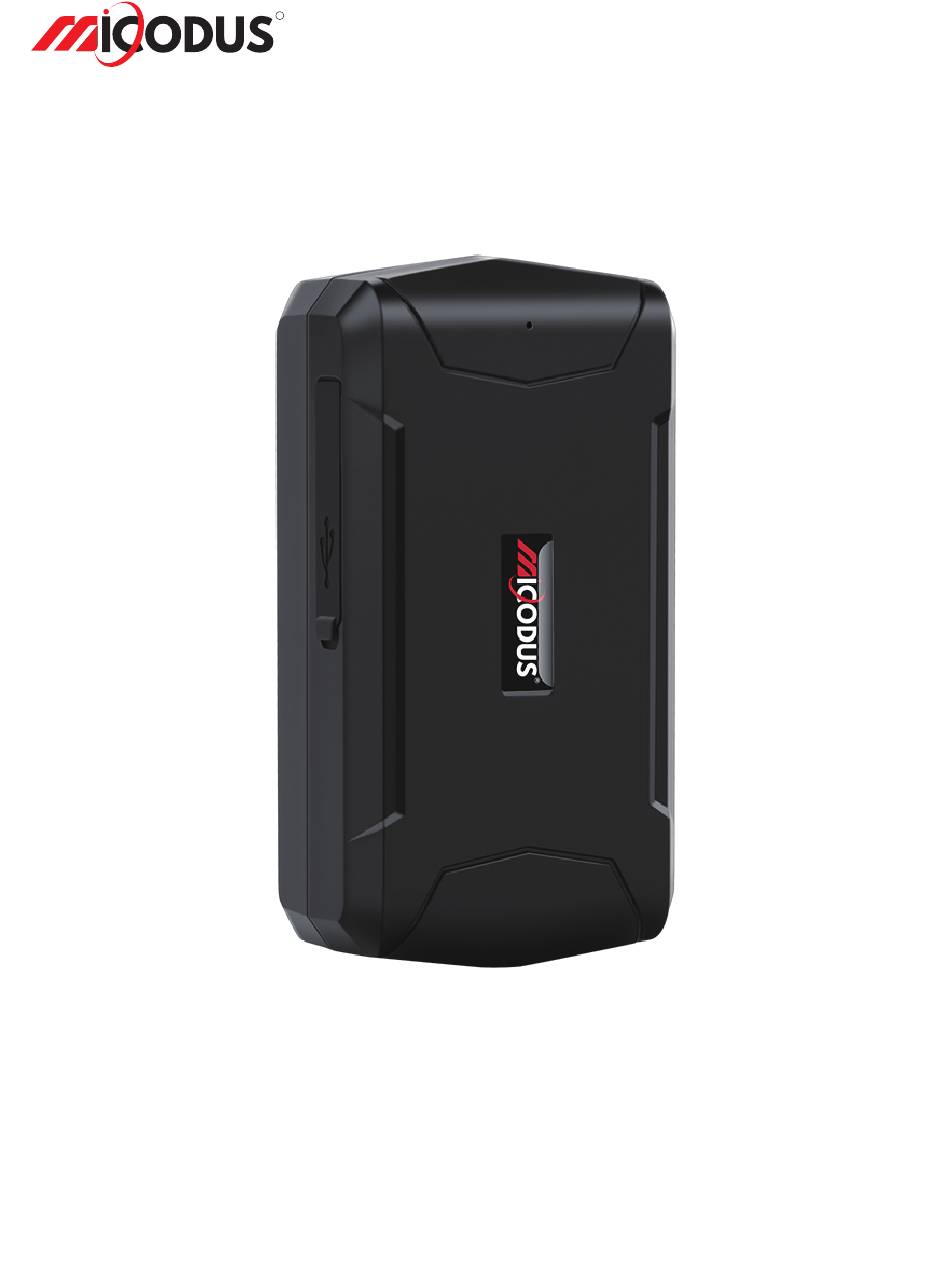

- Page 1 ML500 User Manual V2.0 Learn how to set up your new MiCODUS Tracker Copyright ©2022 MiCODUS | All Rights Reserved...
-
Page 2: Main Features
Teardown Temperature Low battery Uploading Alarm Alarm Alarm Monitor alert 2.Specifications Model ML500 Weight 146.6g Device Information Dimensions 92mm(L) * 47mm(W) * 30mm(H) Charging Time Around 7 hours Battery Working Time Tracking Mode, 1 minutes’ reporting: 7-15 days Working Voltage DC 3.4V - 4.5V... -
Page 3: Activate Device
Position Accuracy 5-10m Scope 40℃ to 125℃ Temperature Sensor Accuracy ±1℃ External Interface Microphone, Light Sensor, Temperature Sensor 3. Activate Device Install the SIM card via the correct direction as below: Normal SIM State Event Charging Solid POWER LED (RED) Charger inserted and battery has been fully charged Dark Charger has not been inserted... -
Page 4: Package Content
Hard-Wired Car Charger (Optional) 5. Functions Explanation Please follow with the quick user guide carefully! a. Working modes setting For example: * ML500 has 3 working modes to meet different tracking ML500 demands, the setting command format is as below: MODE,A,T1,T2# MODE,1,10,3600#... - Page 5 Voice Monitor: For example: * Set center number by this sms command: ML500 CENTER,A,center number# CENTER,A,134********# * Switch the tracker to voice monitor mode by this sms command: MONITOR# SET CENTER NUMBER OK * Dial the sim number of the tracker from the center...
-
Page 6: Troubleshooting
6. Installation Recomendation ① Driving seat sundries box ② Front bumper ③ Door sundries box ④ Under the chassis ⑤ Rear windscreen ⑥ Rear bumper 7. Troubleshooting Type Check the APN and settings. Unable to connect to Check whrther the data service of SIM card is enabled. tracking platform Check the balance of SIM card. - Page 7 APN,CMNET# (if no name & Password) APN Setting APN,Network name[,name,password]# APN,internet,internet,internet# (if with name & Password) If set with Domain Name: SERVER,1, SERVER,1,d.micodus.net,7700# Domain,Port# Server Setting If set with IP: SERVER,0,IP,Port# SERVER,0,47.254.77.28,7700# A=old password, six digitals, digital range: 0-9, Revise the instruction PASSWORD,[A],[B]# default：000000;...
- Page 8 Functions Command Format Explanation GMT,E,8# (if no half time zone) GMT,Time zone orientation,Whole Time Zone Setting GMT,W,9,30# (if has half time zone) Time Zone[,Half Time Zone]# NOTE: Parameter : E / W; 0 ~ 12; 0/15/30/45 X=ON/OFF,default:ON; A=5~180 degrees,diversion ANGLEREP,[X][,A][,B]# angle degree, default: 30 degrees;B=2~5 seconds, Set the angle upload detecting time, default: 3 seconds.
- Page 9 Functions Command Format Explanation NOTE: After set this sleep mode, the device will SLEEP# enter into sleep mode automatically when the device keep stationary status more than 5min. Sleep Mode Setting SLEEP,OFF# NOTE: Before monitoring the voice around the device, Voice Monitor Mode MONITOR# the user must change the device to this monitor mode...
-
Page 10: Any Questions
9. Any Questions? E-mail: support@micodus.com Skype: MiCODUS 10. Download the APP Search "MiCODUS" in iOS APP store or Google Play Store, or just scan the QR code as below to download MiCODUS APP: Download on the APP Store Download for...
Need help?
Do you have a question about the ML500 and is the answer not in the manual?
Questions and answers

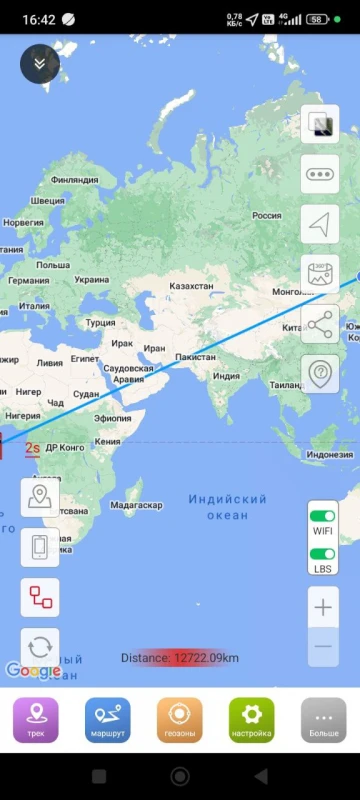

一切正常，数据已传输，但在地图上的应用程序中，传感器的坐标却显示错误。ML500
