Summary of Contents for MICODUS MV33

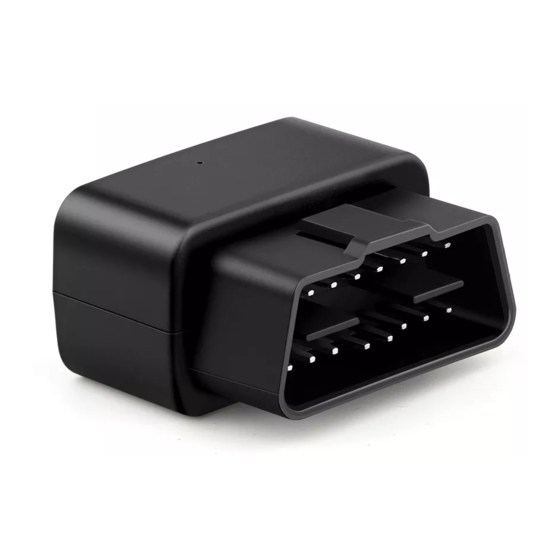

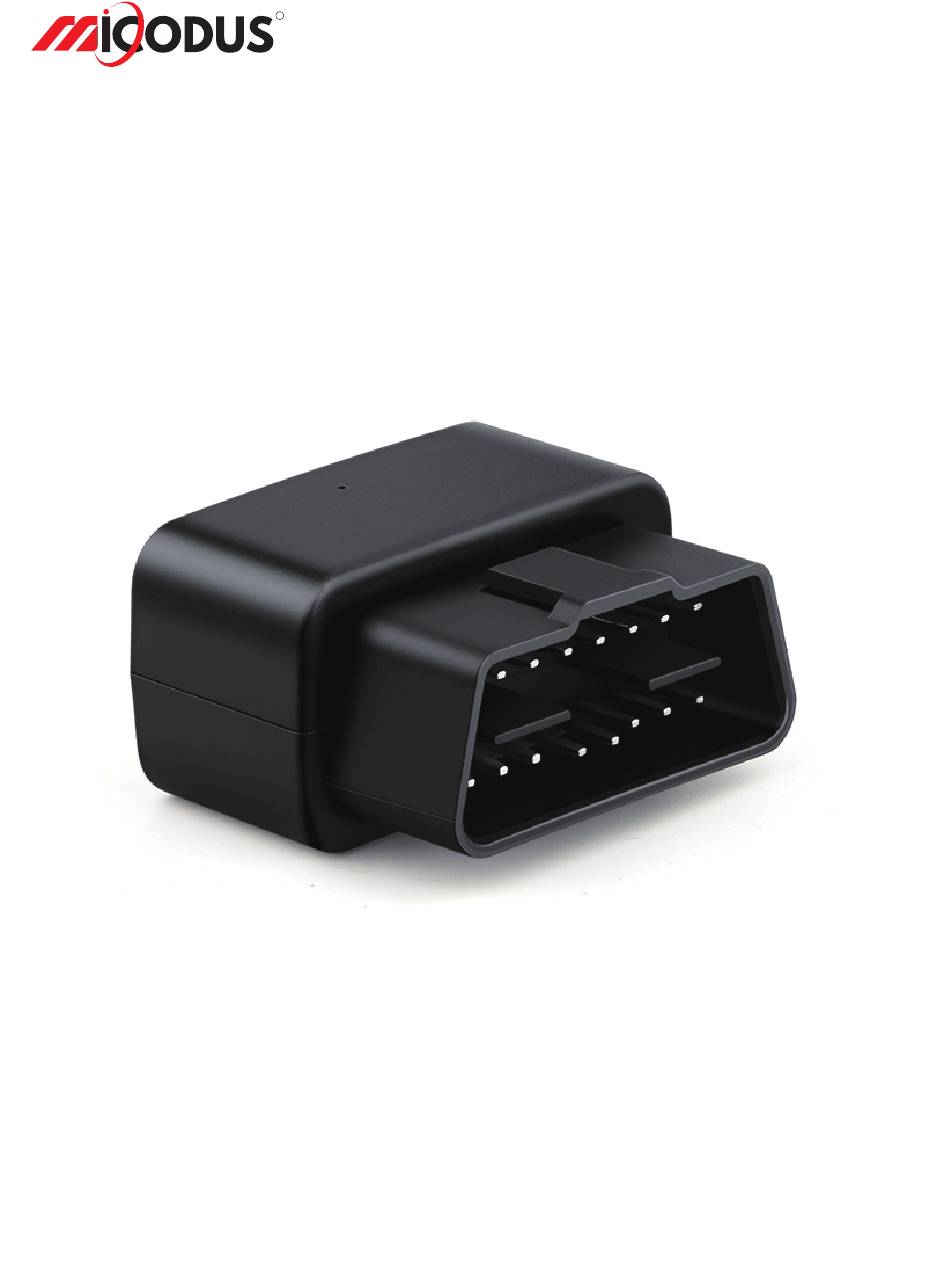

- Page 1 MV33 User Manual V1.0 Learn how to set up your new MiCODUS Tracker Copyright ©2022 MiCODUS | All Rights Reserved...
-
Page 2: Main Features
Working Voltage Dual Positioning Overspeed Movement Plug Out Alarm Vibration Alert Geo-fence Alarm Alarm 2.Specifications Model MV33 Weight Device Information Dimensions 45mm(L) * 25mm(W) * 38mm(H) Backup Battery 1-2 hours Working Time Working Voltage DC 9-40V Working Current <30 mA Sleep Current <15 uA... -
Page 3: Activate Device
4. Activate Device Install the SIM card via the correct direction as below: Normal SIM State Event Charging Solid POWER LED (RED) Charger has not been inserted Dark Searching for network Solid GSM LED (GREEN) Network has been registered Flash every 1 second GPS is in fixing Solid GPS LED (Blue) - Page 4 5. Activate Device GPS Main Unit Function Cable User Guide Genuine Packing Box 6. Applications...
-
Page 5: Functions Explanation
Please follow with the quick user guide carefully! a. Voice Monitor: For example: * Set admin number by this sms command: MV33 admin123456+space+mobile number with country code admin123456 0086134******** * Switch the tracker to voice monitor mode by this sms command:... - Page 6 8. Installation Recomendation Where is the OBD interface? Where is the OBD interface? Most of the car‘s OBD interface is located in A and B, Most of the car's OBD interface is located in A and B, A small part of the car will be in C,D and E. A small part of the car will be in C,D and E.
-
Page 7: Troubleshooting
9. Troubleshooting Type Check the APN and settings. Unable to connect to Check whrther the data service of SIM card is enabled. tracking platform Check the balance of SIM card. Check whether external power is still connected. Tracker shows offline Check if the vehicle entered netword blind area. - Page 8 Micodus tracking platform's IP: 47.254.77.28; IP&Port +space+port Port: 7700 SZCS,123456,DOMAIN=d.micodus. MiCODUS server domain: d.micodus.net, Port: 7700 Domain net:7700 V:A: Indicates the device has GPS signal; V:V: Indicates the device doesn't have GPS signal; 2019-11-26 10:17:01: Date and Time; S: 000km/h: Speed of the tracker Bat:5: Battery level of the backup battery of the tracker, it has 6 levels: "6"...
- Page 9 Functions Command Format Explanation If device keep stationary more than 5 minutes the device will sleep123456 time enter into sleep mode automatically, sms commands and call can wake up it Sleep Mode If device keep stationary more than 5 minutes the device will sleep123456 shock enter into sleep mode automatically, vibration, sms commands and call can wake up it...
-
Page 10: Any Questions
11. Any Questions? E-mail: support@micodus.com Skype: MiCODUS 12. Download the APP Search "MiCODUS" in iOS APP store or Google Play Store, or just scan the QR code as below to download MiCODUS APP: Download on the APP Store Download for...
