Westin 28-534780 Installation Instructions Manual

ITEM QUANTITY
1 2
2 2
3 2
4 2
5 2
6 2
7 2
8 1
9 1
10 2
11 2
12 2
13 2
14 6
15 6
16 10
17 4
18 10
19 10
20 10
21 12
22 24
23 24
24 12
25 24
26 6
27 12
28 24
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-2853478-RevA ECO #: W19-0158
INSTALLATION INSTRUCTIONS
APPLICATION:
2019-2020 Ram 2500/3500 Crew Cab (6.5 ft bed)
PART NUMBER:
28-534780, 28-534785
CONTENT
STEP BAR ASSEMBLY FRONT SECTION (1 DRIVER, 1 PASSENGER)
STEP BAR ASSEMBLY REAR SECTION (1 DRIVER, 1 PASSENGER)
LINK BRACKET (1 DRIVER, 1 PASSENGER)
TALL REINFORCEMENT LINK
SHORT REINFORCEMENT LINK
MOUNTING BRACKET FRONT PASSENGER
MOUNTING BRACKET FRONT DRIVER
TOP ISOLATOR BRACKET
BOTTOM ISOLATOR BRACKET (1 DRIVER, 1 PASSENGER)
MOUNTING BRACKET REAR (1 DRIVER, 1 PASSENGER)
M10 FLANGED HEX HEAD BOLT
M10 SPLIT LOCK WASHER
M10 FLAT WASHER
M8 HEX HEAD CAP SCREW
M8 SPLIT LOCK WASHER (12x Yellow Zinc, 12x Black Zinc)
M8 FLAT WASHER (12x Yellow Zinc, 12x Black Zinc)
M6 HEX HEAD CAP SCREW (12x Yellow Zinc, 12x Black Zinc)
M6 BUTTON HEAD SCREW
LARGE M6 FLAT WASHER
MEDIUM M6 FLAT WASHER

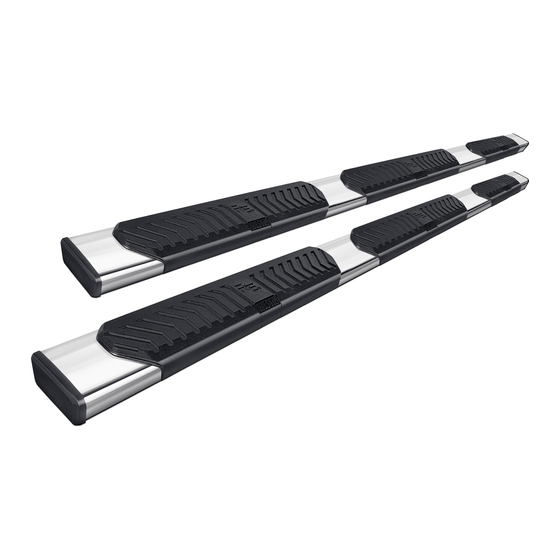

R5 WHEEL-TO-WHEEL NERF STEP BARS
DESCRIPTION
STEP PAD
LINK PLATE
ISOLATOR KIT
PLATE ADAPTER
BRACKET COVER
BOLT/NUT PLATE
M10 HEX NUT
M8 HEX NUT
for additional installation assistance please call
1
TOOLS NEEDED
13MM SOCKET
TORQUE WRENCH
10MM SOCKET
10MM WRENCH
17MM SOCKET
19MM SOCKET
1/2" EXTENSION
1/2" DRILL BIT
Thank you for choosing Westin products
Customer Service (800) 793-7846
www.westinautomotive.com
3/8" RATCHET
1/4" RATCHET
1/2" RATCHET
4MM ALLEN
DRILL
DATE: 06/1/20
