Westin 28-534340 Installation Instructions Manual

Westin 28-534340 Installation Instructions Manual

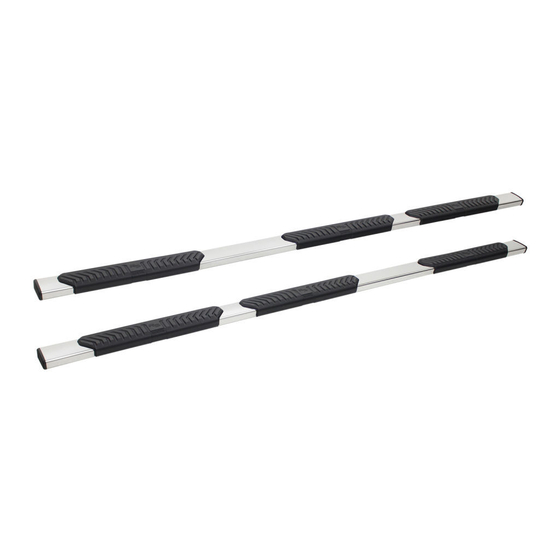

Wheel-to-wheel nerf step bars

Advertisement

Quick Links

ITEM
QUANTITY
1
2
2
2
3
2
4
2
5
2
6
2
7
2
8
1
9
1
10
2
11
2
12
2
13
4
14
6
15
8
16
10
17
4
18
10
19
10
20
10
21
12
22
24
23
24
24
12
25
24
26
6
27
24
28
12
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-2853434-RevA
ECO #: W19-0079
INSTALLATION INSTRUCTIONS
APPLICATION:
Ram 2500/3500 Crew Cab 2019 (8' Bed) Excl. Dually
PART NUMBER:
28-534340, 28-534345
CONTENT
STEP BAR ASSEMBLY FRONT SECTION (1 DRIVER, 1 PASSENGER)
STEP BAR ASSEMBLY REAR SECTION (1 DRIVER, 1 PASSENGER)
LINK BRACKET (1 DRIVER, 1 PASSENGER)
TALL REINFORCEMENT LINK
SHORT REINFORCEMENT LINK
MOUNTING BRACKET FRONT PASSENGER
MOUNTING BRACKET FRONT DRIVER
TOP ISOLATOR BRACKET
BOTTOM ISOLATOR BRACKET (1 DRIVER, 1 PASSENGER)
MOUNTING BRACKET REAR (1 DRIVER, 1 PASSENGER)
M10 FLANGED HEX HEAD BOLT (BLACK ZINC)
M10 SPLIT LOCK WASHER (YELLOW ZINC)
M10 FLAT WASHER (YELLOW ZINC)
M10 HEX NUT (YELLOW ZINC)
M8 HEX HEAD CAP SCREW (YELLOW ZINC)
M8 SPLIT LOCK WASHER (12x Yellow Zinc, 12x Black Zinc)
M8 FLAT WASHER (12x Yellow Zinc, 12x Black Zinc)
M8 HEX NUT (BLACK ZINC)
M6 HEX HEAD CAP SCREW (12x Yellow Zinc, 12x Black Zinc)
M6 BUTTON HEAD SCREW (BLACK ZINC)
M6 FLAT WASHER (YELLOW ZINC)
THICK M6 FLAT WASHER (BLACK ZINC)
R5 WHEEL-TO-WHEEL NERF STEP BARS
DESCRIPTION
STEP PAD
LINK PLATE
ISOLATOR KIT
PLATE ADAPTER
BRACKET COVER
BOLT/NUT PLATE
for additional installation assistance please call
1
TOOLS NEEDED
13MM SOCKET
TORQUE WRENCH
10MM SOCKET
10MM WRENCH
17MM SOCKET
19MM SOCKET
1/2" EXTENSION
1/2" DRILL BIT
Thank you for choosing Westin products
Customer Service (800) 793-7846
www.westinautomotive.com
3/8" RATCHET
1/4" RATCHET
1/2" RATCHET
4MM ALLEN
DRILL
DATE: 10/8/19

Advertisement

loading
Need help?

Need help?

Do you have a question about the 28-534340 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Westin 28-534340

  • Page 1 THICK M6 FLAT WASHER (BLACK ZINC) ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca.
  • Page 2: Tools Needed

    Carefully read and understand all instructions before attempting installation. Failure to identify damage before installation could lead to a rejection of any claim. Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca.
  • Page 3 M8 bolt until Side Shown riv-cert is secured Figure 5 Figure 6 Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com P.N.: 75-2853434-RevA...
  • Page 4 Front passenger side Figure 11 Figure 10 Front driver side similar Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com P.N.: 75-2853434-RevA...
  • Page 5 Isolator Front Center Rear Bracket configuration for passenger’s side Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com P.N.: 75-2853434-RevA...
  • Page 6 8. Obtain the Link Plate (5) and secure it to the Step Bar Assembly (1 & 2) using the supplied M6 Hardware. See Figure 19. Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca.
  • Page 7 Link Brackets (4). The Link Brackets (4) will use the supplied M10 hardware. See Figures 20 and 21. Fig 20 Fig 21 FOR LINK BRACKETS ONLY Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
  • Page 8 1/2” hole into beam. Driver Side Shown Figure 24 Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com P.N.: 75-2853434-RevA...
  • Page 9 M6 to 5 to 7 ft-lbs, M8 to 15-18 ft-lbs, M10 to 32-38 ft-lbs, and M12 to 52-60 ft-lbs. Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca.
  • Page 10: Installation Complete

    STAINLESS STEEL PRODUCTS CAN BE CLEANED WITH MILD SOAP AND WATER. STAINLESS STEEL POLISH SHOULD BE USED TO POLISH SMALL SCRATCHES.  GLOSS BLACK FINISHES SHOULD BE CLEANED WITH MILD SOAP AND WATER Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
  • Page 11 AND SAFETY. DRILLING: Most Westin products do not require drilling for installation. If drilling is defined as required, use caution when drilling a vehicle. FAILURE TO REVIEW AN AREA TO BE DRILLED MAY RESULT IN PERSONAL INJURY AND/OR INJURY TO OTHERS AS WELL AS VEHICLE DAMAGE.

This manual is also suitable for:

28-534345
