Westin SG6 Installation Instructions Manual

ITEM QUANTITY
1 2
2 2
3 2
4 2
5 2
6* 1
7 12
8* 8
9* 4
10* 4
11* 12
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
ITEM 1
ITEM 3
ITEM 5
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-2757-RevB ECO #: W19-0187
INSTALLATION INSTRUCTIONS

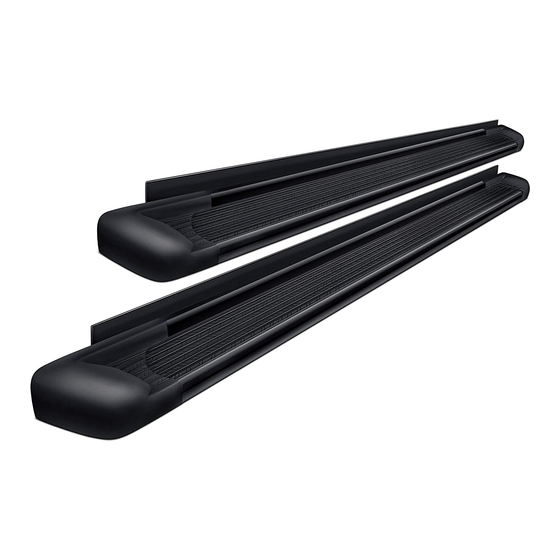

SG6 LED RUNNING BOARDS / SG6 RUNNING BOARDS
PART NUMBER:
27-64710, 27-64715, 27-65710, 27-65715, 27-64720, 27-64725, 27-65720,
27-65725, 27-64730, 27-64735, 27-65730, 27-65735, 27-64740, 27-64745,
27-65740, 27-65745, 27-64750, 27-64755, 27-65750, 27-65755, 27-64760,
27-64765, 27-65760, 27-65765
CONTENT
DESCRIPTION
END CAP "A"
END CAP "B"
ALUMINUM EXTRUSION
CLOSE OUT PANEL
RUBBER PAD
WIRING HARNESS
M4 PAN HEAD SCREW
DOUBLE SIDED TAPE
MAGNETIC SWITCH
LED LIGHT
ZIP TIES
* SG6 LED RUNNING BOARDS ONLY
LED END CAPS SHOWN
NON-LED END CAPS ARE SIMILAR
ITEM 2
83" ITEMS SHOWN
OTHER LENGTHS ARE SIMILAR
1
TOOLS NEEDED
PHILIPS-HEAD SCREWDRIVER
WIRE CUTTER
ITEM 10
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
ITEM 4
DATE: 12/31/19
