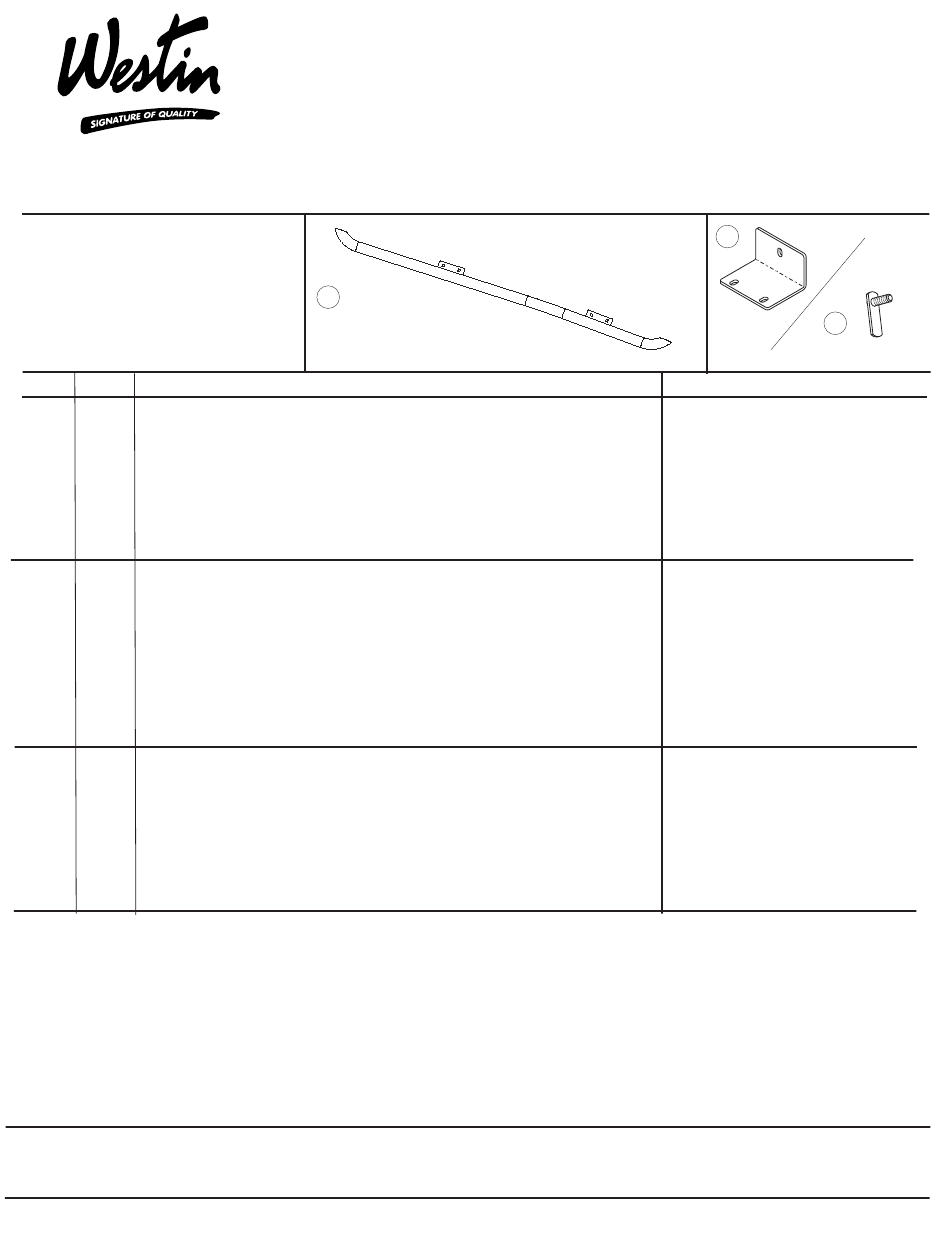

AUTOMOTIVE PRODUCTS, INC.
SPORT TUBE ASSEMBLIES
TUBEO DEPORTIVO ENSAMBLES DE
MONTAGES DE TUBE SPORT
28-0160
ITEM
QTY
1
2
SPORT TUBE, PASSENGER AND DRIVER
2
4
MOUNT BRACKET
3
4
BOLT PLATE
4
4
PLASTIC WASHER
5
8
3/8-16 X 1.00" CARRIAGE BOLT
6
12
3/8" FLAT WASHER
7
12
3/8" LOCK WASHER
8
12
3/8-16 HEX NUT
1
2
TUBE DEPORTIVO, LADO DEL ACOMPAÑANTE Y EL
CONDUCTOR
2
4
SOPORTES DE MONTAJE
3
4
PLACA POSTERIOR
4
4
ARANDELA DE PLÁSTICO
5
8
PERNO DE COCHE 3/8-16 X 1,00"
6
12
ARANDELAS PLANAS SAE DE 3/8"
7
12
ARANDELAS DE PRESIÓN DE 3/8"
8
12
TUERCAS HEXAGONALES DE 3/8-16
1
2
TUBE SPORT,
2
4
SUPPORTS DE MONTAGE
3
4
FIXATION DE CAROSSERIE
4
4
RONDELLE DE PLASTIQUE
5
8
BOULONS A TETE CARROSSERIE 3/8-16 X 1,00 PO
6
12
RONDELLE PLATE 3/8 PO
7
12
RONDELLES A FREIN 3/8 PO
8
12
ÉCROUS HEXAGONAUX 3/8-16
STEP 1.
Remove contents from box and check for damage. Verify all parts are present. Read instructions completely
before beginning.
STEP 2.
Attach brackets to sport tube. Hand tighten.
STEP 3.
Remove rubber plugs from slots 1 and 4 beginning at the front of cab.
STEP 4.
Install plastic washers onto bolt plates. Install bolt plates as shown.
STEP 5.
Attach sport tube as shown.
STEP 6.
Make sure step bar and brackets are properly aligned and tighten fasteners. Recommended torque values are 26
FT.LBS. for 3/8" fasteners.
FINISH PROTECTION
Westin products have a high quality finish that must be cared for like any other exposed finish on the vehicle. Protect the finish with a non-abrasive automotive wax, (e.g.
Pure Carnauba) on a regular basis. The use of any soap, polish or wax that contains an abrasive is detrimental, as the compounds scratch the finish and open it to
corrosion.
INSTRUCTIONS-INSTRUCCIONES-CONSIGNES
APPLICATION: 2001-06 HYUNDAI SANTA FE
APLICACIÓN: HYUNDAI SANTA FE, MOD. 2001-06
APPLICATION: HYUNDAI SANTA FE, 2001-06
1
CONTENTS -
CONTENIDO
CÔTÉ CONDUCTEUR ET CÔTÉ PASSAGER
SEE FIGURES 4 AND 5.
- CONTENU
SEE FIGURE 1.
2
TOOLS -
HERRAMIENTA
9/16" SOCKET
RATCHET
TORQUE WRENCH
DADO DE 9/16"
MANERAL
LLAVE DE TORQUE
DOUILLE 9/16 PO
CLIQUET
Cl DE COUPLE
É
SEE FIGURE 2.
SEE FIGURES 3 AND 4.
WO:
75-0470 REVISION A 1/18/06
3
- OUTILS
