Westin 23-3610 Installation Instructions Manual

ITEM QUANTITY
1 2
2,3 2
4 1
5 1
6,7 2
8 1
9,10 2
11,12 2
13 4
14 2
15 2
16 2
17 4
18 4
19 6
20 6
21 1
22 2
23 6
24 18
25 8
26 8
27 3
28 8
29 8
30 8
31 8
32 16
33 8
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-0026-RevF ECO #: W17-0060
INSTALLATION INSTRUCTIONS
APPLICATION:
PART NUMBER:
FRONT MOUNTING BRACKET, DRIVER (2) AND PASSENGER (3)
DRIVER FRONT INNER SUPPORT BRACKET (4WD W/SKID PLATE)
DRIVER FRONT INNER SUPPORT BRACKET
(2WD/4WD W/O SKID PLATE)
PASSENGER OUTER SUPPORT BRACKET
(FITS PASSENGER FRONT AND REAR ONLY)
PASSENGER INNER SUPPORT BRACKET (ALL)
REAR MOUNTING BRACKET, DRIVER (9) AND PASSENGER (10)
REAR INNER SUPPORT BRACKET, DRIVER (11) AND PASSENGER (12)
M10 LONG BOLT PLATES
M10 SHORT BOLT PLATES
M12 HEX HEAD BOLTS
M12 LARGE FLAT WASHERS
M12 SMALL FLAT WASHERS
M12 LOCK WASHERS
M10 x 40MM HEX HEAD BOLTS
M10 x 35MM HEX HEAD BOLTS
M10 x 30MM HEX HEAD BOLTS
M10 LOCK WASHERS
M8 x 25MM HEX HEAD BOLTS
M6 HEX HEAD BOLTS

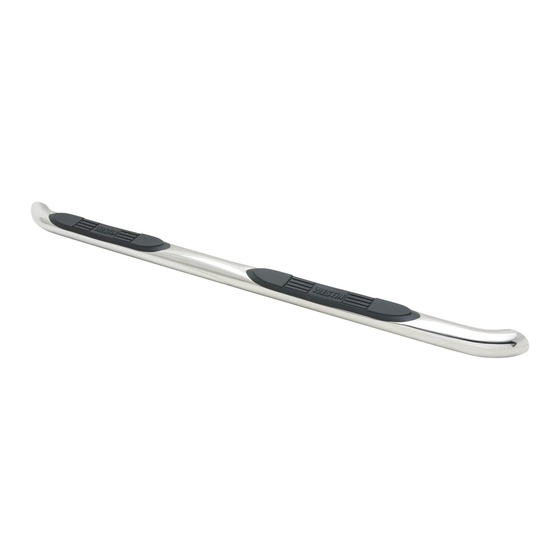

E-SERIES STEP BARS / 4" OVAL STEP BARS
2011 - 2017 Jeep Grand Cherokee
23-3610, 23-3615, 21-3610, 21-3615, 23-73610
DESCRIPTION
STEPBARS
M12 BOLT PLATES
M12 HEX NUTS
M10 FLAT WASHERS
M10 HEX NUTS
M10 NYLOCK NUTS
M8 FLAT WASHERS
M8 LOCK WASHERS
M6 FLAT WASHERS
M6 NYLOCK NUTS
for additional installation assistance please call
1
TOOLS NEEDED
10MM SOCKET
13MM SOCKET
16MM SOCKET
18MM SOCKET
TORQUE WRENCH
Thank you for choosing Westin products
Customer Service (800) 793-7846
www.westinautomotive.com
RATCHET
DATE: 6/21/17
