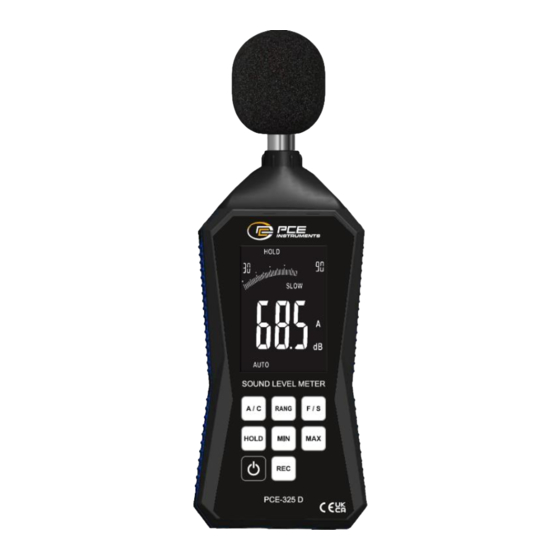

- Page 1 User Manual PCE-325 / PCE-325D Sound Level Meter User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 12 April 2024 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Auto Power Off ......................... 5 5.10 Data recording and software installation ................5 Calibration ..................... 6 Maintenance and cleaning ..............7 Cleaning and storage ....................... 7 Charging the battery ......................7 Contact ....................7 Disposal ....................7 © PCE Instruments... -
Page 3: Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Technical Specification
Sensor: 102 x 60 x 25 mm (4.01 x 2.36 x 0.98") Weight approx. 306 g (0.674 lbs) Delivery Scope 1 x sound level meter PCE-325 or PCE-325D 1 x USB cable 1 x PC software (PCE-325D) 1 x service bag 1 x user manual ©... -
Page 5: Device Description
6. RANGE selection key 7. Fast/slow response time key 8. MAX key 9. MIN key 10. REC key (PCE-325D) / RANGE selection key (PCE-325 only) Note: The micro USB socket is located at the bottom of the meter. Display 1. Under-range indicator 2. -
Page 6: Operating Instructions
30 … 130 dB. The manual ranges are: 30 … 90 dB, 50 … 110 dB and 70 … 130 dB. Use the RANG (only for PCE-325D, for PCE-325 use the arrow keys) key to select the preferred range. The selected range will display in the top left and right of the LCD. -
Page 7: Max/Min Mode
A CD with the software is included for your convenience but we recommend downloading the latest version at the pce-instruments website. To setup for a recording, connect the meter to a PC via the micro USB port. © PCE Instruments... -
Page 8: Calibration
Carefully insert the microphone into the 1/2 inch hole of the calibrator set to 94dB @ 1kHz. Adjust the calibration potentiometer with a small screw driver. Reattach the back cover. Note: The instrument has been calibrated before shipment. The recommended calibration interval is one year. © PCE Instruments... -
Page 9: Maintenance And Cleaning
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 10 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mula, 8 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
