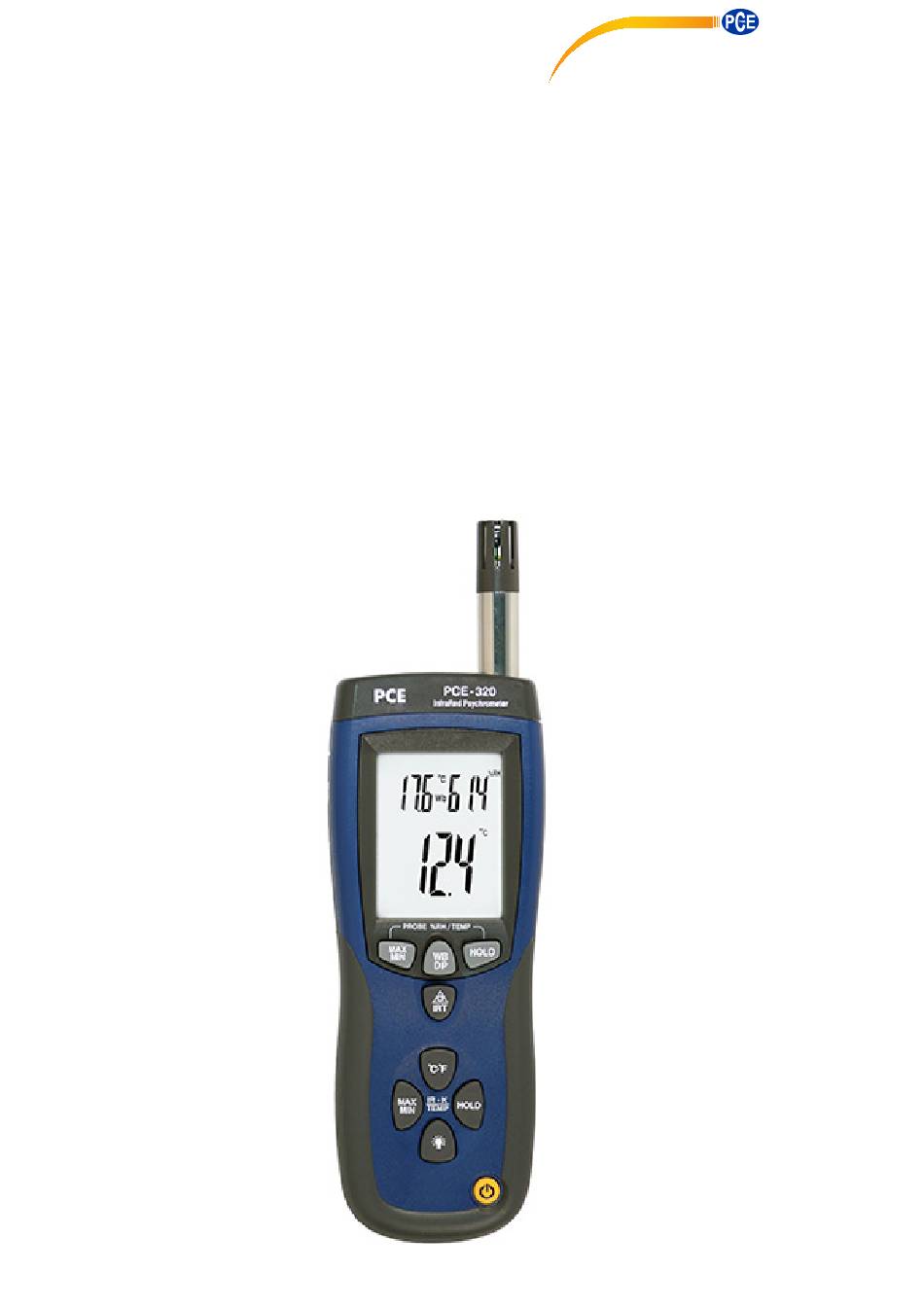

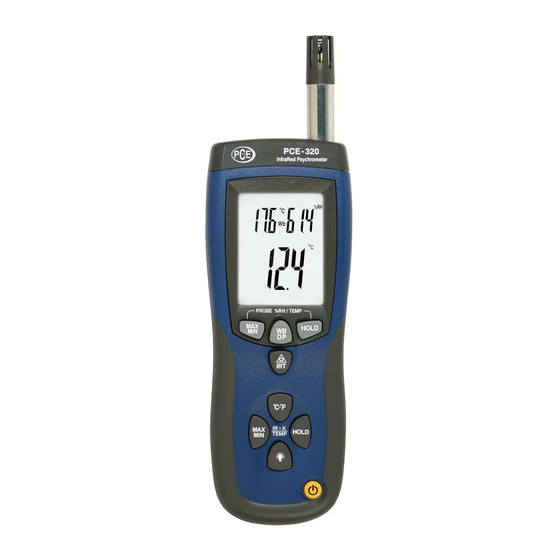

INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the PCE-320 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PCE Instruments PCE-320

Summary of Contents for PCE Instruments PCE-320

  • Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Unit 11 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0...
  • Page 2 INTRODUCTION Thank you for purchasing the PCE-320 Heat Stress Meter. This device offers non- contact (infrared) temperature measurements capability. The built-in laser pointer increases target accuracy while the backlight LCD and handy push-buttons combine for convenient, ergonomic operation. Type K thermocouple functionality and Humidity &...
  • Page 3 1.Features: 1 . 3 in professional measuring instrument: Type k, IR and Psychrometer. 2. Triple digital LCD display. Built-in microprocessor circuit assures excellent performance and accuracy. Fast response, all data calculated four times in one second. Standard type k(NiCr-NiAI) Thermocouple input jack suitable for all kinds of type k probe.
  • Page 4 WIDE RANGE APPLICATION: Food preparation, Safety and Fire inspectors, Plastic molding, Asphalt, Marine and Screen printing, measure ink and Dryer temperature, HVAC/R, Diesel and Fleet maintenance. 1. � SAFETV • Use extreme caution when the laser beam is turned on. •...
  • Page 5 The focal point for each unit is 914mm (36"). The spot sizes indicate 90% encircled energy. Fig: 1 MODEL: PCE-320 Distance(D) to Spot Size(S) 50@ 1500 � :;;:�t�=:t=::; t =l; = ==:::::; t =i•...

  • Page 6: Specifications

    2. Specifications: Function Range Resolution Accuracy º ± (1% ±1 0.1 'F /'C Type k -148-2501 'F Temp. (-100-1372'C) lnfraRed -58 to-4'F 0.1'F/'C ±9.0'F (5.0 Temp. (-50- -20'C) ºC) ±2% reading -4 to932'F 0.1'F/'C º º º (-20-500 or±4 º 0.1'F/'C AirTemp.

  • Page 7: Front Description

    3. Front Description:...
  • Page 8 1. Humidity & Temperature Sensor Thermocouple input jack Laser pointer beam Laser sensor USB Interface LCD Display Humidity & Temperature Sensor Max/Min Button TEMP./Wet Bulb/Dew Point Button TEMP./Wet Bulb/Dew Point/%RH hold Button 1 O. IR Measurement Trigger º º C Button 12.
  • Page 9 lndicator: ® ® 1BHBJBHff �G REC MAX MIN H PC·LINK ® ® nnnn � &IRTEMPii:lm aaaa-® RECMAXMINH Auto Power Off I ndication ® Battery lndication @ Air Temp. Value @ IR Temp./Type K Temp. lndication @ Communication lndication @Air Humidity (J) IR Temp./Type K Temp.
  • Page 10 4.0peration: 1 ) � Air Humidity and temp. MAX,MIN, Recording Function. - Press the Max/Min button to begin capturing the Minimum and Maximum values, The 'REC' icon will appear on the upper left corner of the display. - Press the Max/Min to view maximum and minimum recorded readings.
  • Page 11 3 ) � HOLD - Press the button to freeze Air Humidity and temp. reading in the upper half 'HOLD' display, The icon will appear on the upper right corner of the display. Press the HOLD button again to return to normal 'HOLD' operation and the icon will disappear.
  • Page 12 6 ) � IR temp. or Type k MAX,MIN, Recording Function. - Press the Max/Min button to begin capturing the Minimum and Maximum values, The 'REC' icon will appear on the lower left comer of the display. - Press the Max/Min to view maximum and minimum recorded readings.
  • Page 13 - Press the button to turn the meter on or off. 5. Auto Power OFF: - The meter will automatically turn off after 15 minutes if no keys are pressed during this period. 6. Bypass Auto Power Off: The meter will automatically turn off after 15 minutes in th e normal.
  • Page 14 8. Warranty: The meter is warranted to be free from defects in material and workmanship for a period of two years from the date of purchase. This warranty covers normal operation does cover batter, misuse, abuse, alteration, tampering, neglect, improper maintenance or damage resulting from leaking batteries.
