Summary of Contents for PCE Instruments PCE-354

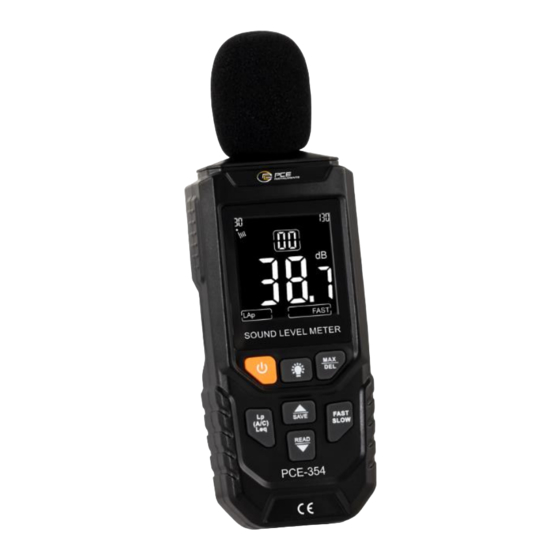

- Page 1 User Manual PCE-354 | Sound Level Meter User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 25 April 2024 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Equivalent continuous sound level ............. 7 Setting the measuring time ....................7 Automatic Power Off................8 Calibration ..................... 8 10 Wind screen ................... 8 11 Power supply ..................8 12 Contact ....................9 13 Disposal ....................9 © PCE Instruments... -
Page 3: Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
0 ... 50 °C,10 ... 95 % RH Dimensions (L x W x H) 177 x 60 x 35 mm Weight 110 g Delivery scope 1 x decibel Meter PCE-354 3 x AAA batteries 1 x user manual 1 x instrument bag © PCE Instruments... -
Page 5: Device Description
Measurement range undercut Low battery icon 3-12 Save Time weighting 3-13 Memory readout LAp / LCp measurement 3-14 Set recoring time Leq Lp: Number of data records in the Leq measurement 3-15 memory Measurement range selection Leq: Measuring time © PCE Instruments... -
Page 6: Device
Key to switch between LAp, LCp and 3-16 3-21 3-17 Microphone 3-22 Key to change time weighting ▲ and save key 3-18 On/off key 3-23 ▼ and readout key 3-19 MAX and DEL key (delete) 3-24 3-20 Backlight on key © PCE Instruments... -
Page 7: Operation
You can select the SLOW weighting for most applications. Maximum value Press the “MAX/DEL” key to display the maximum value. The display shows “dB Max” together with the maximum value. Press this key again to display the real-time sound pressure value. © PCE Instruments... -
Page 8: Memory
To exit data read mode, press and hold the "READ/▼" key until the "R" disappears from the display. Clearing data To clear the memory, press and hold the ‘MAX/DEL’ key until the number of memory locations displays ‘00’. © PCE Instruments... -
Page 9: Equivalent Continuous Sound Level
"S" is shown on the left-hand side of the display. Press the "▲/SAVE" and "READ/▼" keys to set the measuring time in seconds. You can set a maximum of 59 seconds. Press the key „FAST/SLOW" again. The sound level meter automatically starts the measurement according to the set time. © PCE Instruments... -
Page 10: Automatic Power Off
3 new batteries (type 1.5 V AAA). Ensure that the polarity is correct. If you do not use the sound level meter for a longer period of time, we recommend that you remove the batteries. © PCE Instruments... -
Page 11: Contact
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 12 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mula, 8 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
