Manual

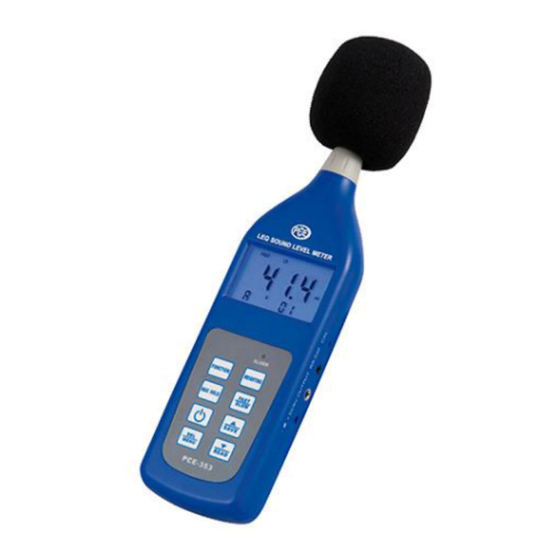

Sound Level Meter PCE-353
Version 1.0
Date of creation: 29.04.2015
Date of last change: 20.12.2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PCE Instruments PCE-353
Summary of Contents for PCE Instruments PCE-353

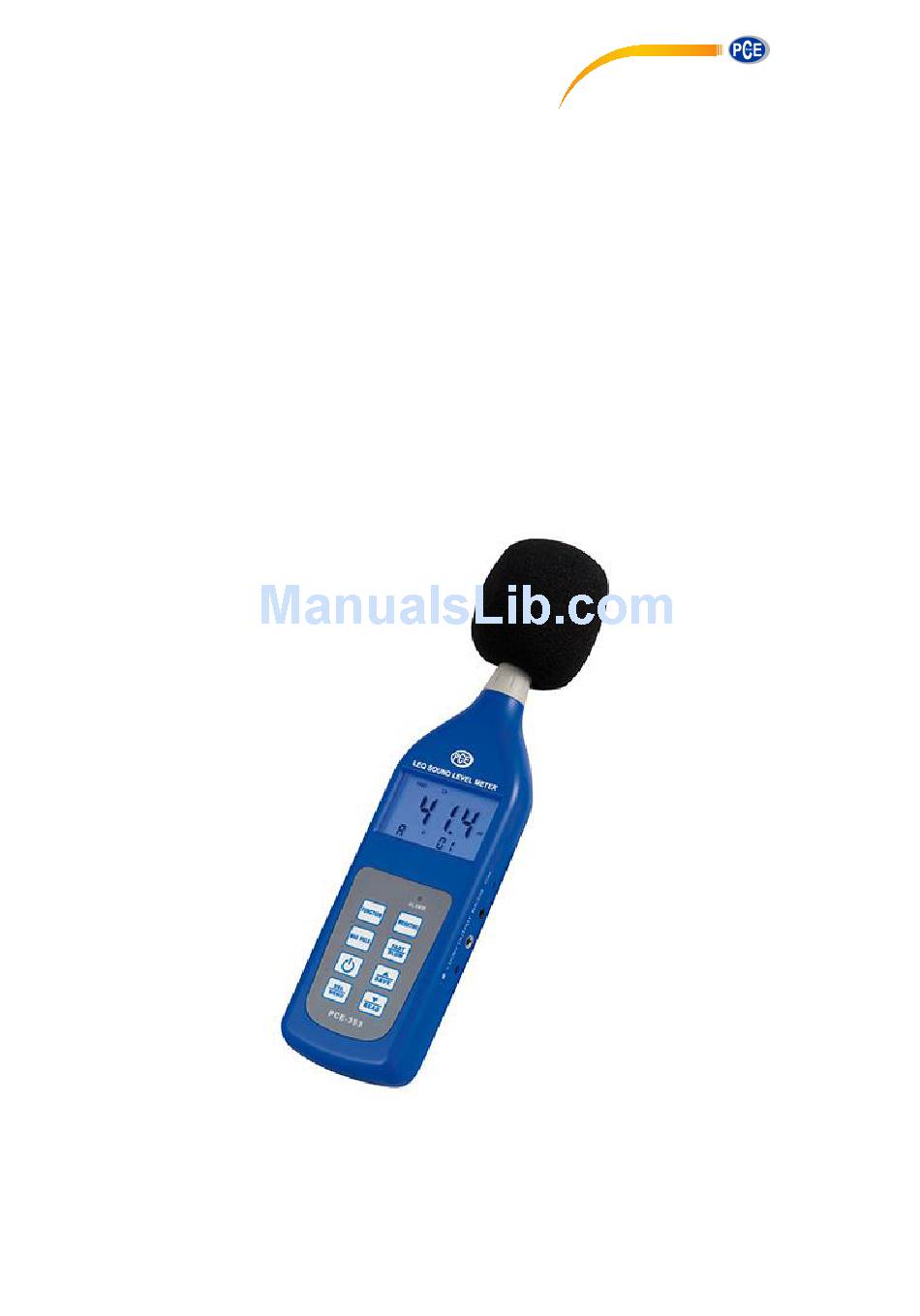

- Page 1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@industrial-needs.com www.pce-instruments.com/english www.pce-instruments.com Manual Sound Level Meter PCE-353 Version 1.0 Date of creation: 29.04.2015 Date of last change: 20.12.2017...
-
Page 2: Table Of Contents
Calibration........................... 7 5.6.1 Calibration via the integrated calibration signal ................7 5.6.2 Calibration via the optional sound calibrator PCE-SC42 ............... 7 How to replace the batteries ....................... 7 Contact ........................8 PCE Instruments UK ........................8 PCE Americas ..........................8... -
Page 3: Introduction
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. There is no warranty of damages or injuries caused by non-observance of the manual. -
Page 4: Specifications
6 V dc, 100 mA Dimensions 36 x 63 x 26 mm Weight 170 g (including batteries) Delivery contents 1 x PCE-353 1 x carrying case 1 x instruction manual 1 x wind noise suppressor (foam plastic ball) Optional accessories ... -
Page 5: System Description
Manual System description Front Microphone with wind noise suppressor Display Alarm LED Function button MAX HOLD button ON / OFF button Delete / menu button Weighting button Fast / slow button 1.10 Up / save button 1.11 Down / read button 1.12 Calibration screw 1.13... -
Page 6: Instructions
Manual Instructions How to perform a measurement 1. Press the ON/OFF button (1.6) to turn on the device. 2. Use the function button (1.4) to choose the desired measuring mode. Current sound pressure level Equivalent continuous A-weighted sound pressure level, i.e. arithmetic mean value in a period of time set Statistic analysis, i.e. -
Page 7: Alarm Settings
Manual Alarm settings The alarm LED flashes when the current reading is equal to or higher than the alarm threshold. The pre- set alarm threshold is 85 dB. You can change it to values between 30 and 130 dB. 1. Press and hold the delete / menu button (1.7) for about 5 seconds until the “AL” indication appears on the display. -
Page 8: Contact
Contact If you have any questions about our range of products or measuring instruments please contact PCE Instruments. PCE Instruments UK By post: PCE Instruments UK Ltd. Units 12/13 Southpoint Business Park Ensign Way, Southampton Hampshire United Kingdom, SO31 4RF...
