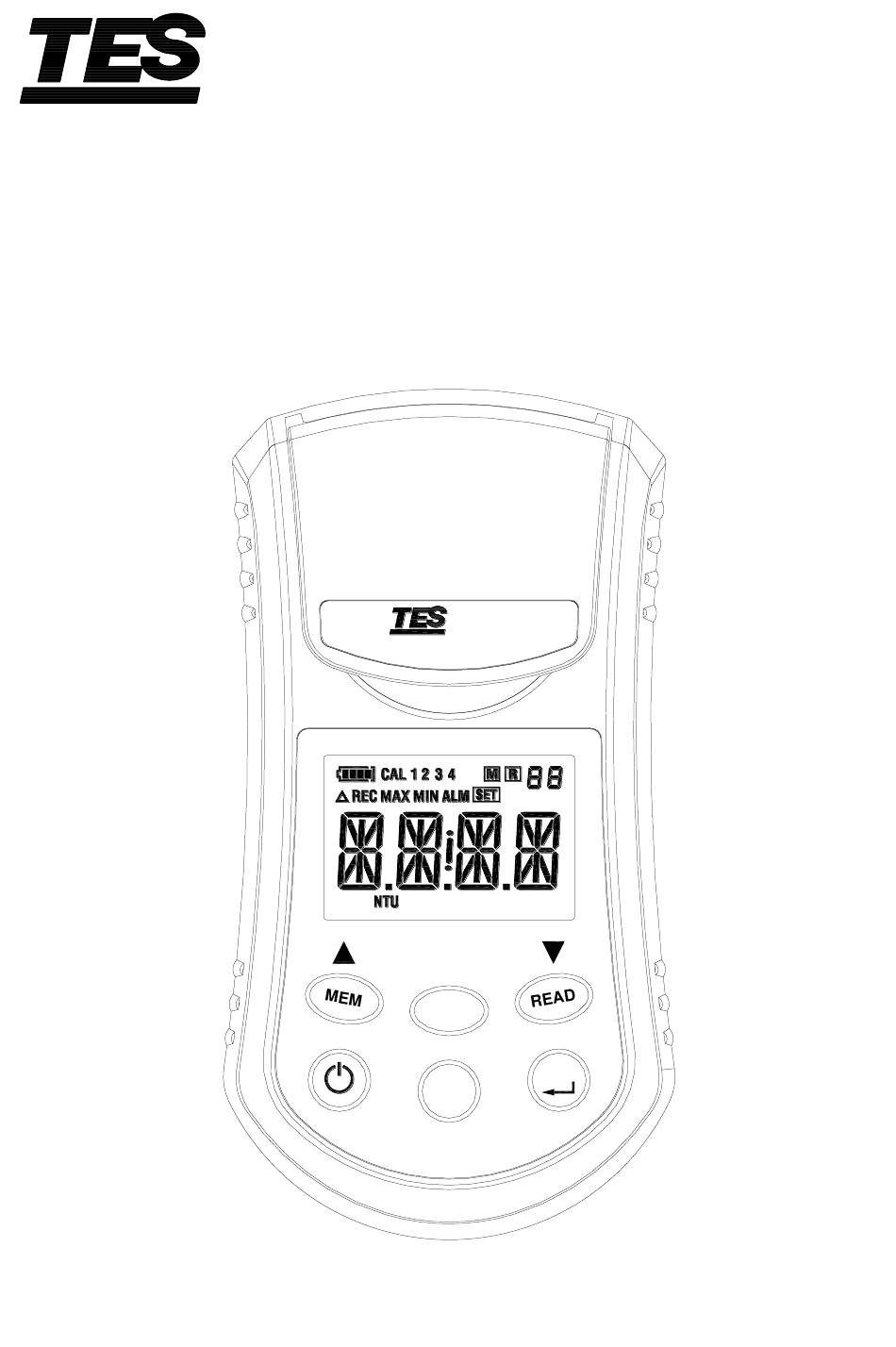

TURBIDITY METER
TES-1386
INSTRUCTION MANUAL
1386
TURBIDITY METER
MAX/MIN
CAL
REL
TEST
TES ELECTRICAL ELECTRONIC CORP.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TES-1386 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TES TES-1386

Summary of Contents for TES TES-1386

  • Page 1 TURBIDITY METER TES-1386 INSTRUCTION MANUAL 1386 TURBIDITY METER MAX/MIN TEST TES ELECTRICAL ELECTRONIC CORP.

  • Page 2: Table Of Contents

    5-5 Alarm Function Operation ........18 5-6 Setting the Real-Time ........... 19 5-7 Data Memory and Read Mode ......20 6. Battery Check-Up & Replacement ......21 7. Maintenance ............... 22 ※ Copyright © 2019 TES Electrical Electronic Corp. All rights reserved.

  • Page 3: Instruction

    1. INSTRUCTION ❑ The meter is portable turbidimeter operate on the nephelometric principles of turbidity measurement based 7027, which suitable measurement water solutions institutes, industrial labs and production fields. ❑ The meter is waterproof turbidimeter with a rating of IP65 and can memory 99 data points that can later be read by the meter.

  • Page 4: Specifications

    3. SPECIFICATIONS Measurement Method: ISO 7027 compliant nephelometric method (90°) Measurement Range: 0 to 1000 NTU Automatic Range Selection: 0.01 – 9.99 NTU 10.0 – 99.9 NTU 100 – 1000 NTU Resolution: 0.01 NTU (0 – 9.99 NTU) 0.1 NTU (10 – 99.9 NTU) 1 NTU (100 –...
  • Page 5 Sample Cells (Vials): Borosilicate glass with screw caps, fill line and indexing mark. 52.5 (H) x 25 (Dia) mm (2.07 x 1 in) Sample Volume Required: 10 ml (0.33 oz) Operating Temperature Range: 0°C to 50°C (32°F to 122°F) Sample Temperature Range: 0°C to 50°C (32°F to 122°F) Operating Humidity Range: 0 to 90% RH, non-condensing at 30°C (86°F)

  • Page 6: Name Of Parts And Positions

    4. NAME OF PARTS AND POSITIONS MAX/MIN TEST 1. LCD Display: 4-digital, 14-segment LCD is used for reporting the measured turbidity value and has several other marks to provide function guidance. 2. MEM key: Press this key one time to store one set LCD logging to memory.
  • Page 7 key:  Press this key one time to turn on the meter and press this key for 3 seconds to turn off the meter. The meter will automatically shuts off 10 minutes after last key press except in the MAX/MIN and REL functions. ...

  • Page 8: Operating Instructions

    5. OPERATING INSTRUCTIONS 5-1 Turbidity Calibration The meter has been factory calibrated. For best accuracy and regulatory compliance, re-calibration is recommended at least once every month. In addition, it is recommended to use the prepared calibration standard vials daily as check standards prior to the measurement of samples.
  • Page 9 Also, do not store in freezing temperature will cause irreversible shrinkage of the standards particles thus resulting to inaccurate calibration and measurements. 5-1-2 Index Mark The United States Environmental Protection Agency (US EPA) recommends that vials used for turbidimeter calibration or sample measurement be indexed. Insert the calibration standard vial to the meter sample well so the diamond or orientation mark aligns with the raised orientation index mark in front of the sample well.
  • Page 10 standard into the sample well “CAL2 100 NTU”. 10. Repeat the calibration for CAL2, CAL3 and CAL4 calibration standards. 11. After successfully calibrate the CAL4 standard (0.05 NTU), the meter automatically exits the calibration mode and ready for measurement. The complete calibration sequence as follows figure: Measurement Mode ...
  • Page 11  (Flashes about 12 times)  Place the CAL2 standard into the sample well.  ( key)  (Flashes about 12 times)
  • Page 12  Place the CAL3 standard into the sample well.  ( key)  (Flashes about 12 times)  CAL4 0.05 NTU Place the CAL4 standard into the sample well.  ( key)
  • Page 13  (Flashes about 12 times)  Measurement Mode NOTES: 1. If you want to exit the calibration mode, may do so at the end of any step by press the “CAL” key for 3 seconds. The meter accepts only the values calibrated prior to exiting.

  • Page 14: Turbidity Measurement

    5-1-4 Restoring the Factory Calibration The meter allows you to reset the meter back to the factory default calibration values. This feature can be used when there are errors in calibration or when you have new calibration standards. 1. Press key for 3 seconds to turn off the meter.
  • Page 15 Before switch on, place a sample vial or any of the calibration standards provided into the sample well. Measurement Off   “x.x” is software revision number.  “TEST” flashes about 12 times indicating that the meter goes to measurement mode. ...
  • Page 16 5-2-2 Turbidity Measurement Procedure Preparation of Sample Vial 1. Use a clean and dry sample vial. 2. Take care to handle the sample vial by the top. 3. Rinse the sample vial with about 10mL of the sample water, capping the sample vial with screw cap and gently inverting it several times.
  • Page 17 Measurement Procedure 1. Gently invert each sample vial before inserting the sample vial. 2. Place the meter on a flat and level surface. 3. Open the meter light shield lid. 4. Place the sample vial into the sample well and align the vial’s index mark with the meter’s index mark.
  • Page 18 “TEST” flashes about 12 10. If necessary, place the times. second sample vial into the sample well. Remember to align the sample vial’s index mark with the meter’s index mark. 11. Press “TEST” key, the display blinks “TEST” for 12 times and the measured value appears.

  • Page 19: Continuous Measurement For Capturing Maximum And Minimum Values

    5-3 Continuous Measurement for Capturing Maximum and Minimum Values The MAX/MIN record mode captures maximum and minimum measured values. When the measured value goes above the recorded maximum value or below the recorded minimum value, the meter records the new value. 1.

  • Page 20: Alarm Function Operation

    1. Perform the Measurement Procedure Section step 1 to step 9 until the measured value appears in the display. 2. Press “REL” key to enter this mode. Zero the display, the “” mark is blink displayed, and the current measured value stored as the reference value. 3.

  • Page 21: Setting The Real-Time

    5-5-2 To Turn-On and Turn-Off Alarm function 1. In the measurement mode, press  key for 3 seconds to turn on the alarm function, the “ALM” mark is displayed. 2. When the measured value is upper to the alarm limit value the beep will sound 12 seconds then the “ALM”...

  • Page 22: Data Memory And Read Mode

    9. Press “CAL” key and  or  key to set the “- - : second” to the real-time. 10. Press  key to store the RTC setting and exit. 11. In the measurement mode, press  key for 3 seconds to enter the RTC display mode then press ...

  • Page 23: Battery Check-Up & Replacement

    5-7-3 To Clear the Memorized Data 1. Press key for 3 seconds to turn off the meter. 2. Press and hold the “MEM” key then press key to turn on the meter, LCD will show “M CLER” one time, it indicates that the memorized data is erased. 6.

  • Page 24: Maintenance

    7. MAINTENANCE Turbidity meter maintenance  Wipe the outside of the turbidimeter with a damp cloth.  Use a lens tissue, a soft cloth, or clean compressed air can to remove dust and dirt from the sample well. Vial maintenance ...
  • Page 25 TES ELECTRICAL ELECTRONIC CORP. 7F, No. 31, Lane 513, Rui Guang Road, Neihu Dist. Taipei. Taiwan, R. O. C. Tel : (02) 2799-3660 Fax : 886-2-2799-5099 E-Mail : tes@ms9.hinet.net http://www.tes.com.tw Sep-2019...
