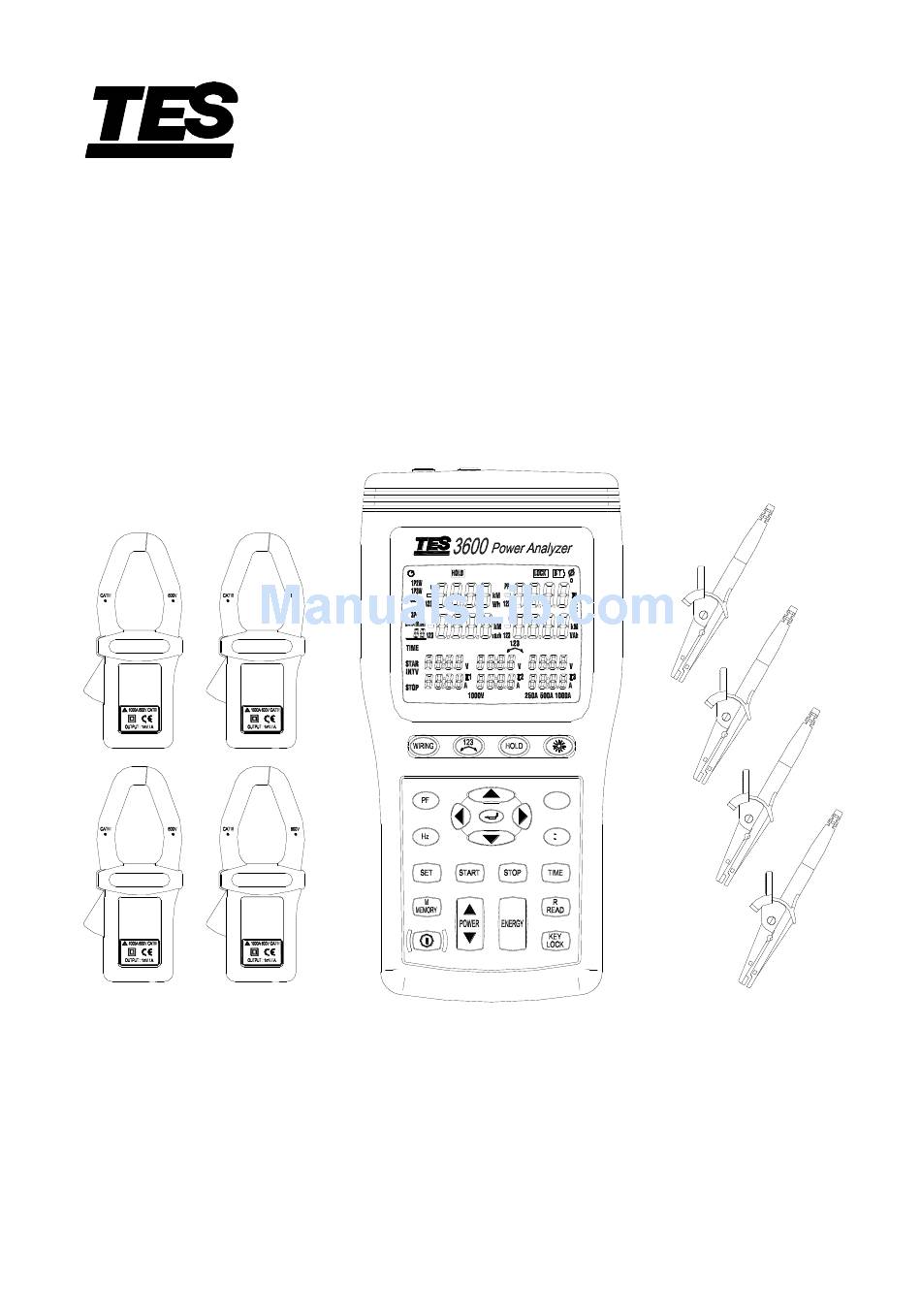

  • Page 1 3P4W POWER ANALYZER TES - 3600 INSTRUCTION MANUAL NO . U12 Y-M U23 D-h U3 m-s £c TES ELECTRICAL ELECTRONIC CORP. DataLoggerStore 1.877.766.5412 www. Shop for Data Logging products online at:...

  • Page 2: Table Of Contents

    CONTENTS Title Page SAFETY INFORMATION ................... 1 INTRODUCTION FEATURE ..................4 III. SPECIFICATIONS ......................4 3-1 Environment Conditions ..................4 3-2 Safety Specifications ..................... 5 3-3 General Specification .................... 5 3-4 Electrical Specification ..................7 PARTS & CONTROLS ....................10 4-1 Description of Parts &...

  • Page 3: Safety Information

    I. SAFETY INFORMATION This Instruction Manual provides information and warnings essential for operating this meter in a safe manner and for maintaining it in safe operating condition. Before using this meter, be sure to carefully read the following safety information. DANGER ...
  • Page 4 DANGER : Indicates that incorrect operation presents extreme danger of accident resulting in death or serious injury to the user. WARNING : Indicates that incorrect operation presents significant danger of accident resulting in death or serious injury to the user. CAUTION : Indicates that incorrect operation presents possibility of injury to the user or damage to the meter.
  • Page 5  Connecting meter WARNING  To prevent electric shock, turn the power off before connecting the test leads and then take measurements.  In order to prevent electrical shock and short – circuit accidents, shut off the power to the line to be measured before connecting the line to be measured to the voltage input terminals.

  • Page 6: Introduction Feature

    II. INTRODUCTION FEATURE The symptoms of poor power quality include intermittent lock-ups and resets, corrupted data, premature equipment failure, over-heating of components for no apparent cause, etc. The ultimate cost is in downtime, decreased productivity and frustrated personnel. Use power analyzer to power quality trouble shooting can help you keep your power system up and running, troubleshoot problems quickly, improve power efficient, manage energy costs, zero in on harmonics, optimize power system performance, improve power quality and analyze system data to design optimal...

  • Page 7: Safety Specifications

    CAT III : Measurement category in which measurements performed in the building installation. Safety Characteristics : Current Clamps, Model TES AC3600, to be used only with the Three-Phase Power Analyzer, Model TES-3600. This manual contains information and warning that must be followed by the user to ensure safe operation and to keep the meter and its accessories in a safe condition.
  • Page 8  Weight : Meter including battery → approx. 730g Current probe → approx. 333g  Accessories : 1. TES 3600 AC CURRENT ADAPTOR x 4pcs Category Rating : CAT III 600V per IEC61010-1, Pollution Degree2. : IEC 61010-1 2nd Edition and IEC61010-2-032 Input : AC 1000A maximum.

  • Page 9: Electrical Specification

    3-4 Electrical Specification Accuracy : ±(％ of reading ＋ number of digits) at 18℃ to 28℃ ( 64℉ to 82℉) with relative humidity to 80％. The current error is specified within the largest circle which can be drawn inside the jaw. ...
  • Page 10  Polarity display : For phase lag (LAG : current is slower than voltage) : No symbol. For lead phase (LEAD : current is faster than voltage) : “-”  Power Factor measurement (COS ψ ) : Range Resolution Calculated Accuracy 3dgt 0 ~ +1 0.001...
  • Page 11 Apparent power Range Resolution Timer interval Timer Accuracy accuracy 3.999KVAh 0.001KVAh 39.99KVAh 0.01KVAh 399.9KVAh 0.1KVAh 1.0%rdg20dgt ±50ppm (25 ℃ , 77 ℉ ) 1 sec 3.999MVAh 0.001MVAh 39.99MVAh 0.01MVAh 119.3MVAh 0.1MVAh  Measurement display : Display all apparent power energy (sum of absolute values).

  • Page 12: Parts & Controls

    IV. PARTS & CONTROLS 4-1 Description of Parts & Control keys ¢ » U12 Y-M U23 D-h U3 m-s £c DataLoggerStore 1.877.766.5412 www. Shop for Data Logging products online at:...
  • Page 13 1. Input for voltage terminals (U1, U2, U3, N). 2. Input for current probe jacks (I1, I2, I3, I4). 3. Plug for external AC adaptor power supply input. 4. Optical RS232 interface output. 5. LCD display. 6. WIRING key : Select the type of electrical system under test, press WIRING key to select 1P2W (To measure signal-phase two-wire power lines), 1P3W (To measure signal-phase three-wire power lines), 3P3W2M (To measure three-phase three-wire power line...

  • Page 14: Description Of Display

    TIME key display current data and time. 16.   Keys : Setting current date and time, or recall manual data memory to read memory data in cycles control keys. 17. START key : Start auto datalogging function. 18. STOP key : Stop auto datalogging function. Press START key resume recording in current data sets.
  • Page 15 BT : Low battery indication. ψ: Phase angle display. : Phase angle unit. 1P2W : Measure signal-phase two-wire power line indication. 1P3W : Measure signal-phase three-wire power line indication. 3P3W2M : Measure three-phase three-wire power line indication. 3P4W : Measure three-phase four-wire power line indication. P1 : Phase 1 active power measured display indication.
  • Page 16 Q3 : Phase 3 reactive power measured display indication. Qt : Total reactive power measured display indication and total reactive energy measured display indication. Kvar : Reactive power unit. Kvarh, Mvarh : Reactive energy unit. S1 : Phase 1 apparent power measured display indication. S2 : Phase 2 apparent power measured display indication.

  • Page 17: Operating Instruction

    V. OPERATING INSTRUCTION CAUTION  If possible, before connecting the meter to the electrical equipment to be tested, take off the electrical equipment’s power. DANGER  Voltage input connectors U1 to U3 are common for input connector N, each input connectors are not insulated. ...
  • Page 18  Before each use, inspect the Current Clamp. Look for cracks or missing portions of the clamp housing or output cable insulation. Also look for loose or weakened components. Pay particular attention to the insulation surrounding the jaws.  Never use the clamp on a circuit with voltages higher than 600V CAT III. ...

  • Page 19: Single-Phase 2-Wire (1P2W) Power System Measurement

    Warning To avoid shock or personal injury, keep fingers behind the tactile barrier, see Figure 1. Load Direction Arrow Alignment Marks Tactile Barrier Figure 1 5-2 Single-Phase 2-Wire (1P2W) Power System Measurement Application : Receptacle branch circuit Lighting loads  Troubleshooting electrical distribution system. ...
  • Page 20 A : Line, N : Neutral, G : Ground,  Face the arrow toward the load. Ⅲ 1P2W Wiring Connection Diagram 1. Press turn on the meter. 2. Press WIRING key to select the 1P2W electrical system under test, the 1P2W annunciator will be displayed.
  • Page 21 5. Frequency (Hz), Phase Angle (Θ), Ground Leakage Current (I4) and Power Factor (pF) measurement :  Hz : Press “Hz” key, PF1 will show “Hz”. Press “PF” key to exit.  Θ : Press “Θ” key, PF1 will show “ψ”. Press “PF” key to exit. ...

  • Page 22: Single-Phase 3-Wire (1P3W) Power System Measurement

    ※ U1 must be connected to voltage source during the measurement of U2, U3, I1, I2 and I3, because U1 is the main signal source of the whole meter measuring system. Otherwise you could not have any measurement from U2, U3, I1, I2 and I3. 5-3 Single-Phase 3-Wire (1P3W) Power System Measurement Application : Same as 1P2W power system measurement.
  • Page 23  Connect the yellow voltage test lead to the “U2” terminal.  Connect the I1 current probe output plug to the “I1” jack.  Connect the I2 current probe output plug to the “I2” jack.  If you want to measure ground leakage current, connect the I4 current probe output plug to the “I4”...
  • Page 24 7. Energy measurement :  Press “ENERGY” key, the “Pt”, “Qt”, “St” and “PFt” or “ψt” annunciator and energy integrate start time are displayed. The energy integrate value and the current time will be continuous accumulate. a). KW displays KWh b).

  • Page 25: Three-Phase 3-Wire (3P3W) Power System Measurement

    ※ U1 must be connected to voltage source during the measurement of U2, U3, I1, I2 and I3, because U1 is the main signal source of the whole meter measuring system. Otherwise you could not have any measurement from U2, U3, I1, I2 and I3. 5-4 Three-Phase 3-Wire (3P3W) Power System Measurement Application : Induction motors without adjustable speed drive.
  • Page 26 1. Press turn on the meter. 2. Press WIRING key to select the 3P3W2M electrical system under test, the 3P3W2M annunciator will be displayed. 3. Connect the voltage test leads and current probe to the meter.  Connect the black voltage test lead to the “N” terminal. ...
  • Page 27 7. Energy measurement:  Press “ENERGY” key, the “Pt”, “Qt”, “St” and “PFt” or “ψt” annunciator and energy integrate start time are displayed. The energy integrate value and the current time will be continuous accumulate. a). KW displays KWh b). KVAR displays KVARh c).

  • Page 28: Three-Phase 4-Wire (3P4W) Power System Measurement

    5-5 Three-Phase 4-Wire (3P4W) Power System Measurement Application : Same as 3P3W power system measurement. A, B, C : Line, N : Neutral, G : Ground,  Face the arrow toward the load. ¢ » 3P4W Wiring Connection Diagram 1. Press turn on the meter.
  • Page 29 4. Connect the voltage test leads and current probe to the electrical equipment to be tested. CAUTION  If possible, before connecting the voltage test leads and current probe to the electrical equipment to be tested, take off the electrical equipment’s power.
  • Page 30 7. Energy measurement:  Press “ENERGY” key, the “Pt”, “Qt”, “St” and “PFt” or “ψt” annunciator and energy integrate start time are displayed. The energy integrate value and the current time will be continuous accumulate. a). KW displays KWh b). KVAR displays KVARh c).

  • Page 31: Only One Current I4 Measurement

    5-6 Only One Current I4 Measurement Application : Measurement any wire current independent of voltage, the same as clamp meter application. ¢ » 1. Press key to turn on the meter. 2. Press “I4” key. 3. Connect the I4 current probe output plug to the “I4” jack. 4.

  • Page 32: Auto Datalogging Function Operation

    Store Manual data to memory :  Press MEMORY key one time store one sets displayed data to memory, the M annunciator display one time and the stored memory address will be displayed.  Maximum store memory capacity size is 99 sets.

  • Page 33: Phase Sequence Measurement

    5-9 Phase Sequence Measurement 1. Press turn on the meter. 2. Press WIRING key to select 3P4W mode. 3. Connect the voltage test leads to the meter.  Connect the red voltage test lead to the “U1” terminal.  Connect the yellow voltage test lead to the “U2” terminal. ...

  • Page 34: Maintenance

    The meter will automatically enter sleep mode approx. 30 minutes to save power consumption. 1. Disable auto power off procedure :  Press turn off the meter.  Press and hold down HOLD key, then press turn on the meter, the auto power function will be disabled, and the auto power off symbol “...

  • Page 35: Rs-232 Interface, Software Installation And Operation

    VII. RS-232 INTERFACE, SOFTWARE INSTALLATION AND OPERATION For the detailed instruction, please refer to the content of attached CD disk, which has the complete instruction of RS-232 interface, software operation and relevant information. DataLoggerStore 1.877.766.5412 www. Shop for Data Logging products online at:...
  • Page 36 TES ELECTRICAL ELECTRONIC CORP. 7F, No. 31, Lane 513, Rui Guang Road, Neihu Dist. Taipei. Taiwan, R. O. C. Tel : (02) 2799-3660 Fax : 886-2-2799-5099 E-Mail : tes@ms9.hinet.net http://www.tes.com.tw Jan-2008-9 DataLoggerStore 1.877.766.5412 www. Shop for Data Logging products online at:...
