TES 46 Instruction Manual

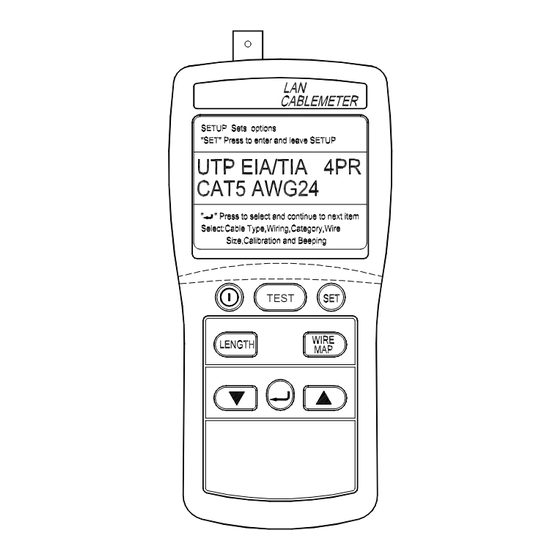

LAN CABLEMETER
46
INSTRUCTION MANUAL
TEST
T E S E L E C T R I C AL E L E C T R O N I C C O R P .

I. INTRODUCTION

The LAN Cable Tester is an easy and effective cable tester with the
ability to identify cable failures, check wiring, and measure cable length
in the UTP (Unshielded twisted pair cable), FTP (Foil – screened
(shielded twisted pair cable), and COAX (Coaxial cable) cables.
It not only identifies wiring faults, such as open wires, shorted wires,
miswires and split pairs, but also tests up to 8 different cables at one
end. A stored cable library provides quick access to common cable
types.
U.S. Pat. No. Des. 446,135
The Cable Tester comes with :
ð One remote identifier #1
RID46-234 (Optional for #2, #3 & #4)
RID46-5678 (Optional for #5, #6, #7 & #8 )
ð One patch cable RJ-45 to RJ-45 30 cm long.
ð RJ45-RJ45 female coupler/connector.
ð Instruction manual.
ð Carrying case & 6 pcs "AAA" 1.5V Battery.
The tester only connects to inactive cables. The input is protected to
1
withstand low voltages, prolonged connection to active telephone lines
and networks may damage the tester.
CAUTION
1
