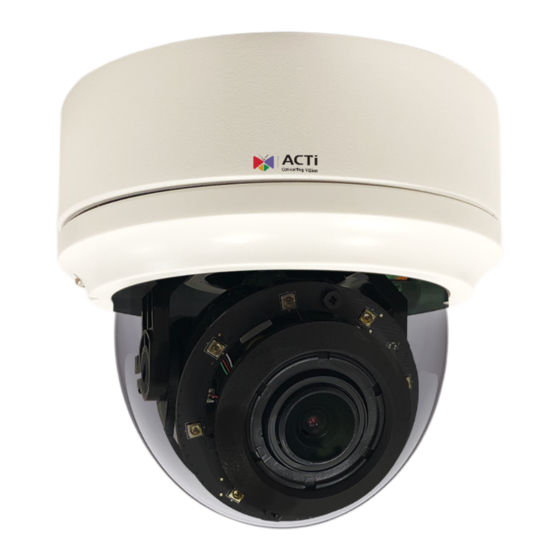

ACTi A826 Quick Installation Manual

This guide is for quick installing and connecting A826 Dome Camera. For more details, please refer to the Hardware
Manual.
Installation Notices
• This camera must be installed by qualified personnel and the installation should conform to all local codes.
• Do not replace batteries of the camera. Risk of explosion may occur if the battery is replaced by an incorrect type.
• Leaving a camera in an extremely high temperature surrounding environment can result in an explosion or the
leakage of flammable liquid or gas.
• Camera subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or
gas.
• To use an external power supply, please contact the camera manufacturer to confirm that the power supply complies
with the LPS requirements and shares the same power specifications with the camera.
• The means of power cord of adapter should be connected to a socket-outlet with earthing connection.

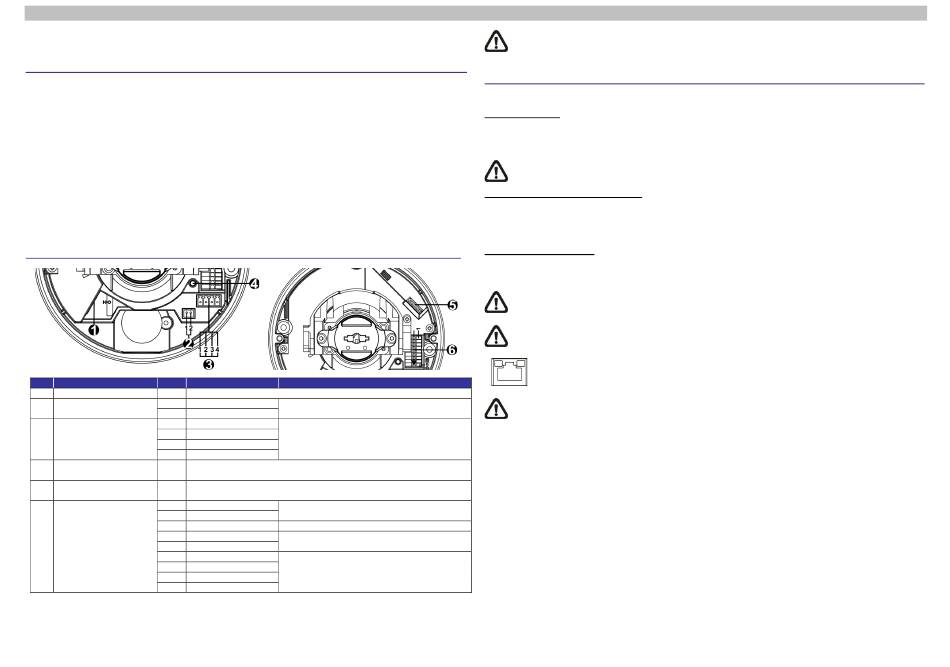

Camera Connectors
No. Connector Pin
1 RJ-45 - For network and PoE connections
1 -
2 Service connector
2 -
1 AC 24V 1
Power 2 AC 24V 2
3
(DC 12V / AC 24V) 3 DC 12V 1
4 DC 12V 2
Press the reset button with a proper tool for at least 20 seconds to restore
4 Reset Button -
the camera.
Insert the memory card into the card slot to store videos and snapshots.
5 Memory Card Slot -
Do not remove the memory card when the camera is powered on.
1 Audio In L
2 Audio In R
3 GND
4 Audio Out L
6 Alarm & Audio I/O 5 Audio Out R
6 Alarm Out +
7 Alarm Out −
8 Alarm In +
9 Alarm In −
A826 Dome Camera Quick Installation Guide
Definition Remarks
For service use only
Power connection
Audio In (Line In)
Ground connection
Audio Out (Line Out)
Alarm connection
#Do NOT connect external power supply to the
of the IP camera
alarm I/O connector
NOTE: It is not recommended to record with the memory card for 24/7 continuously, as it may not be able to
support long term continuous data read/write. Please contact the manufacturer of the memory card for
information regarding the reliability and the life expectancy.
Camera Cabling
Please follow the instructions below for cable connections.
Power Connection
Please use a DC 12V / AC 24V power adaptor and plug it to the camera and the power outlet. Alternatively, users can
use an Ethernet cable and connect it to the RJ-45 connector of the camera and a Power Sourcing Equipment (PSE)
switch.
NOTE: If PoE is used, make sure PSE is in use in the network.
Zero Downtime Power Switching (ZDT)
Please connect the camera to an AC 24V or PoE power source as the main power supply, and then connect DC 12V
as the secondary power supply. If the main power source fails, the camera will switch power input seamlessly to the
DC12V port until the main power source is restored.
Ethernet Cable Connection
Connect one end of the Ethernet cable to the RJ-45 connector of the camera, and plug the other end of the cable to
the network switch or PC.
NOTE: In some cases, Ethernet crossover cable might be needed when connecting the camera directly to the
PC.
NOTE: Check the status of the link indicator and the activity indicator LEDs. If the LEDs are unlit, please check
the LAN connection.
Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.
NOTE: The ITE is to be connected only to PoE networks without routing to the outside plant or equivalent
description.
.
