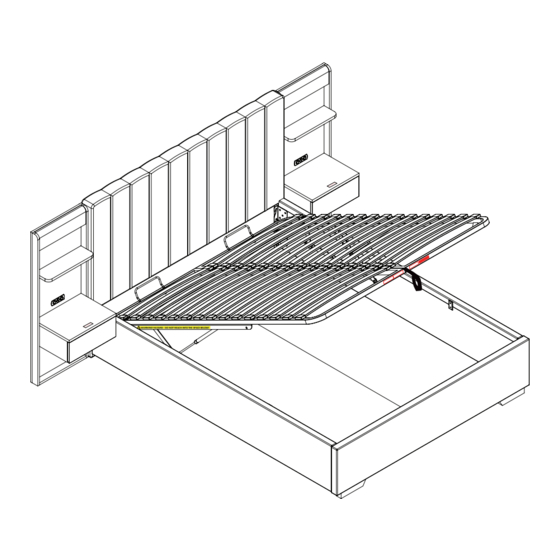

OWEN OTTOMAN BED

SECTION A: FITTING THE XL WINGS TO THE HEADBOARD

SECTION B: ASSEMBLING THE OTTOMAN STORAGE BED

SECTION C: ASSEMBLING THE SLEEPMOTION 200i ELECTRIC BED

1.5 hour approx
Two person
assembly time
MK1 221013
WARNING! HAZARD - DO NOT REACH INTO THE SPACE BELOW!
assembly

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OWEN and is the answer not in the manual?

Questions and answers

Related Manuals for DREAMS OWEN

Summary of Contents for DREAMS OWEN

  • Page 1: Section A: Fitting The Xl Wings To The Headboard

    OWEN OTTOMAN BED SECTION A: FITTING THE XL WINGS TO THE HEADBOARD SECTION B: ASSEMBLING THE OTTOMAN STORAGE BED WARNING! HAZARD - DO NOT REACH INTO THE SPACE BELOW! SECTION C: ASSEMBLING THE SLEEPMOTION 200i ELECTRIC BED 1.5 hour approx...

  • Page 2: Assembly Tips

    Thank you Hello, thanks for choosing to purchase your bed from Dreams - you're now on your way to your best ever night's sleep. Before you begin building your bed, please take a moment to read through the instructions and make sure that you've got all the relevant parts listed on the following pages.
  • Page 3 Back panel - Left Upper decor shelf Drawer unit Metal joint bracket USB /Switch module Inter nal 'Y' 12V lead Mains power adapter 220/240V AC > 12V DC Power in from (R) Owen Ottoman Storage Bed - Assembly guide 'A' - Page 3...
  • Page 4 Packed inside the acccessory box in PACK 5 is the hardware for the two XL Wings. Q x1 o x6 P x2 R x1 p x10 Clip Clip Screw Module Y Cable Power Adapter Owen Ottoman Storage Bed - Assembly guide 'A' - Page 4...

  • Page 5: Tools Required

    Left Wing Un-tie the two cables l x7 n x7 Pass plugs through the adjacent holes. Owen Ottoman Storage Bed - Assembly guide 'A' - Page 5...
  • Page 6 Fit x4 brackets (O) to each side of the headboard - tighten each of the four bolt sets (k, b & c) 90%. Do not tighten fully yet. Owen Ottoman Storage Bed - Assembly guide 'A' - Page 6...
  • Page 7 Install the 'Y' cable (Q) by using the velcro tabs. Slide the short lead through the hole at the bottom of the headboard. Owen Ottoman Storage Bed - Assembly guide 'A' - Page 7...
  • Page 8 AT THE TIME OF PURCHASE THE TYPE OF BED WOULD HAVE BEEN CHOSEN. FOR THE OTTOMAN BED PLEASE CAREFULLY FOLLOW THE NEXT SET OF INSTRUCTIONS - 'B' FOR THE ELECTRIC BED INSTRUCTIONS, PLEASE GO TO THE LAST SECTION - 'C' Owen Ottoman Storage Bed - Assembly guide 'A' - Page 8...
  • Page 9 • Do not attempt to lie on the mattress when the ottoman is in the raised position. • When lifting the ottoman remove all bedding except the fitted sheet . Owen Ottoman Storage Bed - Assembly guide 'B' - Page 9...
  • Page 10 With the headboard in it's final location, plug in the power adapter then prepare the headboard & footboard for assembly. 10mm c x2 10mm a x2 Fit both side rails to the headboard, tighten all bolts 90%. & Owen Ottoman Storage Bed - Assembly guide 'B' - Page 10...
  • Page 11 Fit the angled corner brackets and tighten the bolts 90%. & 100% Make certain the bed is squared up as shown in the diagram then tighten all bed assembly bolts 100%. Owen Ottoman Storage Bed - Assembly guide 'B' - Page 11...
  • Page 12 Loosely fit the bolt sets (f, b & c) . Using Allen key (d) tighten all six bolt sets 100%. Wrap the hand strap around the end of the frame. Owen Ottoman Storage Bed - Assembly guide 'B' - Page 12...
  • Page 13 Using three bolt sets on each side (i, c, c, b, & e), fix slat frame to the support bars but do not tighten fully yet. Bolt into centre of long holes Owen Ottoman Storage Bed - Assembly guide 'B' - Page 13...
  • Page 14 Tighten nuts with spanner (j) - but do not over-tighten. A small gap is needed so stems can move freely - this is important - see sketch below. SMALL GAP Owen Ottoman Storage Bed - Assembly guide 'B' - Page 14...
  • Page 15 Slat Dimensions (LWH mm ) Floor to top of slat 670 x 53 x 9 Double: 745 x 53 x 9 King: Top of slat to top of side rail Owen Ottoman Storage Bed - Assembly guide 'B' - Page 15...

  • Page 16: Parts List

    - 6‘’ (15cm), see Step 15 on the next page.. Connect the power and check the operation then, step by step, follow the bed assembly instructions, to build the bedstead around the sleepmotion 200i bed base. Owen Sleepmotion Lifestyle Bed - Assembly guide 'C' - Page 16...
  • Page 17 Prepare the headboard & footboard for assembly by inserting the screw sets (a, b & c). 10mm 10mm iii) Into the underside of the bed base, s crew in the eight 6" (15cm) legs as shown. Owen Sleepmotion Lifestyle Bed - Assembly guide 'C' - Page 17...
  • Page 18 Route the plug & lead under the headboard and connect the power lead to your wall socket - for safety this must be an earthed power supply. Raise the head and foot ends of the bed base using the remote control. Owen Sleepmotion Lifestyle Bed - Assembly guide 'C' - Page 18...
  • Page 19 Make certain the bed is squared up as shown in the diagram then tighten all bed assembly bolts 100%. Flatten the bed and check the gaps are as per the sketch below 30mm 20mm Owen Sleepmotion Lifestyle Bed - Assembly guide 'C' - Page 19...

  • Page 20: Care And Maintenance

    Floor to top of base Top of base to top of side rail Owen Sleepmotion Lifestyle Bed - Assembly guide 'C' - Page 20 Care and maintenance Here are some tips to keep your new bed in tip-top condition Cleaning To clean your new bed, we'd advise using a warm damp cloth or if fabric, remove dust using a low suction vacuum cleaner.
  • Page 21 Little dreamers Keep the little ones entertained while you assemble your new purchase.
