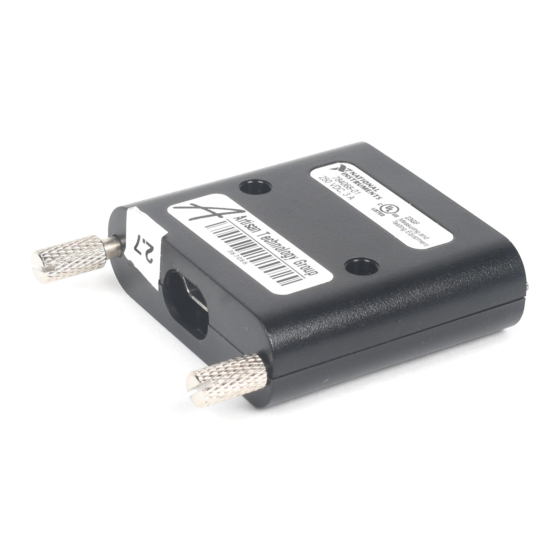

TB-4163 Features TB-4163 User Guide This document explains how to install and use the TB-4163 terminal block with a PXIe-4163 source measure unit (SMU) and includes TB-4163 specifications. The TB-4163 terminal block is used for screw terminal connections with the PXIe-4163 SMU. -
Page 5: Getting Started With The Tb-4163
French for compliance with Canadian requirements. Kit Contents and Other Equipment Your kit includes an assembled TB-4163. In addition, you will need the following items not included in your TB-4163 kit to install and use the TB-4163. PXIe-4163 ■... - Page 6 Output LO. For all other connections, use signal wires with a wire gauge of 28 to 24 AWG. 2. Disassemble the TB-4163. a. Unscrew the three screws on the top of the TB-4163 to remove the top cover. b. Unscrew the two screws securing the strain relief to remove the strain relief.
- Page 7 13HS 23HI 11HI 13HI 23HS 11HS 12HS 18-23LS 6-11LS 12HI Table 1. TB-4163 Signals and PXIe-4163 Pin Map Screw Terminal Signal PXIe-4163 Pin Connector 1 CH 0-23 Output LO Calibration HI 0-5LS CH 0-5 Sense LO CH 5 Sense HI...
- Page 8 TB-4163 Features Screw Terminal Signal PXIe-4163 Pin CH 3 Output HI CH 2 Sense HI CH 2 Output HI CH 1 Sense HI CH 1 Output HI CH 0 Sense HI CH 0 Output HI Connector 2 CH 6 Output HI...
- Page 9 CH 18-23 Sense LO c. Ensure that none of the stripped wire is outside of the screw terminal. 4. Reassemble the TB-4163. a. Bundle the wires together under the strain relief and install the strain relief by tightening the two screws removed in...
- Page 10 0.3 Nm (2.7 lb · in.). 5. Connect the TB-4163 to the PXIe-4163. a. Align the male D-SUB connector on the back of the TB-4163 and the female D-SUB connector on the front of the PXIe-4163 and attach.
-
Page 11: Tb-4163 Specifications
Figure 1. Installed TB-4163 Uninstalling the TB-4163 1. Disconnect all signals to the PXIe-4163. 2. Loosen the thumbscrews on the front of the TB-4163 and detach the terminal block from the front of the PXIe-4163. TB-4163 Specifications These specifications apply to the TB-4163 terminal block for use with the PXIe-4163. -
Page 12: Screw Terminal Wiring
TB-4163 Features Specifications are Nominal unless otherwise noted. Screw Terminal Wiring Wire gauge Signal wire 28 to 24 AWG Ground wire 20 AWG Length of bare wire (insulation stripped) from 0.5 mm to 0.6 mm (0.020 in. to 0.025 in.) -
Page 13: Compliance And Standards
TB-4163 Features Operating 10% to 90%, noncondensing Storage 5% to 95%, noncondensing Pollution Degree Maximum altitude 2,000 m (800 mbar) (at 25 °C ambient temperature) Environmental Management NI is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial to the environment and to NI customers. -
Page 14: Export Compliance
TB-4163 Features Export Compliance This product is subject to control under the U.S. Export Administration Regulations (15 CFR Part 730 et. seq.) administered by the U.S. Department of Commerce's Bureau of Industry and Security (BIS) (www.bis.doc.gov) and other applicable U.S. - Page 15 NI product. Product registration facilitates technical support and ensures that you receive important information updates from NI corporate headquarters is located at 11500 N Mopac Expwy, Austin, TX, 78759-3504, USA. ni.com © 2023 National Instruments Corporation.
