- Page 1 PXIe-4163 2022-06-30...
-
Page 2: Table Of Contents
Why Is the ACCESS LED Off When the Chassis Is On?..... . . 16 What Should I Do if the PXIe-4163 Fails the Self-Test?..... . 17 Where To Go Next. -
Page 3: Pxie-4163 Purpose And Introduction

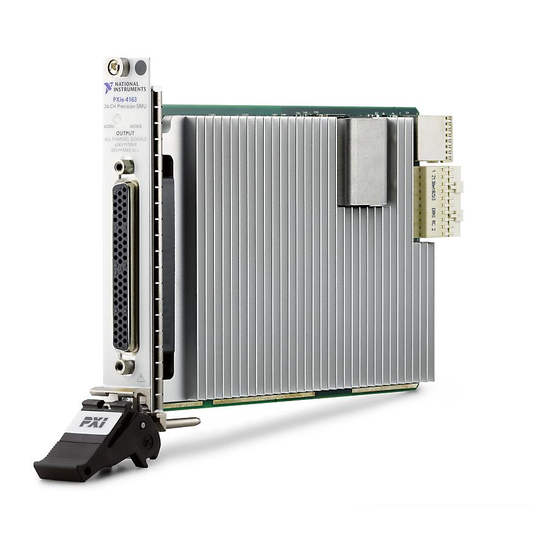

PXIe-4163 PXIe-4163 Purpose and Introduction This document explains how to install, configure, and test the PXIe-4163. The PXIe-4163 ships with NI-DCPower driver software, which you can use to program the module. Note Before you begin, install and configure your chassis and controller. -
Page 4: Other Equipment
Store the module in the antistatic package when the module is not in use. Other Equipment There are several required items not included in your PXIe-4163 kit that you need to operate the PXIe-4163. Your application may require additional items not included in your kit to install or operate your PXIe-4163. -
Page 5: Installing The Software
Installing the Software You must be an Administrator to install NI software on your computer. 1. Install an ADE, such as LabVIEW or LabWindows™/CVI™. 2. Visit ni.com/downloads/drivers and search for NI-DCPower. © National Instruments... -
Page 6: Installing The Pxie-4163
PXIe-4163 3. Download the latest version of NI-DCPower by clicking Download and then running the executable (.exe) file. Driver support for the PXIe-4163 was first available in NI-DCPower 17.6. 4. Follow the instructions in the installation prompts. Note Windows users may see access and security messages during installation. - Page 7 12. Cover all empty slots using EMC filler panels or fill using slot blockers to maximize cooling air flow, depending on your application. 13. Power on the chassis. Related tasks Why Is the ACCESS LED Off When the Chassis Is On? ■ © National Instruments...
-
Page 8: Pxie-4163 Pinout And Leds
PXIe-4163 PXIe-4163 Pinout and LEDs Front Panel Refer to the following figures and tables for information about the PXIe-4163 front panel connector pins, channels, and LEDs. PXIe-4163 24-CH Precision SMU ACCES S VOLTAGE OUTPUT ALL CHANNEL SIGNALS ± 24V MAX... - Page 9 Refer to the driver software for possible sources. The device will not operate until the error is cleared and/or the device is reset. Pinout The following figure and table provide detailed signal information for the PXIe-4163 connector. Calibration HI...
- Page 10 PXIe-4163 Bundle Channel Signal Description Output HI Sense HI Output HI Sense HI Output HI Sense HI Output HI Sense HI Output HI Sense HI Output HI 0 to 5 Sense LO Sense HI Output HI Sense HI Output HI...
- Page 11 Output HI Sense HI Output HI Sense HI Output HI Sense HI Output HI Sense HI Output HI 18 to 23 Sense LO A, B, C, D 0 to 23 Output LO — — Calibration HI Void © National Instruments...
-
Page 12: Configuring The Pxie-4163 In Max
PXIe-4163 Cable Bundles The PXIe-4163 has 24 channels organized into four cable bundles (A, B, C, D) for use with associated cable accessories. The following figure and table provide detailed bundle information. Channel 7 Grouping Output HI Output HI Output HI... -
Page 13: Self-Calibrating The Pxie-4163
The PXIe-4163 modules are externally calibrated at the factory but you should perform a self-calibration in all of the following situations: After first installing the PXIe-4163 in a chassis ■ After any module that is in the same chassis as the PXIe-4163 is installed, ■ uninstalled, or moved © National Instruments... -
Page 14: Programming The Pxie-4163
PXIe-4163 When the PXIe-4163 is in an environment where the ambient temperature ■ varies or the PXIe-4163 temperature has drifted more than ±5 °C from the temperature at the last self-calibration Within 24 hours of the previous self-calibration ■ Related tasks What Should I Do if the PXIe-4163 Fails the Self-Test? ■... -
Page 15: Troubleshooting
If an issue persists after you complete a troubleshooting procedure, contact NI technical support or visit ni.com/support. What Should I Do if the PXIe-4163 Doesn't Appear in MAX? 1. In the MAX configuration tree, expand Devices and Interfaces. 2. Expand the Chassis tree to see the list of installed hardware, and press <F5> to refresh the list. -
Page 16: Why Is The Access Led Off When The Chassis Is On
Select Start » Control Panel » Device Manager. 5. Verify the PXIe-4163 appears in the Device Manager. 1. Under an NI entry, confirm that a PXIe-4163 entry appears. Note If you are using a PC with a device for PXI remote control system, under System Devices, also confirm that no error conditions appear for the PCI-to-PCI Bridge. -
Page 17: What Should I Do If The Pxie-4163 Fails The Self-Test
6. Verify that the module appears in MAX. 7. Reset the module in MAX and perform a self-test. Related information PXIe-4163 Pinout and LEDs ■ What Should I Do if the PXIe-4163 Fails the Self-Test? 1. Restart the system. 2. Launch MAX. Failed self-test ■... -
Page 18: Worldwide Support And Services
1 866 ASK MYNI (275 6964). For support outside the United States, visit the Worldwide Offices section of ni.com/niglobal to access the branch office websites, which provide up- to-date contact information. ni.com © 2022 National Instruments Corporation.
