Summary of Contents for Zoom 4300

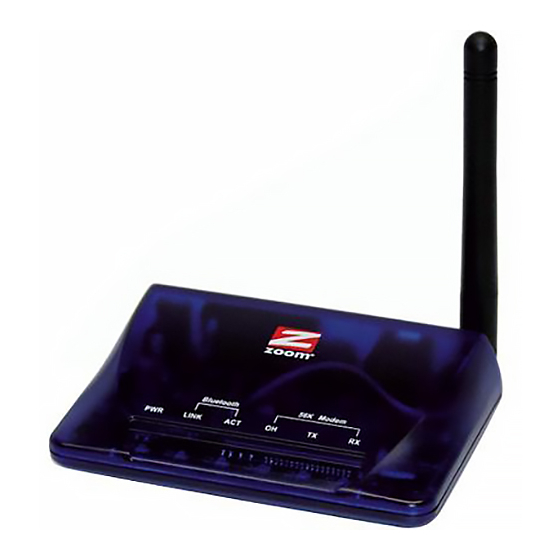

  • Page 1: Wireless Modem

    Wireless Modem with Bluetooth Bluetooth Bluetooth Bluetooth ® ® ® ® U S E R ’ S M A N U A L...
  • Page 2 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Zoom is under license. Bluetooth Qualified Products List (QPL) No.: BQ10007276 Other trademarks and trade names are those of their respective owners.
  • Page 3: Table Of Contents

    Contents ... 4 ETTING TARTED ... 4 ACKAGE ONTENTS ... 4 YPICAL OMPUTER NSTALLATION ONNECT THE ODEM ARDWARE LUETOOTH ONNECTION AOL ...11 NSTALLING PDA I YPICAL NSTALLATION ...14 ONNECT THE ARDWARE ETWORKING AND ET UP FOR YOUR NTERNET ERIAL NSTALLATION NSTALLING THE OFTWARE ON A NTERNET...
  • Page 4: Getting Started

    This User’s Manual is organized according to the different ways that you can use your Bluetooth modem: Wirelessly with a Personal Digital Assistant (PDA) Wirelessly with a Windows With a traditional serial cable to a PC, Macintosh, or Linux- based machine. Package Contents Before beginning, make sure that your package includes the following items.
  • Page 5 Note: Your Zoom modem is a Bluetooth Class 1 modem. Many of the Bluetooth adapters that are built into computers today are Class 3. The Zoom modem works with all three classes of Bluetooth devices, but you should be aware of the differences.
  • Page 6: Typical Computeri

    Typical Computer Installation This chapter is for users with Windows desktop or notebook computers. If you have a PDA, go to page 14. There are a few basic steps associated with setting up your Bluetooth wireless modem and establishing a dial-up connection to the Internet.
  • Page 7 Bluetooth is installed, it will be listed under Device Manager. Alternately, you can go to Start | Settings | Control Panel, and click Add/Remove Programs. If Bluetooth is installed, its name will appear in the list. If you need to install a Bluetooth adapter, the basic instructions are similar, regardless of the brand of adapter.
  • Page 8 A folder with the same name displays. Double-click the Find Bluetooth Devices icon. The Bluetooth software begins searching for any surrounding remote devices (for example, your Zoom modem). 3 3 3 3 When the software discovers your modem, it places an icon named Bluetooth Modem in your Bluetooth folder.
  • Page 9 4 4 4 4 A Bluetooth PIN Code Required box appears in your system tray, stating the need for a PIN (personal identification number). Windows needs this PIN to link your Bluetooth device and computer. (A PIN is sometimes called a passkey.) Click this dialog box.
  • Page 10 Double-click Dial-up Networking on BluetoothModem. If you intend to use your modem with America Online (AOL) CD software that has not yet been installed, skip to page 11. Note: If you want to use the modem’s faxing capability, refer to page 12. 7 7 7 7 If this is your first time using a dial-up connection, a Location Information dialog box will display.
  • Page 11 That’s it! You’ve installed your modem for typical wireless use. If you would like more information, consult the context-sensitive Bluetooth help included with your adapter. You can also visit our Web site to check for updated information. To use your wireless modem for faxing, refer to page 12. If you sometimes want to use your modem with a cable connecting to your computer, turn to page 17.
  • Page 12 TCP/IP, and Home Network. Select Modem (telephone line connection). Note: If multiple modems are installed on your computer, you will see multiple Modem entries. Double-click each one until you locate the one that is using the Bluetooth modem’s COM port. Once the AOL CD installation is complete, you can double- check your modem’s COM port connection at any time.
  • Page 13 2 2 2 2 Right-click Fax on BluetoothModem and then select Connect Fax to display the following dialog box. Click OK. 3 3 3 3 You can now use your computer’s built-in faxing software or any third-party faxing software to send a fax. Note: Once you’ve sent a fax, your faxmodem connection will automatically disconnect.
  • Page 14: Typical Pda Installation

    Typical PDA Installation The basic steps associated with setting up your Bluetooth wireless modem and your PDA include the following tasks: Connect the hardware. Set up Bluetooth for Dial-up Networking (DUN) and establish a connection between the PDA and the modem. Create a dial-up connection to the Internet.
  • Page 15: Nstallation

    Provider (ISP) requires for access to the Internet. 1 1 1 1 Because the PDA has found the Zoom modem, the Bluetooth icon in the system tray is now blue (instead of gray with a red From Bluetooth Shortcuts, tap Create New Connection.
  • Page 16 Tip: You can mount your modem on the wall using the supplied Velcro strips. For each Velcro pair, peel off one side of the adhesive paper backing and attach the Velcro strip to the bottom of the modem—be careful not to cover the Reset button.
  • Page 17 Serial Port Installation If you want to use yourBluetooth modem connected to your computer with a serial cable, you can do so by following these instructions. Note that a switch on the modem lets you select Bluetooth “wireless” or “wired” operation. If you are using Windows, be sure to install the setup software before installing the hardware.
  • Page 18 Connect the Hardware 1 1 1 1 On the back of the modem, move the selectable switch all the way to the right, from BT to RS-232. 2 2 2 2 Plug one end of the supplied phone cord into the modem’s Line port, and plug the other end into a telephone wall jack.
  • Page 19: Onnection

    Control Panel | Modems. From the Connect via drop-down menu, select the modem’s serial port; and then from the Modem drop-down menu, select Zoom V-Series. Click Save. OS X.1 (and higher): Go to System Preferences | Network and click the Modem tab. From the Show drop- down menu, select the modem’s serial port;...
  • Page 20: Windows Pc

    Removing the Modem Only do the following if for some reason you want to remove the modem from your system. Windows PC Users: 1 1 1 1 From the computer desktop, go to Start | Settings | Control Panel and then double-click Add or Remove Programs. 2 2 2 2 Select your Bluetooth modem (you may have to scroll down the list) and click Remove.
  • Page 21: Onnection

    Appendix A Front and Back Panel The front of your Bluetooth modem includes several lights. The table below defines these lights. Light Description Lights when the power adapter is plugged into the modem’s back panel power port and power is on Bluetooth Lights when the Bluetooth modem is linked to a remote LINK...
  • Page 22: Regulatory Information

    Appendix B Regulatory Information U.S. FCC Part 68 Statement This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. The unit bears a label on the back which contains among other information a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.
  • Page 23 This equipment cannot be used on public coin phone service provided by the telephone company. Connection to Party Line Service is subject to state tariffs. Contact your state public utility commission, public service commission, or corporation commission for more information. U.S.
  • Page 24: Important Notice

    To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Industry Canada CS03 Statement Notice: The Industry Canada label identifies certified equipment.
  • Page 25: Declaration Of Conformity

    Declaration of Conformity The manufacturer declares under sole responsibility that this equipment is compliant to Directive 1999/5/EC (R&TTE Directive) via the following standards. The product is CE marked. Standard Issued EN 60950 2000 EN 55022 1998 EN 55024 1998 EN 61000-3-2 2000 EN 61000-3-3 1998/A1: 2001...
  • Page 26 3083-B 27290 ©2003...
