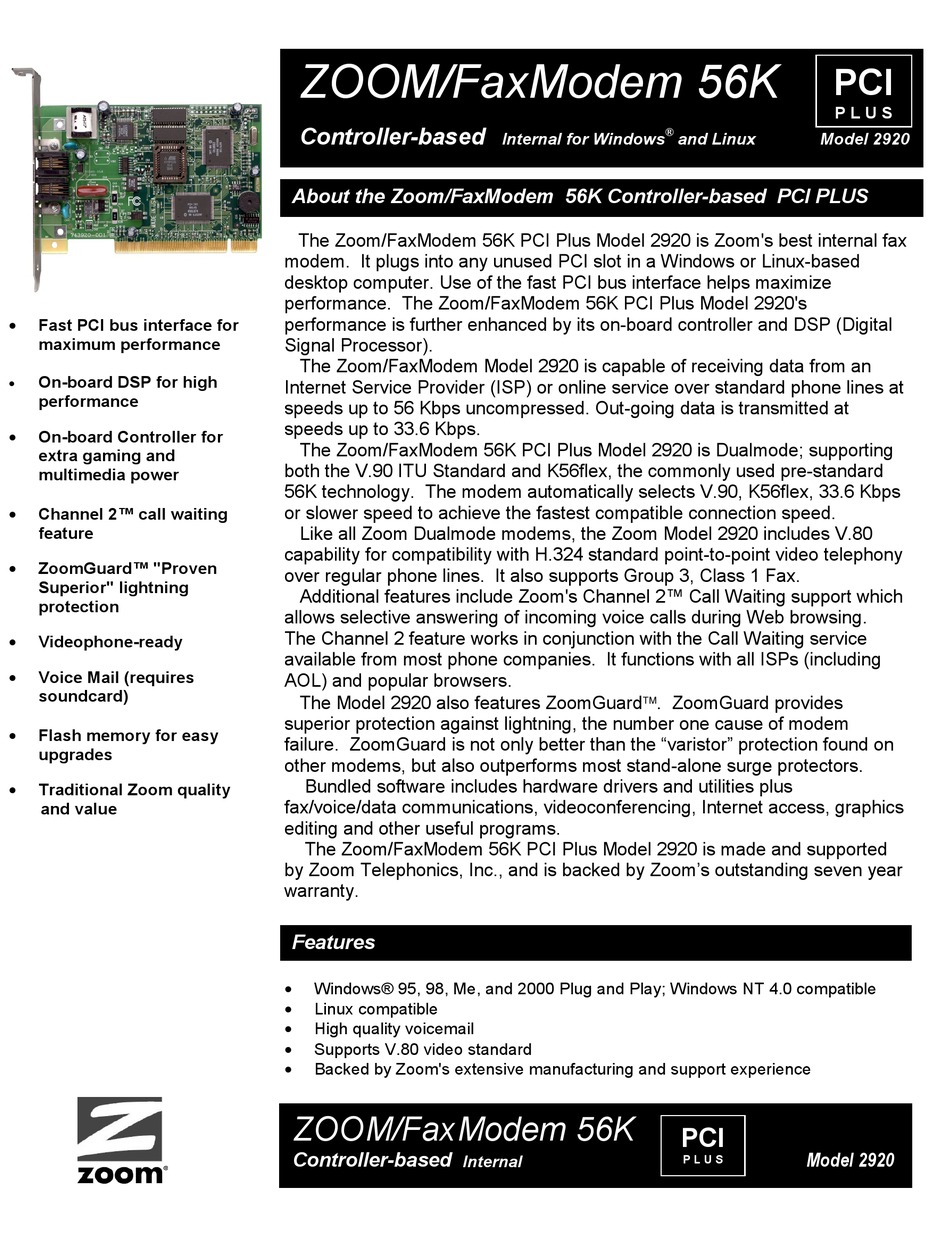

Zoom 2920 Specification Sheet

•
Fast PCI bus interface for
maximum performance
On-board DSP for high
•
performance
•
On-board Controller for
extra gaming and
multimedia power
•
Channel 2™ call waiting
feature
• ZoomGuard™ "Proven
Superior" lightning
protection
•
Videophone-ready
•
Voice Mail (requires
soundcard)
•
Flash memory for easy
upgrades
• Traditional Zoom quality
and value
ZOOM/FaxModem 56K
Controller-based

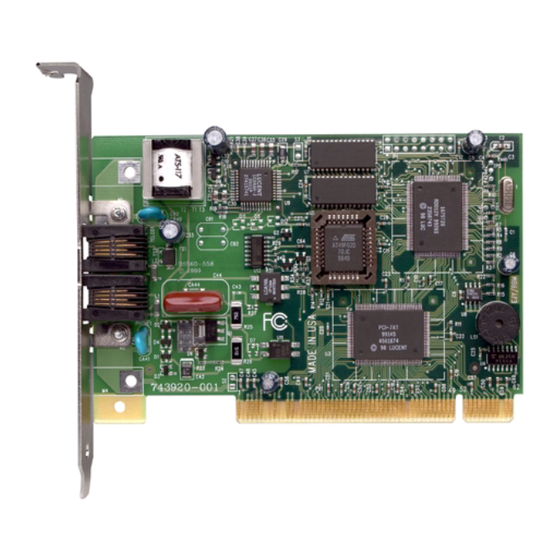

About the Zoom/FaxModem 56K Controller-based PCI PLUS
The Zoom/FaxModem 56K PCI Plus Model 2920 is Zoom's best internal fax
modem. It plugs into any unused PCI slot in a Windows or Linux-based
desktop computer. Use of the fast PCI bus interface helps maximize
performance. The Zoom/FaxModem 56K PCI Plus Model 2920's
performance is further enhanced by its on-board controller and DSP (Digital
Signal Processor).
The Zoom/FaxModem Model 2920 is capable of receiving data from an
Internet Service Provider (ISP) or online service over standard phone lines at
speeds up to 56 Kbps uncompressed. Out-going data is transmitted at
speeds up to 33.6 Kbps.
The Zoom/FaxModem 56K PCI Plus Model 2920 is Dualmode; supporting
both the V.90 ITU Standard and K56flex, the commonly used pre-standard
56K technology. The modem automatically selects V.90, K56flex, 33.6 Kbps
or slower speed to achieve the fastest compatible connection speed.
Like all Zoom Dualmode modems, the Zoom Model 2920 includes V.80
capability for compatibility with H.324 standard point-to-point video telephony
over regular phone lines. It also supports Group 3, Class 1 Fax.
Additional features include Zoom's Channel 2™ Call Waiting support which
allows selective answering of incoming voice calls during Web browsing.
The Channel 2 feature works in conjunction with the Call Waiting service
available from most phone companies. It functions with all ISPs (including
AOL) and popular browsers.
The Model 2920 also features ZoomGuard. ZoomGuard provides
superior protection against lightning, the number one cause of modem
failure. ZoomGuard is not only better than the "varistor" protection found on
other modems, but also outperforms most stand-alone surge protectors.
Bundled software includes hardware drivers and utilities plus
fax/voice/data communications, videoconferencing, Internet access, graphics
editing and other useful programs.
The Zoom/FaxModem 56K PCI Plus Model 2920 is made and supported
by Zoom Telephonics, Inc., and is backed by Zoom's outstanding seven year
warranty.
Features
•
Windows® 95, 98, Me, and 2000 Plug and Play; Windows NT 4.0 compatible
•
Linux compatible
•
High quality voicemail
•
Supports V.80 video standard
•
Backed by Zoom's extensive manufacturing and support experience
ZOOM/FaxModem 56K
Controller-based
Internal
®
Internal for Windows and Linux
PCI
PCI
P L U S
Model 2920
Model 2920
P L U S
