5.3.1.3 Cabling
7) Loosening 6 screws from left side panel.

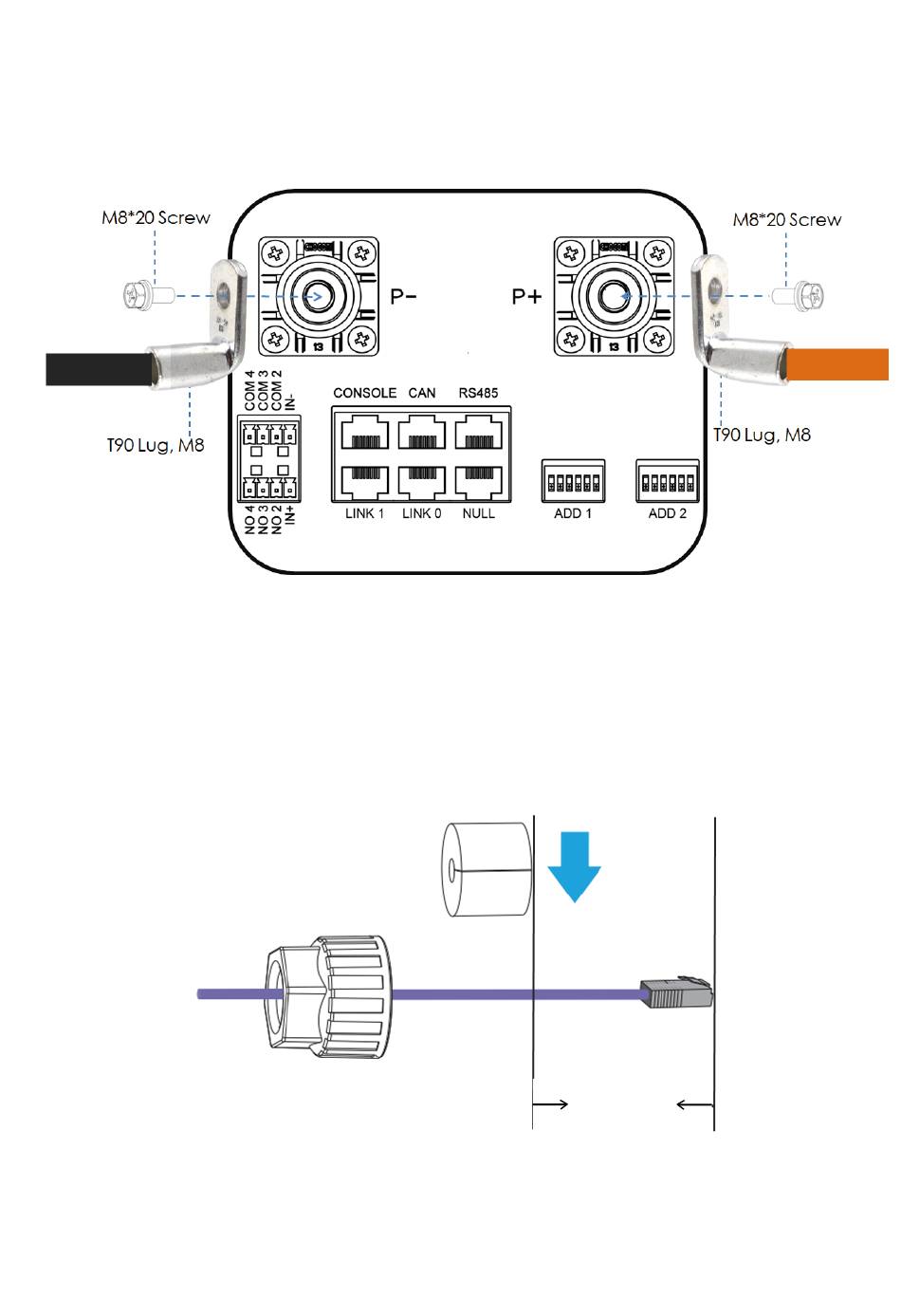

Align the T90 lug end of the external power cables to power terminals on Pi LV1 BCU,
positive to positive and negative to negative, fix the lug to terminal with M8*20 screws.
Note:
Before connecting the power cable, connect and disconnect the cable to identify the positive
and negative terminal, then make a mark respectively. After the cable is connected, measure
whether there is short-circuit or reverse connection.
8) Stick the EVA tape to external communication cable, 135mm/5.3" away from RJ45
connector end. Then to connect it to CAN/RS485 port.
Please refer to Chapter 6.2 for information of communication ports.
135mm/5.3''
19
