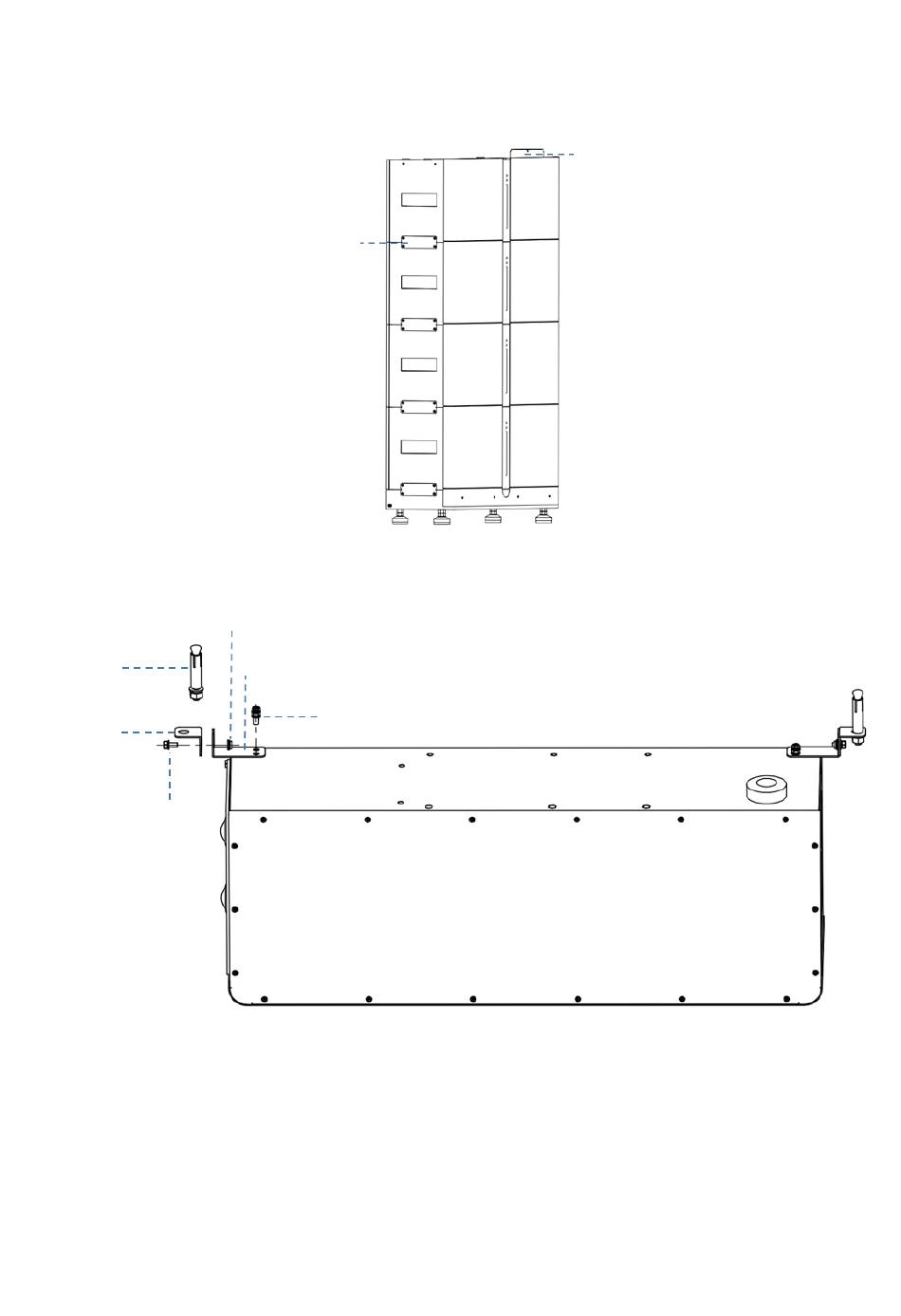

3) Repeat the operations. The corresponding interface terminals being stacked up one by
one to connect Pi LV1 BMUs (team lift). Fix neighbouring modules to each other with Locking
Pieces and M5x10 Screws.
Interface Terminals
Locking Piece
+
M5*10 Screws
4) Install BCU part of wall bracket*2 to back of Pi LV1 BCU with M5*12 Bolts*6.
M5 Hexagon
flange nut*1pc
Expansion
BCU part of wall bracket
Screw
M5*12 Bolt*2pc
Wall part of
wall bracket
BCU Back
M5*12
Bolt*1pc
BCU TOP
5) Placing Pi LV1 BCU on top of the system and hold the wall part of wall bracket. Use pencil
to mark expansion screw position on wall for electricity drill work. Ensure there's no cables laid
in the wall to avoid damage to the cables when drilling.
17
