Ronix 8601 Manual

Li-ion impact driver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LI-ION IMPACT DRIVER
8601

Advertisement

Table of Contents
loading

Related Manuals for Ronix 8601

Summary of Contents for Ronix 8601

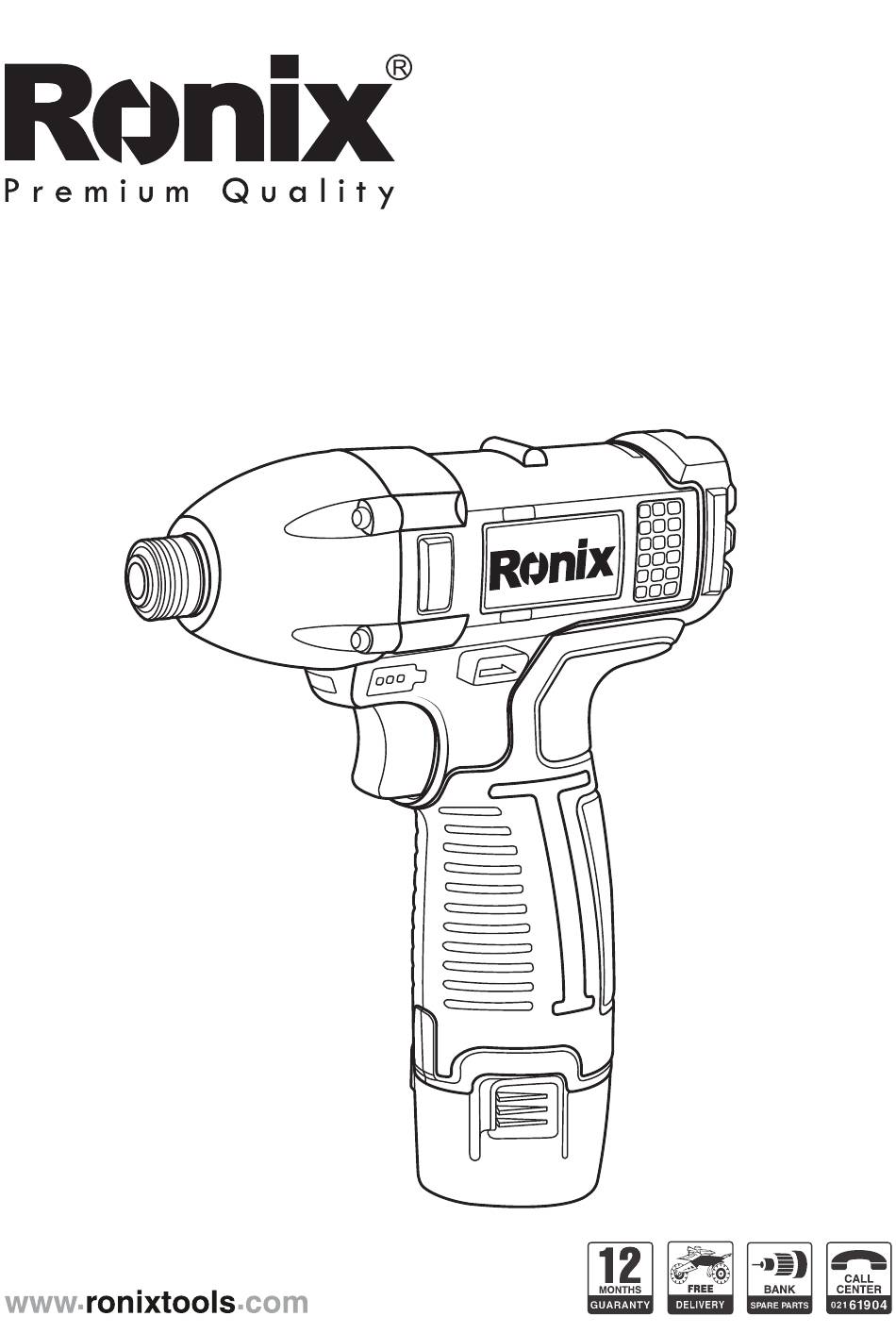

  • Page 1 LI-ION IMPACT DRIVER 8601...

  • Page 2: Technical Specifications

    TECHNICAL SPECIFICATIONS Drill voltage Charging voltage 220-240V~50/60Hz Machine screw M4-M8 Capacities Standard bolt M4-M12 Toolholder 6.35mm No-load speed 0-2000min-1 Impacts per minute 0-2800 Max. torque 100NM Charging time Battery capacity 1.5AH PART LIST Hammering Case Bit Holder Reverse Switch LED Ligth Charge Indicator Ligth On/Off Switch Handle...

  • Page 3: General Power Tool Safety Warnings

    - Due to our continuing programme of research and development, the specifications herein are subject to change without notice without notice. NOTE: Specifications may differ from country to country. GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

  • Page 4: Personal Safety

    - Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. - When operating a power tool outdoors, use an extension cord suitable for outdoor use.
  • Page 5 collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. POWER TOOL USE AND CARE - Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

  • Page 6: Additional Safety Warnings

    any other battery packs may create a risk of injury and fire. - When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.

  • Page 7: Residual Risks

    RESIDUAL RISKS Even when the power tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the power tool’s construction and design: a) Health defects resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly maintained.
  • Page 8 presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. 3) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CARTRIDGE 1) Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
  • Page 9 2) Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a «live» wire will make exposed metal parts of the tool «live» and shock the operator. 3) Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord.
  • Page 10 immediately. It may result in a risk of overheating, possible burns and even an explosion. 4) If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight. 5) Do not short the battery cartridge: (1) Do not touch the terminals with any conductive material.

  • Page 11: Functional Description

    Double insulated for additional protection. Read the instruction manual before using. CE conformity. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
  • Page 12 - Always switch off the tool before installation or removal of the battery cartridge. - To remove the battery cartridge, withdraw it from the tool while sliding the button on the front of the cartridge. - To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place.
  • Page 13 Lamp NOTE: - Use a dry cloth to wipe the dirt off the lens of lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination. REVERSING SWITCH ACTION This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counter clock wise roation.
  • Page 14 ASSEMBLY CAUTION: - Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. INSTALLING OR REMOVING DRIVER BIT Use only the driver bit or socket bit Use only the driver bit or socket bit shown in the figure.

  • Page 15: Operation

    OPERATION The proper fastening torque may differ depending upon the kind or size of the screw/bolt, the material of the workpiece to be fastened, etc. The relation between fastening torque and fastening time is shown in the figures. Hold the tool firmly and place the point of the driver bit in the screw head.
  • Page 16 Before starting your job, always perform a test operation to determine the proper fastening time for your screw. The fastening torque is affected by a wide variety of factors including the following. After fastening, always check the torque with a torque wrench. 1) When the battery cartridge is discharged almost completely, voltage will drop and the fastening torque will be reduced.
