7.3.5 Setups

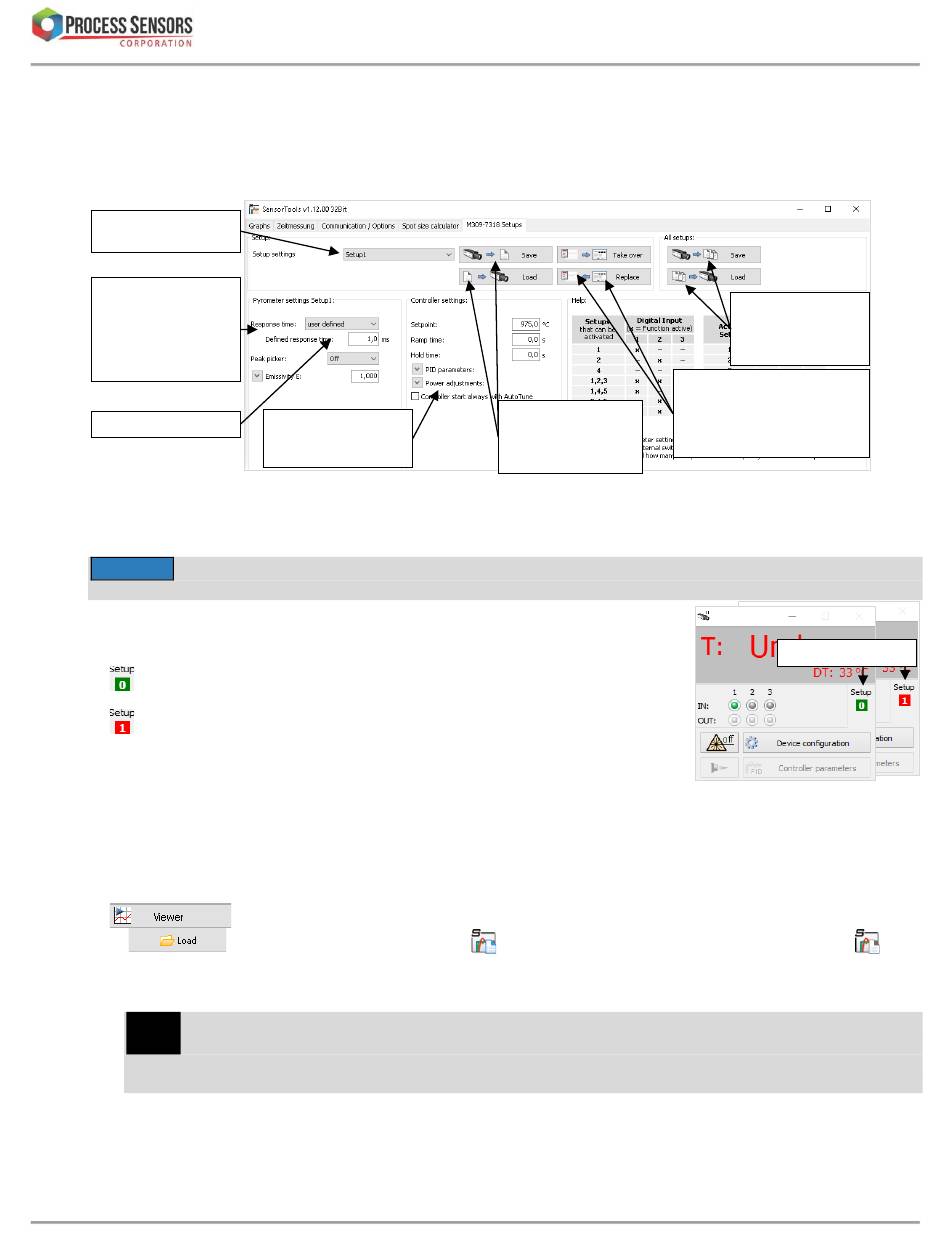

Up to 7 different parameter settings (setups) can be stored in the pyrometer and activated via digital inputs (i.e.
via external switch), (see
are to be used, one, two or all three inputs have to be used (see under
Inputs / Outputs).
Selecting of the setup
to be edited.
Enter parameters of
the selected setup
(changes are saved di-
rectly into the pyrome-
ter with the "Enter" key
or tab key.
Pyrometer parameters
The parameters for the selected setup can be entered directly in this window using the keyboard, with Enter or
the Tab key they are transferred to the pyrometer.
Setups can be saved individually or as a complete list to the PC and loaded from there.
|NOTICE|
With an active Setup, the pyrometer operates using the setup values.
All adjustment possibilities in the control window are hidden.
Active setups are displayed:
▪
At least 1 digital input is set to "Parameter selector", but no input is
activated (inputs to "low").
▪
At least 1 digital input is set to "Parameter selector" and at least 1 input
is active ("high").
7.4

Graphical Measurement Data Playback in the SensorTools Viewer

The SensorTools Viewer is an independent program for the graphic display and evaluation of measured value
data. Up to four r2b files can be displayed in each viewer instance.
To open:
▪ From the Windows program directory "SensorTools".
▪
-
figuration format *.stvcfg). Data files are created via the SensorTools capture function, workspace files
store a view of multiple data files, e.g. to be sent as a comparative detail view. When saving a workspace
file, you can automatically create a folder that will save the snippets of each data file for easy transfer.
|INFO|
Loading an stvcfg file deletes already loaded and displayed r2b files from the Viewer.
|INFO|
Simply clicking on "Load" always opens the last used file path.
Shift + click leads to the standard working directory (can be set in SensorTools in the "Communication /
Options" tab, see 7.5).
- Loading via drag-and-drop: Data or workspace files can be dragged directly into the Viewer for example
from Windows Explorer.
▪ Double-clicking on a data file or workspace file opens its own Viewer window.
