7.3.2 Device Settings and Configuration

Configure temp.
sub range
Configure analog
outputs
Configure digital
inputs / outputs
Device data im-
port / export
Baud rate, device address, interface delay
▪ Temperature sub range (also see 6.3.6): Input of a temperature sub range.
-
By moving the slider or by entering
a value, the outputs are set
accordingly.
The output is only activated when
the hook "on" is set.
▪ Laser targeting light settings (only devices with laser targeting light): Time until a laser targeting light
switches off automatically.
▪ Device display:
- Temperature shows the measured temperature on the display.
- Suppressed displays only strokes over the entire display instead of the
temperature display.
▪ Device language:
- To select the language of the parameter menu on the device to German or English.
▪ Keylock: To lock or unlock the key functions on the device (enabling on the device, see 6.2).
- None: All functions can be changed using the buttons on the unit.
- Active: The buttons on the unit are disabled.
- Menu lock: activates an input field for a 4-digit PIN code, which enables to protect changing of parame-
ters (PAR key) on the device. If activated, this code must be entered on the device before parameters
with the PAR button can be changed.
▪ 2 Analog outputs are available:
- 0–20 mA or 4–20 mA sets the output current according to the requirements.
-
By moving the slider or by entering
a value the corresponding current is
set to the output.
The output is only activated when
the hook "on" is set.

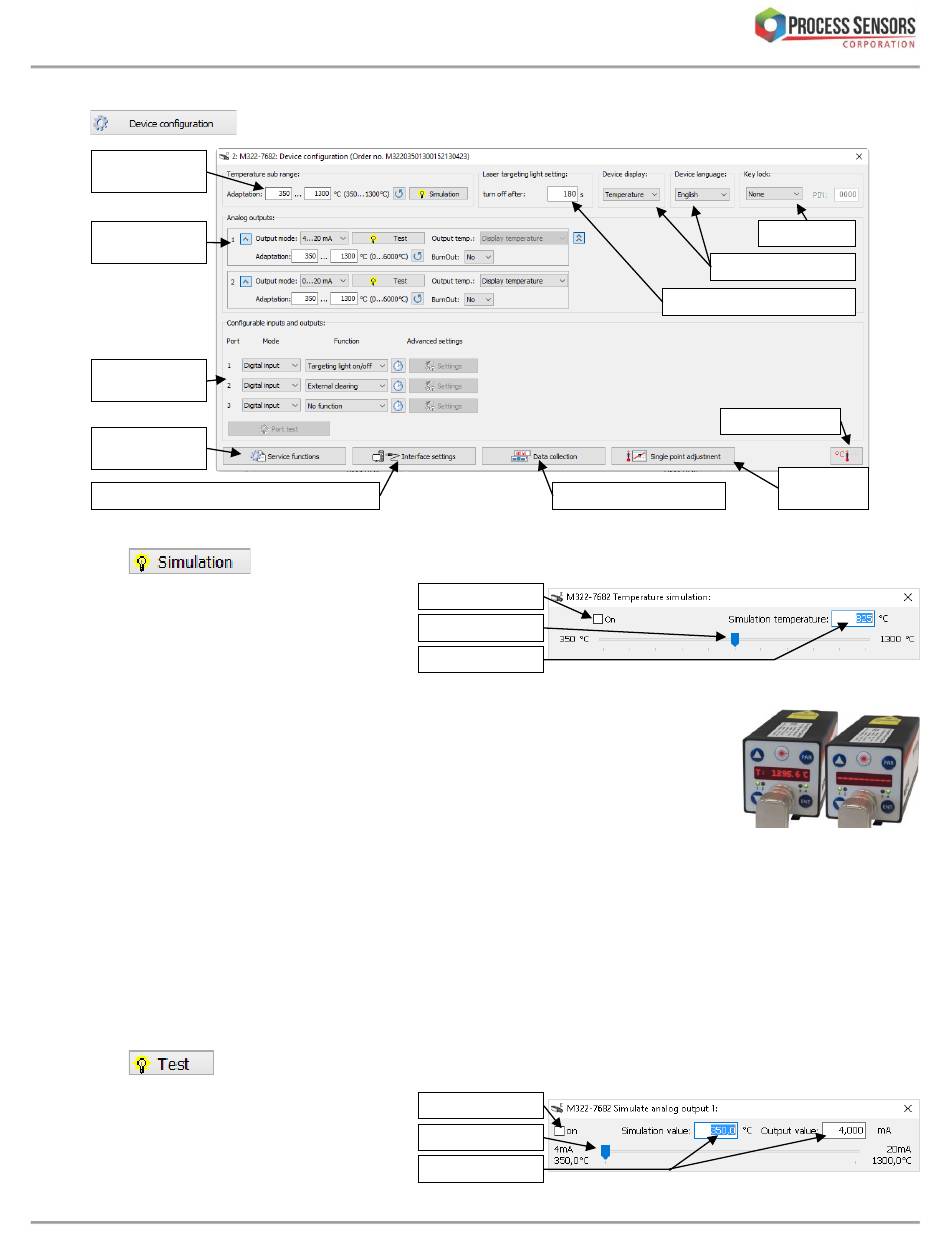

Here basic device settings are made.
: To test the functionality of the outputs:
: To test the functionality of each analog output:
Buffer mode configuration
Activate output
Slider
Simulation value
Activate output
Slider
Simulation value
Key lock
Display settings
Switch-off laser targeting light
Temp. unit °C/°F
Single-point
adjustment
