POWERFUL 24VOLT CLASS D AMPLIFIERS
SUITABLE FOR 24VOLT SYSTEMS

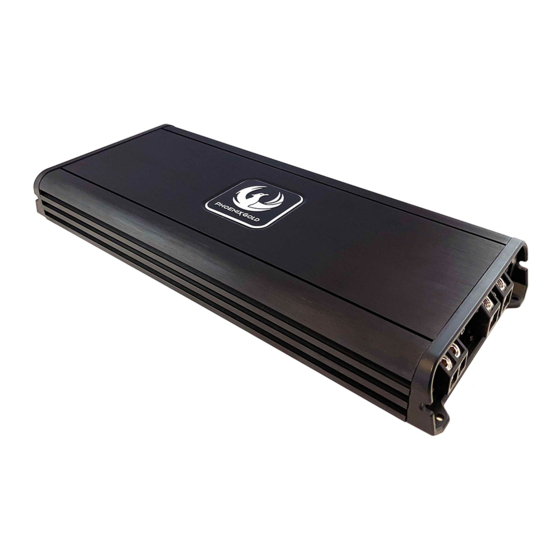

Model: ZT6004R / ZT15001
SPECIFICATIONS
• High Level Auto-Turn On - powers on the amp when audio signal is supplied
• OEM Connection Ready - compatible with aftermarket/original source units
• Integrated Fan - regulates temp. for sustained performance (ZT15001 only)
• Remote Ready - control bass/gain with included ZRBC
• High & Low Level Inputs - versatile connectivity to suit any vehicle
• Heavy Duty Connector Block - enables maximum current supply
• 4-Way Protected Circuit - protection against thermal damage,
reversed power, speaker polarity and low voltage
All specifications subject to change without notice.
© 2023 Phoenix Gold | www.phoenixgold.com
Advertisement
Related Manuals for Phoenix Gold ZT Series
Summary of Contents for Phoenix Gold ZT Series
- Page 1 • High & Low Level Inputs - versatile connectivity to suit any vehicle • Heavy Duty Connector Block - enables maximum current supply • 4-Way Protected Circuit - protection against thermal damage, reversed power, speaker polarity and low voltage All specifications subject to change without notice. © 2023 Phoenix Gold | www.phoenixgold.com...
-
Page 2: Specifications
Idle Current 0.55A 1.04A Current Draw (Max) Total Efficiency (4Ω) Power Terminal 20mm² 20mm² Speaker Terminal 4mm² 20mm² Dimensions (LxWxH) 254 x 160 x 48.3mm 334 x 160 x 48.3mm Weight 1.76 kg 2.6 kg © 2023 Phoenix Gold | www.phoenixgold.com... -
Page 3: Installation Warnings
• Phoenix Gold takes no responsibility for any physical harm or damage caused by improper use of their products. • Ensure that all metals and raw materials are disposed of in accordance with local regulations and environmental... -
Page 4: Amplifier Connection
AMPLIFIER CONNECTION 1. +12V Power Ensure ALL other cable connections are completed before connecting this cable to the battery. PHOENIX GOLD amplifi- ers should be connected directly to the 12V battery terminal using the appropriate gauge cable. Start at the vehicles battery and run the cable through to the amplifier. - Page 5 For dual coil (2 x 4ohm) or two single coil (4ohm) subwoofers connect each coil to positive or negative terminal. For a standard single coil subwoofer connect to either positive and either negative terminal. © 2023 Phoenix Gold | www.phoenixgold.com...
- Page 6 ZT6004R / ZT15001 - ZT-Series Amplifiers ZT6004R Example of 3 Channel configuration 2 x Front/Rear Speakers (4Ohm Subwoofer) Bridged Rear Channels © 2023 Phoenix Gold | www.phoenixgold.com...
- Page 7 ZT6004R / ZT15001 - ZT-Series Amplifiers ZT6004R ZT15001 11 10 © 2023 Phoenix Gold | www.phoenixgold.com...
- Page 8 This is a variable control that filters out all subsonic bass frequencies below the set point. These are frequencies that are not audible. These frequencies can damage subwoofers. See specification table for adjustable frequency range. © 2023 Phoenix Gold | www.phoenixgold.com...
- Page 9 1. When illuminated Blue, indicates normal operation. Amplifier is powered on with no faults detected. 2. When illuminated Red, indicates the amplifier is in protection mode / fault state. See troubleshooting section on the next page. © 2023 Phoenix Gold | www.phoenixgold.com...
-
Page 10: Amplifier Troubleshooting
No Sound Head unit Check head unit volume LED = Blue Amplifier Check all power, remote on and ground connections Speakers Check speakers are correctly connected Check speakers for shorts © 2023 Phoenix Gold | www.phoenixgold.com... - Page 11 ZT6004R / ZT15001 - ZT-Series Amplifiers ZT6004R 254mm 254mm 218mm 48mm 218mm 48mm ZT15001 334mm 398mm 48mm © 2023 Phoenix Gold | www.phoenixgold.com...
- Page 12 ZT6004R / ZT15001 - ZT-Series Amplifiers © 2023 Phoenix Gold | www.phoenixgold.com...
