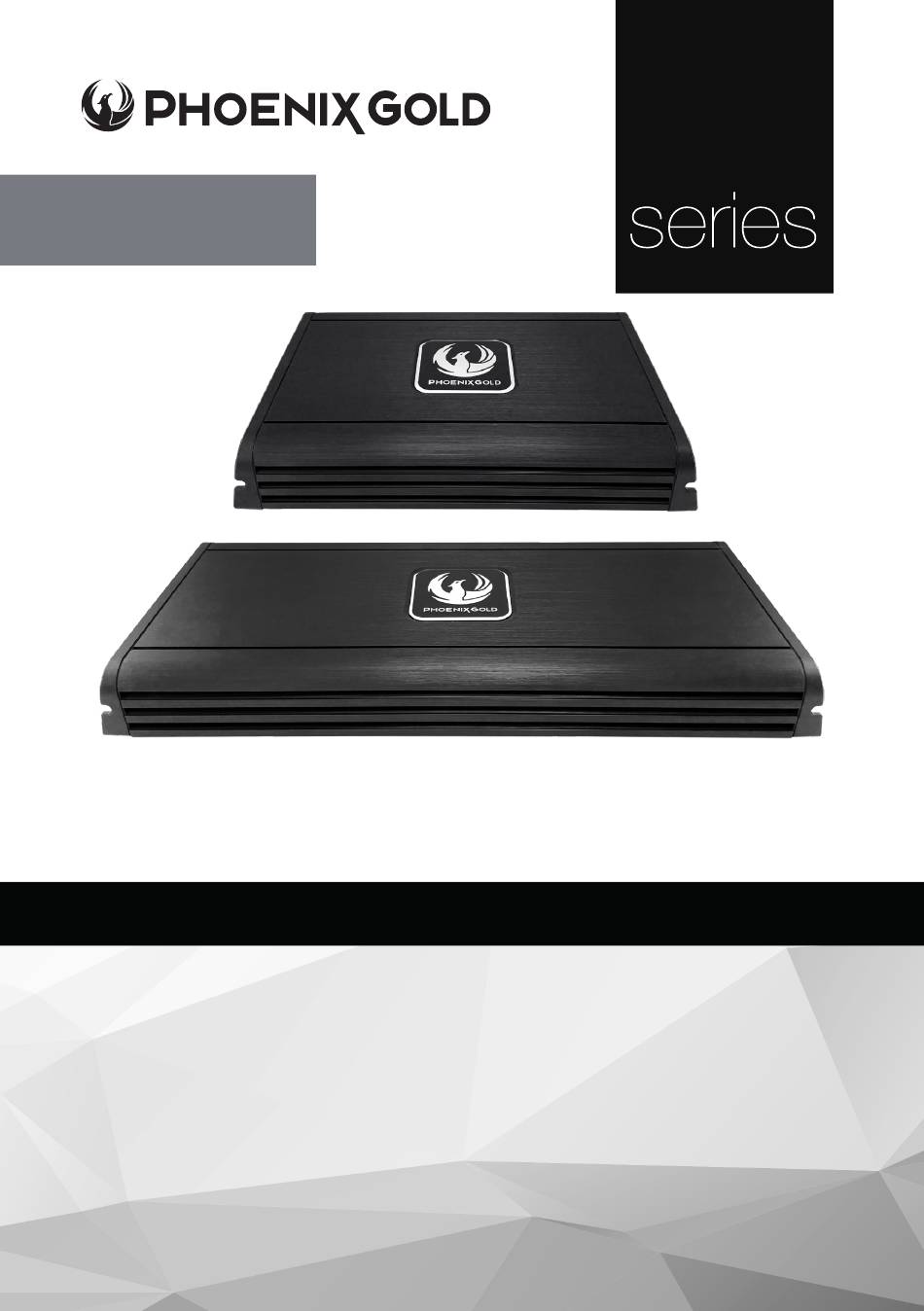

ZT
24VOLT
POWERFUL 24VOLT CLASS D AMPLIFIERS
SUITABLE FOR 24VOLT SYSTEMS
Model: ZT6004 / ZT15001
SPECIFICATIONS
• High Level Auto-Turn On - powers on the amp when audio signal is supplied
• OEM Connection Ready - compatible with aftermarket/original source units
• Integrated Fan - regulates temp. for sustained performance (ZT15001 only)
• Remote Bass Ready - control bass level with included ZRBC (ZT15001 only)
• High & Low Level Inputs - versatile connectivity to suit any vehicle
• Heavy Duty Connector Block - enables maximum current supply
• 4-Way Protected Circuit - protection against thermal damage,
reversed power, speaker polarity and low voltage
All specifications subject to change without notice.
© 2021 Phoenix Gold • www.phoenixgold-eu.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Phoenix Gold ZT Series
Summary of Contents for Phoenix Gold ZT Series
- Page 1 • High & Low Level Inputs - versatile connectivity to suit any vehicle • Heavy Duty Connector Block - enables maximum current supply • 4-Way Protected Circuit - protection against thermal damage, reversed power, speaker polarity and low voltage All specifications subject to change without notice. © 2021 Phoenix Gold • www.phoenixgold-eu.com...
-
Page 2: Minimum Load Impedance
Input Range Minimum Load 2ohm Stereo & 1ohm Impedance 4ohm bridged Note: Phoenix Gold Amplifiers have a minimum load impedance of 2ohm per channel 4ohm bridged (& 1ohm for monoblocks) © 2021 Phoenix Gold | A Brand of AAMP Global www.phoenixgold-eu.com... -
Page 3: Installation Warnings
Select a location that provides protection from moisture. Keep in mind that an amplifier should never be mounted upside down. Upside down mounting will compromise heat dissipation through the heat sink and could engage the thermal protection circuit. © 2021 Phoenix Gold • www.phoenixgold-eu.com... -
Page 4: Amplifier Connection
Connect the other end of your power cable to the battery, but remember to leave the fuse out or circuit breaker off until all other cable connections are made. © 2021 Phoenix Gold | A Brand of AAMP Global www.phoenixgold-eu.com... - Page 5 For dual coil (2 x 4ohm) or two single coil (4ohm) subwoofers connect each coil to positive or negative terminal. For a standard single coil subwoofer connect to either positive and either negative terminal. © 2021 Phoenix Gold • www.phoenixgold-eu.com...
- Page 6 ZT6004 / ZT15001 - ZT-Series Amplifiers ZT6004 Example of 3 Channel configuration 2 x Front/Rear Speakers (4Ohm Subwoofer) Bridged Rear Channels © 2021 Phoenix Gold | A Brand of AAMP Global www.phoenixgold-eu.com...
- Page 7 ZT6004 / ZT15001 - ZT-Series Amplifiers ZT6004 ZT15001 11 10 © 2021 Phoenix Gold • www.phoenixgold-eu.com...
- Page 8 This is a variable control that filters out all subsonic bass frequencies below the set point. These are frequencies that are not audible. These frequencies can damage subwoofers. See specification table for adjustable frequency range. © 2021 Phoenix Gold | A Brand of AAMP Global www.phoenixgold-eu.com...
- Page 9 1. When illuminated Blue, indicates normal operation. Amplifier is powered on with no faults detected. 2. When illuminated Red, indicates the amplifier is in protection mode / fault state. See troubleshooting section on the next page. © 2021 Phoenix Gold • www.phoenixgold-eu.com...
-
Page 10: Amplifier Troubleshooting
No Sound Head unit Check head unit volume LED = Blue Amplifier Check all power, remote on and ground connections Speakers Check speakers are correctly connected Check speakers for shorts © 2021 Phoenix Gold | A Brand of AAMP Global www.phoenixgold-eu.com... - Page 11 ZT6004 / ZT15001 - ZT-Series Amplifiers ZT6004 ZT15001 © 2021 Phoenix Gold • www.phoenixgold-eu.com...
- Page 12 LIMITED WARRANTY ON AMPLIFIERS: Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only.
