Class D Mono-Block Power Amplifi er
Class D Mono-Block Power Amplifi er
Class D Mono-Block Power Amplifi er
Amplifi cateur monobloc de Classe D
V8001

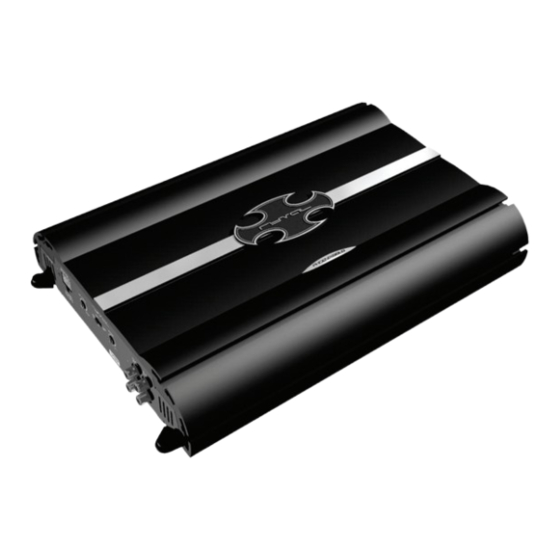

High Effi ciency "Class D" Mono-Block Power Amplifi er
Amplifi cateur monobloc de «Classe D» à rendement élevé
12dB per octave Variable Low-pass Crossover
Croisement passe-bas variable 12dB
12dB Variable Bass Boost
Amplifi cateur de basse variable 12dB
Low Pass Level (LPL) Control Ready
Commande rapide de niveau de passe-bas (LPL)
Auxiliary Outputs
Sorties auxiliaires
Speaker Level Inputs
Entrées de niveau d'amplifi cateur
Entrées de niveau d'amplifi cateur
Remote Monitoring Display (RMD) Port
Remote Monitoring Display (RMD) Port
Port d'affi chage de contrôle à distance (RMD)
Port d'affi chage de contrôle à distance (RMD)
Extruded Aluminum Heatsink
Extruded Aluminum Heatsink
Drain thermique en aluminium extrudé
Drain thermique en aluminium extrudé
Congratulations on your purchase of high quality Phoenix Gold audio electronics. At Phoenix Gold our highest concern is musical reproduc-
tion. We appreciate that you chose our product. Through years of engineering expertise and critical testing procedures, we have created a
wide range of products to give your system all the clarity and richness you deserve.
Great product and competent installations are only one piece of the puzzle when it comes to your system. Make sure that your install is using
only the best installation accessories. Phoenix Gold manufactures everything from RCA cables and speaker wire to power/ground cable and
battery connectors. With proper installation and accessories your system will last for years and perform to peak audio standards.
Please read your warranty and retain your receipt and original carton for possible future use.
For more information about Phoenix Gold electronics, speakers and accessories please visit
Phoenix Gold
-
www.phoenixgold.com
Phoenix Gold
Product Manual
Advertisement
Table of Contents
Related Manuals for Phoenix Gold Ryval V8001
Summary of Contents for Phoenix Gold Ryval V8001
- Page 1 Drain thermique en aluminium extrudé Congratulations on your purchase of high quality Phoenix Gold audio electronics. At Phoenix Gold our highest concern is musical reproduc- tion. We appreciate that you chose our product. Through years of engineering expertise and critical testing procedures, we have created a wide range of products to give your system all the clarity and richness you deserve.
- Page 2 This control allows 12dB of boost at 45Hz for the speaker outputs. RCA INPUT Connect preamp signal cables from the head unit to these terminals. To maximize noise rejection, we recommend using Genuine Phoenix Gold RCA interconnects. AUX OUT Provides a full range signal for an additional amplifi er.
- Page 3 Lowpass System Lowest Recommended Load: Lowest Recommended Load: 2 Ohm SPEAKERS FIG 1. 4 OHM, SINGLE V10S/V12S Ryval ®Amplifi ers CLASS D MONO-BLOCK POWER AMP OWNERS MANUAL V10S/V12S FIG 2. 2 OHM, 2x V10S/V12S Phoenix Gold - www.phoenixgold.com V10S/V12S SPEAKERS...
- Page 4 (if a single screw makes contact with both the amplifi er and vehicle chassis, it is not insulated). This will reduce the possibility of any ground related noises and will shield minor amounts of radiated noises. Battery Alternator Head Unit FIG 3. Phoenix Gold www.phoenixgold.com...
- Page 5 Speaker Level Input Sensitivity…………...200mV – 18V (High Level Inputs) DC Input Range………………………………………………………...9V – 18V Typical Current Draw at Idle………………………………………………...1 A Crossover Slope…………………………………………………... 12dB/Octave Crossover Range (Lowpass)…………………………………...40Hz – 300Hz Minimum Load Stability………………………………………………...…2 Ohm Ryval ®Amplifi ers CLASS D MONO-BLOCK POWER AMP OWNERS MANUAL Phoenix Gold - www.phoenixgold.com...
- Page 6 If the short is in the power wire, repair it. If the short is in the amplifi er itself, see your Phoenix Gold dealer. If no short is present replace the fuse.
- Page 7 LIMITED WARRANTY ELECTRONICS (USA) Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) year from the original date of purchase. This warranty is extended to two (2) years from the original date of purchase if product is installed by an authorized Phoenix Gold reseller.
- Page 8 Les articles reçus et non défectueux seront retournés et le fret payable à destination. Les frais d’expédition et d’assurance sont à la charge du client lorsque le produit est expédié à Phoenix Gold. Les dommages causés au produit lors du transport ne sont pas couverts par cette garantie.
