Z
COMPACT, CLASS A/B & MONO
Z-SERIES AMPLIFIERS

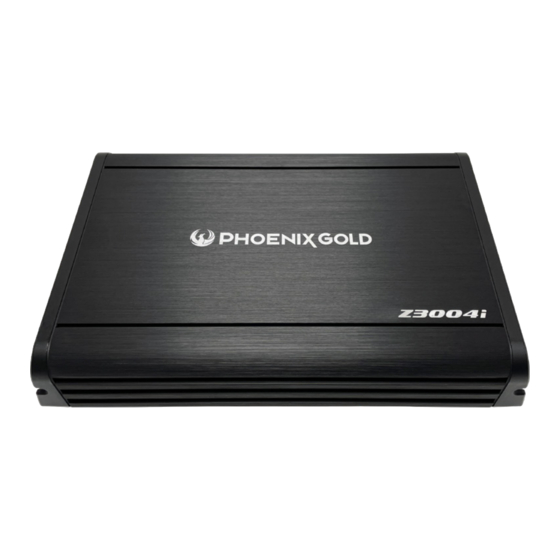

Model: Z1502i / Z3001i / Z3004i / Z6001i
SPECIFICATIONS
• OEM Connection Ready - compatible with aftermarket & original source units
• Remote Bass Ready - control the bass level with included ZRBC (Z3001i & Z6001i)
• High Level Auto-Turn On - powers on the amp when audio signal is supplied
• Integrated Cooling Fan - regulates temperature for sustained performance
• High & Low Level Inputs - versatile connectivity to suit any vehicle
• Heavy Duty Connector Block - enables maximum current supply
• 4-Way Protected Circuit - protection against thermal damage,
reversed power, speaker polarity and low voltage
All specifications subject to change without notice.
© 2023 Phoenix Gold | www.phoenixgold.com
Advertisement
Related Manuals for Phoenix Gold Z Series
Summary of Contents for Phoenix Gold Z Series
- Page 1 • High & Low Level Inputs - versatile connectivity to suit any vehicle • Heavy Duty Connector Block - enables maximum current supply • 4-Way Protected Circuit - protection against thermal damage, reversed power, speaker polarity and low voltage All specifications subject to change without notice. © 2023 Phoenix Gold | www.phoenixgold.com...
- Page 2 4mm² 4mm² 4mm² Dimensions (LxWxH) 184 x 160 x 48mm 254 x 160 x 48mm 254 x 160 x 48mm 184 x 160 x 48mm Weight 1.16 kg 1.66 kg 1.76 kg 1.30 kg © 2023 Phoenix Gold | www.phoenixgold.com...
- Page 3 • Phoenix Gold takes no responsibility for any physical harm or damage caused by improper use of their products. • Ensure that all metals and raw materials are disposed of in accordance with local regulations and environmental...
-
Page 4: Amplifier Connection
12V battery terminal using the appropriate gauge cable. Start at the vehicles battery and run the cable through to the amplifier. PHOENIX GOLD recommends the use of rubber grommets when passing any cable through metal panels to avoid sharp corners or panels that could cut through the insulation of the cable. - Page 5 (per channel). 4 Ohm minimum speaker impedance for bridged operation. (Z3001i - Z6001i) Speaker output for minimum 2 Ohm load for Z3001i and 1 Ohm for Z6001i. Learn more about speaker loads by visiting; www.phoenixgold.com © 2023 Phoenix Gold | www.phoenixgold.com...
- Page 6 Z1502i / Z3001i / Z3004i / Z6001i - Z-Series Amplifiers Z3004i Example of 3 Channel configuration 2 x Front/Rear Speakers (4Ohm Subwoofer) Bridged Rear Channels © 2023 Phoenix Gold | www.phoenixgold.com...
- Page 7 Z1502i / Z3001i / Z3004i / Z6001i - Z-Series Amplifiers Z1502i Z3001i 11 10 Z3004i Z6001i 11 10 © 2023 Phoenix Gold | www.phoenixgold.com...
- Page 8 This is a variable control that filters out all subsonic bass frequencies below the set point. These are frequencies that are not audible. These frequencies can damage subwoofers. See specification table for adjustable frequency range. © 2023 Phoenix Gold | www.phoenixgold.com...
- Page 9 1. When illuminated Blue, indicates normal operation. Amplifier is powered on with no faults detected. 2. When illuminated Red, indicates the amplifier is in protection mode / fault state. See troubleshooting section on the next page. © 2023 Phoenix Gold | www.phoenixgold.com...
-
Page 10: Amplifier Troubleshooting
No Sound Head unit Check head unit volume LED = Blue Amplifier Check all power, remote on and ground connections Speakers Check speakers are correctly connected Check speakers for shorts © 2023 Phoenix Gold | www.phoenixgold.com... - Page 11 6 6 6 6 48mm 218mm 2 2 1 1 8 8 4 4 8 8 Zx3004 © 2023 Phoenix Gold | www.phoenixgold.com 2 2 5 5 3 3 6 6 6 6 2 2 1 1 8 8 4 4 8 8...
- Page 12 Z1502i / Z3001i / Z3004i / Z6001i - Z-Series Amplifiers Z3001i 254mm 2 2 5 5 3 3 6 6 6 6 48mm 218mm 2 2 1 1 8 8 4 4 8 8 Zx3001 Z6001i 184mm 184mm 148mm 48mm 148mm 48mm © 2023 Phoenix Gold | www.phoenixgold.com...
