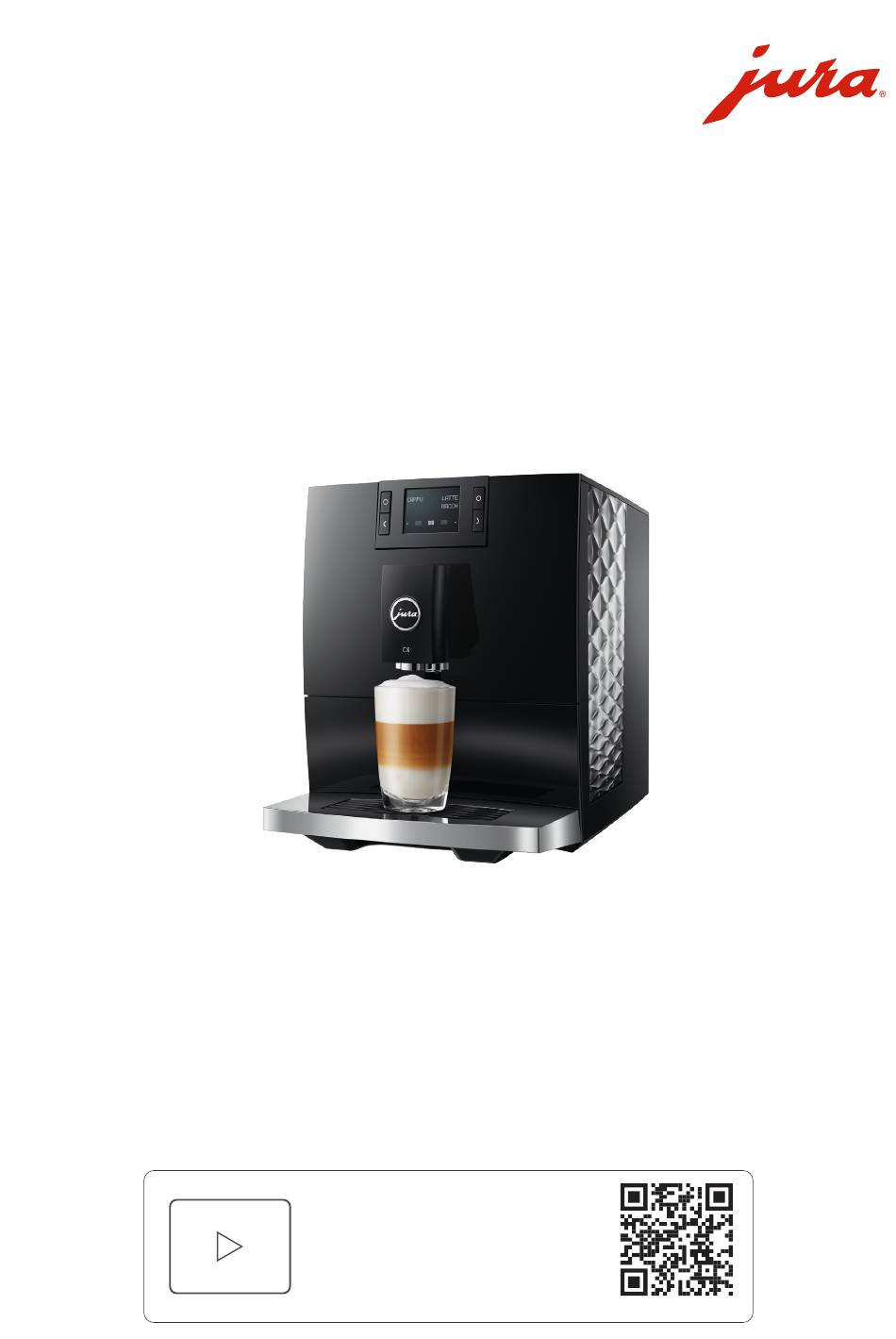

- Page 1 (EA/SA/INTA) Instructions for Use Additional online content Tap, click or scan the QR code to access additional online resources. There are video tutorials to help you operate your C8. jura.com/support-C8...
-
Page 2: Table Of Contents
8 Display messages ....................................19 9 Troubleshooting ....................................19 10 Transport and environmentally friendly disposal ..........................20 Transport / Emptying the system ....................................20 Disposal ............................................20 11 Technical data ....................................20 12 Index ........................................21 13 JURA contact details / Legal information ............................22... -
Page 3: Control Elements
1 Control elements 1 Control elements Service socket for optional JURA Wi-Fi Connect Grinder adjustment switch Bean container with aroma preservation cover Water tank(under cover) Multi-function buttons (button function depends on what is shown in the display) Display Height-adjustable dual spout Cup grille with aperture Insert for drip tray... -
Page 4: For Your Safety
Never use a damaged machine or mains cable. This could result in fatal electric shock. In the event of signs of damage, disconnect the machine from the mains. To do this, first switch the C8 off with the On/Off button Q . Only then should you remove the mains plug from the power socket. -
Page 5: Preventing Damage
Do not put the C8 or any individual parts in the dishwasher. Before cleaning, switch the C8 off with the On/Off button Q . Always wipe the C8 with a damp cloth rather than a wet one, and protect it from prolonged exposure to water splash. The C8 must not be cleaned with a jet of water. -
Page 6: Preparing And Using For The First Time
3 Preparing and using for the first time Setting up the machine Choose a spot for your C8 which protects the machine against overheating. Ensure that the ventilation slots are not covered. Place the C8 on a horizontal surface that is not sensitive to water. - Page 7 E The machine automatically detects that you have just inserted the filter cartridge. SAVED RINSING EMPTY TRAY Empty the drip tray and put it back into the machine. Place a receptacle under the dual spout. FILL SYSTEM HEATING RINSING The start screen is displayed. Your C8 is ready for use.
-
Page 8: Connecting Milk
Precondition: J.O.E.® is installed on your mobile device and you have logged in to your home network. The optionally available JURA Wi-Fi Connect is inserted into the service socket of your C8. (After the JURA Wi-Fi Connect has been inserted, the C8 must be switched off and then on again.) -
Page 9: Espresso And Coffee
C8 stops the operation. ADD POWDER The desired speciality coffee must be prepared within approximately one minute after filling with the ground coffee. Otherwise the C8 stops the operation and is once more ready for use. -
Page 10: Adjusting The Grinder
4 Preparation Press the button to return to the start screen. Press the button. ESPRESSO ADD POWDER Place a cup under the dual spout. Open the powder chute cover. Add the desired amount of ground coffee to the filler funnel (max. 2 level measuring spoons). E The amount of ground coffee determines the intensity and aroma of the beverage, so you can adjust it to your personal preferences. -
Page 11: Adjusting The Product Settings
Press the On/Off button Q. RINSING Your C8 is switched on or off. E When the machine is switched off, the system is only rinsed if a speciality coffee has been prepared. E If milk has been prepared before switching off, you will be prompted to carry out milk system cleaning ( ). -
Page 12: Maintenance Actions
6 Machine settings Maintenance actions Optimal coffee quality depends on many factors. One important prerequisite is regular maintenance of your C8. Carry out the following steps: Maintenance action Daily If necessary Note Empty the drip tray and coffee grounds Always empty the coffee grounds container when the container and rinse with warm water machine is switched on. -
Page 13: Maintenance
If the wrong cleaning agent is used, the machine could be damaged and/or traces could be left behind in the water. Use only original JURA maintenance products. E JURA milk system cleaner is available from specialised dealers. E Use the container supplied for milk system cleaning. -
Page 14: Dismantling And Rinsing The Dual Spout
7 Maintenance Place the container under the dual spout and connect the milk pipe with the container. E To connect the milk pipe to the container correctly, the pipe must be fitted with a HP3 connector. Press the button. The milk system is cleaned. The operation is interrupted, FRESH WATER Rinse the container thoroughly and fill the front part with fresh water up to the upper mark. -
Page 15: Inserting/Changing The Filter
YouTube Once the filter cartridge stops working (depending on the water hardness setting), the C8 will prompt you to change the filter. E Your C8 no longer has to be descaled if you are using the CLARIS Smart+ filter cartridge. -
Page 16: Cleaning The Machine
Tap, click or scan to watch the video tutorial on YouTube After 180 preparations or 80 switch-on rinses, the C8 will prompt you to clean it. CAUTION If the wrong cleaning agent is used, the machine could be damaged and/or traces could be left behind in the water. -
Page 17: Descaling The Machine
Tap, click or scan to watch the video tutorial on YouTube The C8 builds up deposits of limescale over time and automatically prompts you to descale it when necessary. The degree of calcification depends on the hardness of your water. -
Page 18: Descaling The Water Tank
7 Maintenance Completely dissolve 3 JURA descaling tablets in a receptacle holding 500 ml of water. This may take several minutes. Pour the solution into the empty water tank and insert it into the machine. Place a receptacle under the dual spout. -
Page 19: Display Messages
Contact customer support in your country (see chapter Other messages are ERROR ‘13 JURA contact details / Legal information’). displayed. E If you were unable to solve the problem, contact customer support in your country (see chapter ‘13 JURA contact details / Legal information’). -
Page 20: Transport And Environmentally Friendly Disposal
Press the button. EMPTYING Steam will continue to be discharged from the dual spout until the system is empty. Your C8 is switched off. Disposal Please dispose of old machines in an environmentally neutral way. Old machines contain valuable, recyclable materials which should be recycled. Please therefore dispose of old machines via suitable collec- tion systems. -
Page 21: Index
Instant coffee Filling 6 Bus bar Ground coffee 9 Interchangeable milk spout 20 Technical data 20 Button On/Off button 3 JURA Contact details 22 Cappuccino 9 Central grounding point 20 Latte macchiato 9 Children 4 CLARIS Smart filter cartridge Machine... -
Page 22: Jura Contact Details / Legal Information
Technical changes We reserve the right to make technical changes. The diagrams used in these instructions for use are for illustration purposes only and do not represent the original colours of the machine. Some details of your C8 may vary. C8/en/20240404_BA-Online...
