TECHNICAL BULLETIN
CONNECTBOX INSTALLATION GUIDE

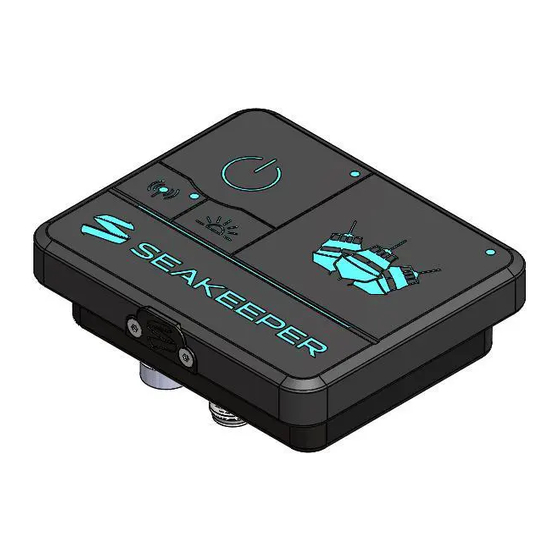

PRODUCT
CONNECTBOX
CONNECTING SEAKEEPER CONNECTBOX TO BOAT
The ConnectBox integrates with most Multifunction Displays (MFDs). The rear of the ConnectBox has three
connections that allow communication with the Seakeeper harness, the NMEA 2000 backbone, and the
selected MFD (via ethernet cable). The harness and the NMEA drop cable use an NMEA Lite cable with 5-
pin connectors, while the Ethernet D-Code cable has a 4-pin connector.

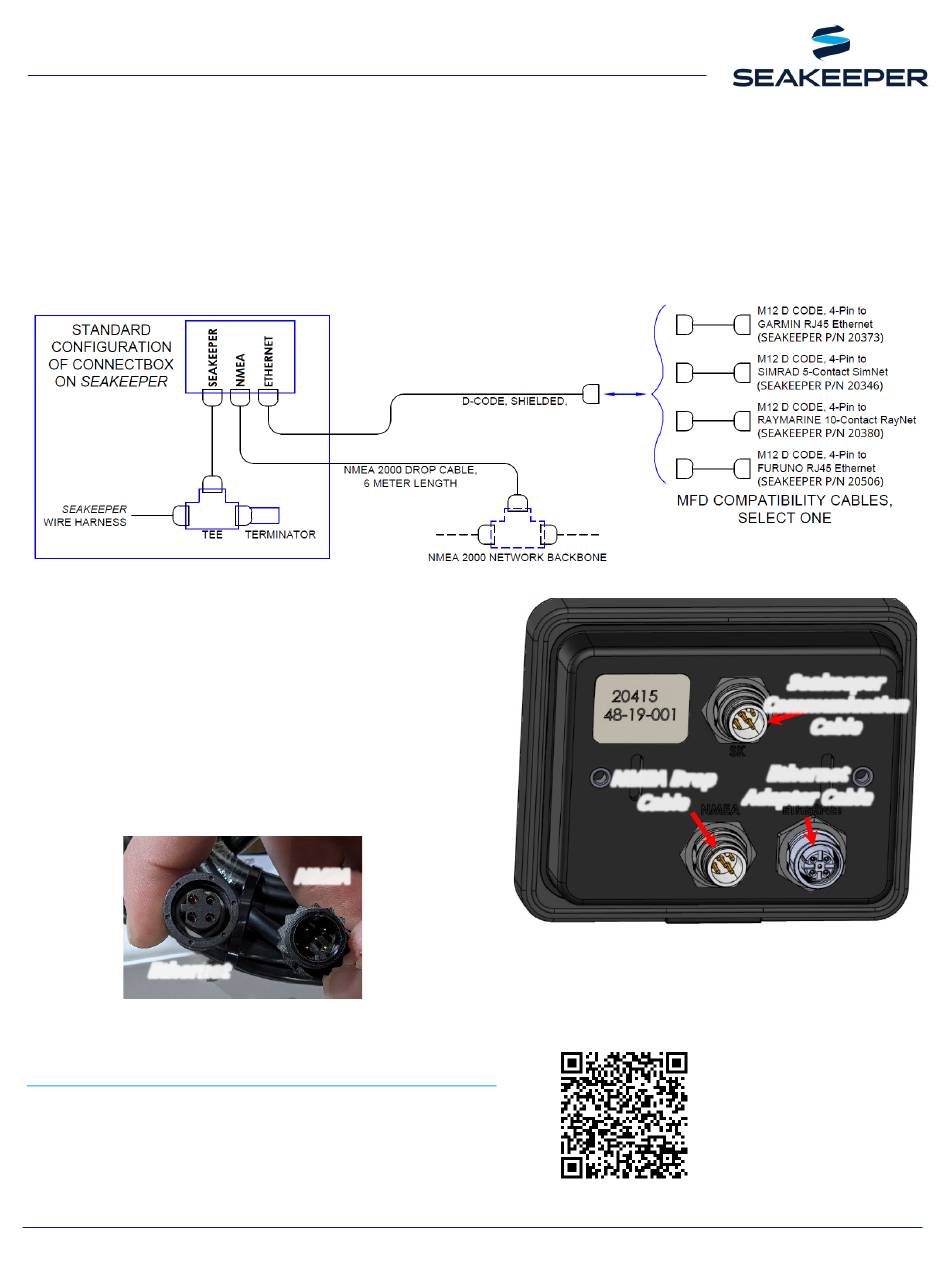

CONNECTION DETAILS
The rear of the ConnectBox comes with three cables
already attached. Should disconnecting the wires from
the ConnectBox be necessary, ensure that the cables
are reconnected in their proper locations, as shown in
the image. The NMEA and Ethernet cables are coiled
beside the unit in the crate.
Ethernet
REFERENCES
90663 – Seakeeper ConnectBox Generic Wiring Diagram
Page 1 of 2
Document #
90896-1
NMEA
Seakeeper
Communication
Ethernet
NMEA Drop
Adapter Cable
Cable
www.seakeeper.com
Cable
Advertisement
Related Manuals for Seakeeper TB-90478
Summary of Contents for Seakeeper TB-90478
- Page 1 The ConnectBox integrates with most Multifunction Displays (MFDs). The rear of the ConnectBox has three connections that allow communication with the Seakeeper harness, the NMEA 2000 backbone, and the selected MFD (via ethernet cable). The harness and the NMEA drop cable use an NMEA Lite cable with 5- pin connectors, while the Ethernet D-Code cable has a 4-pin connector.
- Page 2 DHCP Off is the default and intended for Garmin, Raymarine, and Furuno MFDs. For use with Navico MFDs, change to DHCP On by holding the Network button until the direction of the lights changes to left to right. Cycle Seakeeper and MFD power after changing the DHCP Server Setting. Network...
