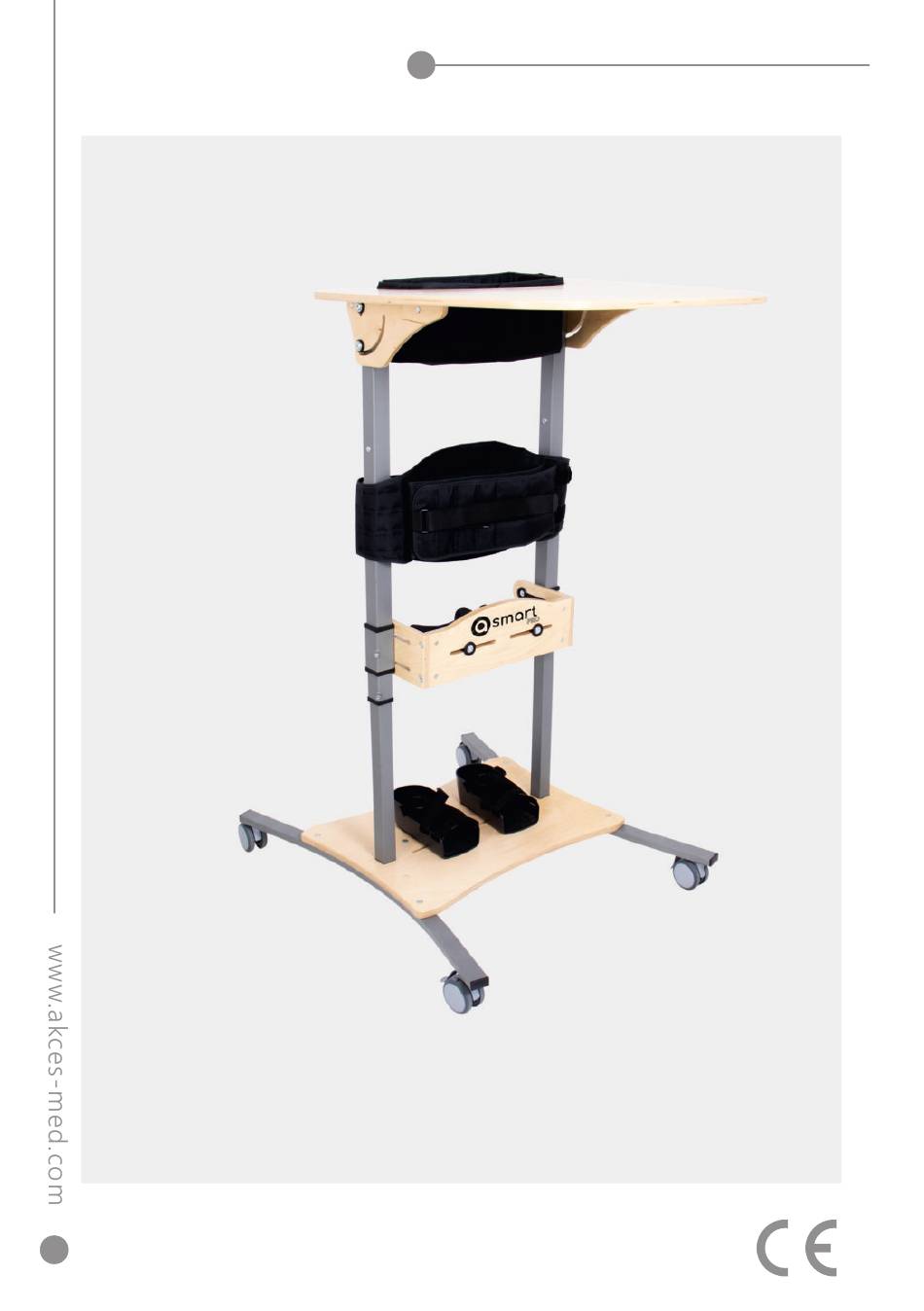

- Page 1 SMART Pro Standing frame User manual...
- Page 2 Manufacturer takes responsibility for proper usage of the device only when the product was purchased from qualified Akces-MED Ltd. employee or at specialized medical store! Akces-MED Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning.
-
Page 3: Table Of Contents
Contents Introduction....................................4 1. The purpose of user manual...............................5 2. Indications and contraindications for use........................5 3. General characteristic of the standing frame.......................7 4. Size table....................................8 5. How to assembly the standing frame..........................9 6. How to use the standing frame............................15 6.1 Chest belt..................................15 6.2 Pelvic belt..................................16 6.3 Knee support................................17 6.4 Footers..................................18... -
Page 4: Introduction
Introduction SMART PRO™ is a modern standing frame that enables a user to adopt an upright position, is easy to use, highly durable and stable. Through the use of innovative, smooth, and stepless adjustment, we have reduced the number of size variations from 8 to 5 while maintaining the full range of adjustments, at the same time increasing the comfort and ability of the stander to adapt to the user. -
Page 5: The Purpose Of User Manual
User manual should be kept in easily accessible place. It is designed for people who look after the disabled , and for both doctors as well as physiotherapists who operate the device. Before using the SMART Pro™ , standing frame, user is obliged to familiarize himself / herself with user manual. - Page 6 2. Indications and contraindications for use Contraindications: While standing upright, the user who is in a standing position should be closely monitored. The therapy should be discontinued in case of such side effects as: turning pale, sweating or fainting, joint strain and the resulting deformities of\ the body.
-
Page 7: General Characteristic Of The Standing Frame
3. General characteristic CHEST BELT TRAY UPRIGHT PRO PELVIC BELT UPRIGHT PRO ADJUSTABLE KNEE SUPPORT WITH PELOTES FOOTERS FRAME WITH CASTORS AND BRAKES... -
Page 8: Size Table
4. Size table Symbol Measurement Unit Size 1 Size 2 Size 3 Size 4 Size 5 indicative user height * [cm] 50 - 70 70 - 100 90 - 130 110 - 170 140 - 200 pelvic support width [cm] pelvic support height [cm] 18 - 44... -
Page 9: How To Assembly The Standing Frame
5. Description how to assembly standing frame ASSEMBLY STANDING FRAME - SIZE 1, 2. STEP 1: Remove the bolts with washers from the columns (pic. 1). STEP 2: Insert columns into holes in the frame so as that mesure is placed towards the outside of the device (pic.2). - Page 10 5. Description how to assembly standing frame ASSEMBLY STANDING FRAME - SIZE 1, 2. STEP 4: Fasten posts to the frame with the aid of screws (pic. 4). STEP 5: Tighten all screws by means of Allen key (pic. 5). It is important that the screws are set vertically and screwed in evenly! PIC.
- Page 11 5. Description how to assembly standing frame ASSEMBLY STANDING FRAME - SIZE 1, 2. On the platform and tray, you can find yellow stickers showing the front side of the standing frame. In order to assemble the product properly, the arrows on the stickers should be pointing the same direction.
- Page 12 5. Description how to assembly standing frame ASSEMBLY STANDING FRAME - SIZE 3, 4, 5. STEP 1: Insert transverse frame into profiles for frame - pic. 8, 9. rys. 8 PIC. 9 PIC. 8 STEP 2: Put footplate on frame's posts with castors - rys. 10. STEP 3: In the platform, put in place the screws with washers - four screws in the corners of the base, two under the feet -pic.
- Page 13 5 Description how to assembly standing frame ASSEMBLY STANDING FRAME - SIZE 3, 4, 5. STEP 4: Install the footers on the platform - pic.12. RYS. 13 PIC. 12 PIC. 13 STEP 5: Place upper part of standing frame with belts, tray and knee support on frame with posts - pic.13.
- Page 14 5. Description how to assembly standing frame ASSEMBLY STANDING FRAME - SIZE 3, 4, 5. STEP 7: Standing frame is equipped with tray. In order to unfold tray it is necessary to: - loosen four fastenings from tray which are placed on both sides with the aid of Allen wrench, - next, unfold tray's top, and block it by pressing top and tightening tray's fastenings.
-
Page 15: How To Use The Standing Frame
6. Description how to use standing frame 6.1 Chest and pelvic belt INFORMATION! T h e b e l t h a s t h e a d j u s t m e n t o f t h e circumference for users with a bigger body c i r c u m f e r e n c e . -
Page 16: Pelvic Belt
6. Description how to use standing frame 6.2 Pelvic belt INFORMATION! The belt has the adjustment of the circumference for users with a bigger body circumference. -
Page 17: Knee Support
6. Description how to use standing frame 6.3 Knee support... -
Page 18: Footers
6. Description how to use standing frame 6. 4 Footers 6. 5 Castors with brakes ACTIVE BRAKE... -
Page 19: The Use Of Standing Frame
7. The use of standing frame ATTENTION! Before using the product, user is obliged to familiarize himself/herself with user manual. Do not forget to prepare both product as well as user before using the device. 7.1 Preparation of the user Before using the product, it is essential to make sure that: user's outfit is light and comfortable sporty clothes are advisable, ź... -
Page 20: Prepare Of The Standing Frame
7. The use of standing frame 7.2 Preparation of the standing frame 1. How to prepare the standing frame for use: assemble the standing frame, ź place the standing frame on an even and flat surface, away from sources of fire and high ź... -
Page 21: Upright Position
7. The use of standing frame 7.3 Upright position The length of time for upright position process is different for each user. It is recommended to extend this time during the initial period (adaption period for the change of position). Either doctor or physiotherapist can make decision concerning the length of upright position process. -
Page 22: Safety Rules
It is highly important to consult either doctor or physiotherapist in order to make right decision concerning the choice of SMART Pro and its size. It is also essential to familiarize with the guidelines described in user manual before using the device. - Page 23 8. Safety rules 11. Secure standing frame during transportation in order to avoid any possible damages. Manufacturer doesn't take responsibility for damages which appeared due to improper preparation of the device during transportation. 12. Before using the standing frame, remove all paper and plastic packaging. The packaging is not a toy! Keep away from children and animals.
-
Page 24: Terms Of Warranty
(ph. +48 17 864 04 77, e-mail: export@akces-med.com). 10. Maintenance and cleaning The standing frame SMART Pro , which is a medical device, should always be kept clean and should be used in accordance with the manufacturer's instructions. The standing frame should be kept in a clean, dry and ventilated room. - Page 25 ATTENTION! Remember that upholstery has to be always dry before using! The manufacturer of the standing frame, Akces-MED Ltd., is not responsible for any damages caused by using unsuitable cleaners. Before using it is necessary to: clean wheels, ź...
- Page 26 10. Maintenance and cleaning TECHNICAL INSPECTION Technical inspections should be performed regularly. Before servicing, the product should be thoroughly Frequency What should be checked? What should be done? Remarks Before each use. General condition of the Check: In case of any damage or defects, product.
- Page 27 10. Maintenance and cleaning TECHNICAL INSPECTION Technical inspections should be performed regularly. Before servicing, the product should be Frequency What should be checked? What should be done? Remarks Once a month. Wheel axles, quick Check: Clean the wheels when dirty. connectors (if if the wheels are rolling and if they are not In case of any damage or defects,...
-
Page 28: Labelling
11. Labelling Declaration that the product meets the essential Dry vertically requirements Catalog number Do not chlorinate Serial number Do not iron Do not dryclean Please read the manual instructions before use You need to take special precautions Do not bleach Manufacturer Careful! Delicate content The product is intended for indoor use... - Page 32 MANUFACTURER Authorised Dealer Akces-MED Ltd. Jasionka 955 B 36-002 Jasionka tel. +48 17 864 04 70 e-mail: export@akces-med.com BDO: 000031619 © Sławomir Wroński 2024...
