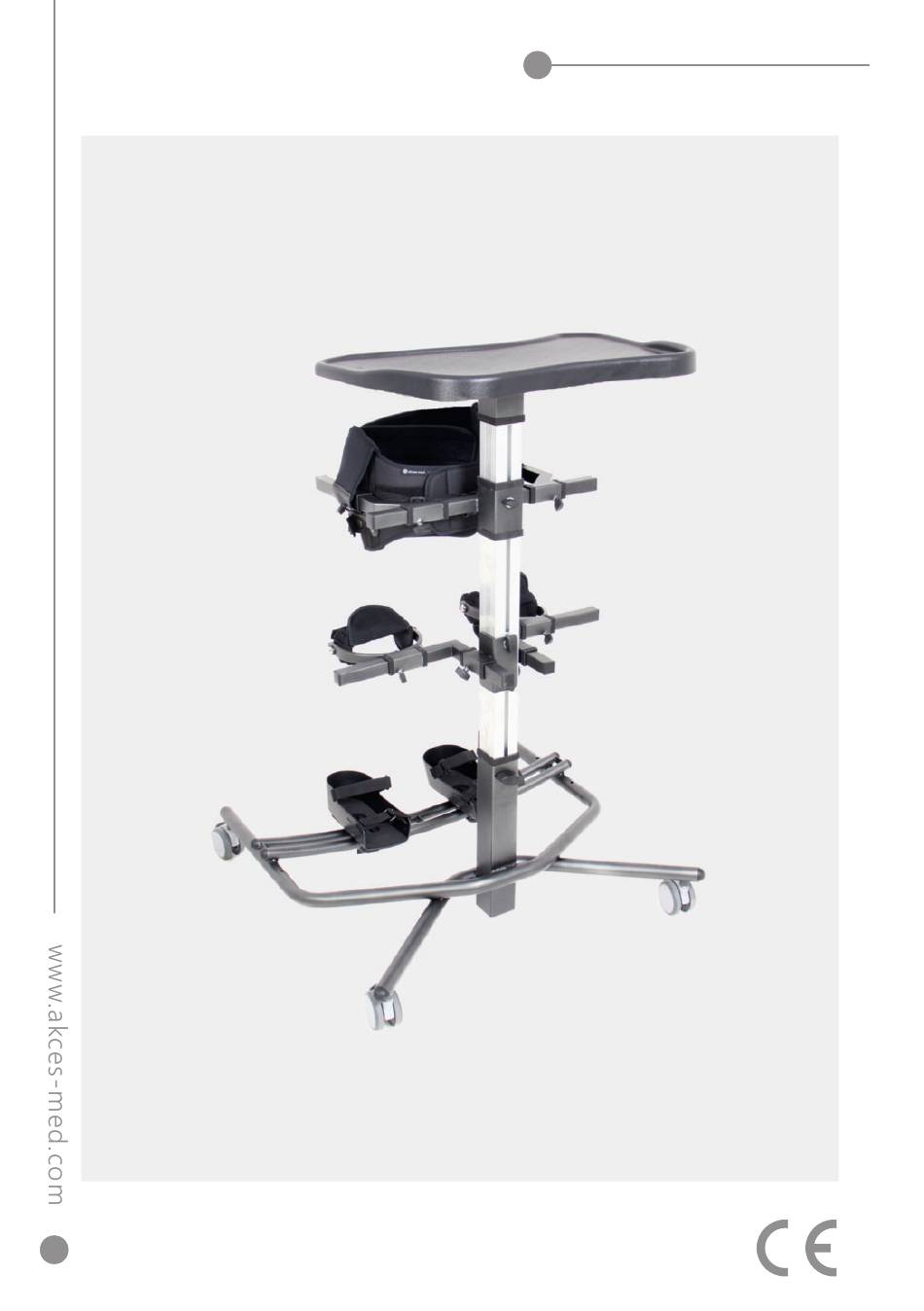

- Page 1 АSTRIDE Pro Max Standing frame User manual...
- Page 2 Manufacturer takes responsibility for proper usage of the device only when the product was purchased from qualified Akces-MED Ltd. employee or at specialized medical store! Akces-MED Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning.
-
Page 3: Table Of Contents
Contents Introduction....................................4 1. The purpose of user manual............................5 2. Indications and contraindications for use........................5 3. General characteristic...............................7 4. Size table....................................8 5. How to use standing frame.............................9 5.1 Height adjustment..............................11 5.2 Foot stabilizers adjustment..........................11 5.3 Knee supports adjustment...........................13 5.4 Pelvic belt adjustment............................15 5.5 Chest belt adjustment - accessories.........................17 6. -
Page 4: Introduction

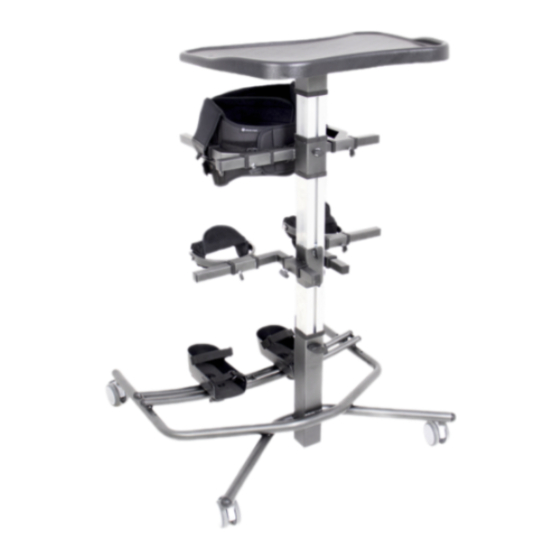

Introduction ASTRIDE Pro Max™ is a modern static standing frame with an abduction function, characterized by a robust, stable and durable metal frame. Thanks to an innovative system of smooth and stepless adjustment, precise positioning of the user's knees and trunk is possible. This unique system allows full control over the body posture during standing, ensuring safety and comfort at the same time. -
Page 5: The Purpose Of User Manual
User manual should be kept in easily accessible place. It is designed for people who look after the disabled , and for both doctors as well as physiotherapists who operate the device. Before using the ASTRIDE Pro Max™ , standing frame, user is obliged to familiarize himself / herself with user manual. - Page 6 2. Indications and contraindications for use Contraindications: While standing upright, the user who is in a standing position should be closely monitored. The therapy should be discontinued in case of such side effects as: turning pale, sweating or fainting, joint strain and the resulting deformities of the body.
-
Page 7: General Characteristic
3. General characteristic TRAY WITH SMOOTH HEIGHT ADJUSTMENT PELVIC BELT WITH PELVIC ROTATION FUNCTION STANDING FRAME COLUMN ADJUSTABLE IN HEIGHT, SUPPORTED BY A GAS SPRING KNEE SUPPORTS WITH SOFT KNEE CAPS, INDEPENDENTLY ADJUSTABLE FOR HEIGHT, DEPTH, INDEPENDENTLY ADJUSTABLE LOWER LIMB SPACING FOOT STABILIZERS WITH SAFETY STRAPS FRAME... -
Page 8: Size Table
4. Size table Symbol Measurement Unit Size 1 indicative user height* [cm] 130 - 160 chest belt height (accessories) [cm] 92 - 125 chest belt width (accessories) [cm] 20 - 45 chest belt parimeter (accessories) [cm] 70 - 130 pelvic belt height [cm] 56 - 99 pelvic belt width... -
Page 9: How To Use Standing Frame
5. How to use standing frame ADJUSTMENTS HEIGHT ADJUSTMENT FOOT STABILIZERS ADJUSTMENT KNEE SUPPORTS ADJUSTMENT... - Page 10 5. How to use standing frame ADJUSTMENTS PELVIC BELT ADJUSTMENT CHEST BELT ADJUSTMENT - ACCESSORIES...
-
Page 11: Height Adjustment
5. How to use standing frame Height adjustment INFORMATION! The standing frame has protection against involuntary height adjustment. In order to adjust the height, loosen two knobs, adjust the jeoght of the stander and lock the knobs. To lower the height, you must put pressure on the tray. ATTENTION! Check if the levers are properly locked before use. - Page 12 5. How to use standing frame 5.2 Foot stabilizers adjustment INFORMATION! The derotation bars are adjustable. Unscrew the screws, choose the suitable location of the bars in the frame and tighten the screws. INFORMATION! Through the holes on the sides of the feet, you can adjust the mounting of the straps depending on the needs of the user.
-
Page 13: Knee Supports Adjustment
5. How to use standing frame 5.2 Foot stabilizers adjustment ATTENTION! Before using the standing frame, make sure that all knobs and screws are properly and firmly tightened, and the Velcro straps are properly fastened. 5.3 Knee supports adjustment INFORMATION! Use the knobs to make an adjustment. - Page 14 5. How to use standing frame 5.3 Knee supports adjustment DEPTH ADJUSTMENT DEPTH ADJUSTMENT WIDTH ADJUSTMENT WIDTH ADJUSTMENT...
-
Page 15: Pelvic Belt Adjustment
5. How to use standing frame 5.3 Knee supports adjustment INFORMATION! The soft elements of the knee support straps can be shortened with scissors, guiding the cut through the selected recess. In addition, adjust the length of the velcro element by cutting it relative to the length of the soft element. - Page 16 5. How to use standing frame 5.4 Pelvic belt adjustment WIDTH ADJUSTMENT WIDTH ADJUSTMENT ATTENTION! Before using the standing frame, make sure that all knobs are properly and firmly tightened, and the velcro straps are properly fastened. Also, make sure that the press studs securing the straps to the frame are properly fastened.
-
Page 17: Chest Belt Adjustment - Accessories
5. How to use standing frame 5.5 Chest belt adjustment - accessories HEIGHT ADJUSTMENT HEIGHT ADJUSTMENT DEPTH ADJUSTMENT DEPTH ADJUSTMENT WIDTH ADJUSTMENT WIDTH ADJUSTMENT... - Page 18 5. How to use standing frame 5.5 Chest belt adjustment - accessories ATTENTION! Before using the standing frame, make sure that all knobs are properly and firmly tightened, and the velcro straps are properly fastened. Also, make sure that the press studs securing the straps to the frame are properly fastened.
-
Page 19: The Use Of Standing Frame
6. The use of standing frame ATTENTION! Before using the ASTRIDE Pro Max standing frame, read the instruction manual and follow the information contained therein. Before each use, prepare the user and the device. 6.1 Preparation of the user Before using the product, it is essential to make sure that: user's outfit is light and comfortable sporty clothes are advisable, ź... -
Page 20: Preparation Of The Product
6. The use of standing frame 6.2 Preparation of the product 1. How to prepare the standing frame for use: assemble the standing frame, ź place the standing frame on an even and flat surface, away from sources of fire and high ź... -
Page 21: Upright Position
6. The use of standing frame 6.3 Upright position The length of time for upright position process is different for each user. It is recommended to extend this time during the initial period (adaption period for the change of position). Either doctor or physiotherapist can make decision concerning the length of upright position process. -
Page 22: Safety Rules
It is highly important to consult either doctor or physiotherapist in order to make right decision concerning the choice of ASTRIDE Pro Max and its size. It is also essential to familiarize with the guidelines described in user manual before using the device. - Page 23 7. Safety rules 11. Secure standing frame during transportation in order to avoid any possible damages. Manufacturer doesn't take responsibility for damages which appeared due to improper preparation of the device during transportation. 12. Before using the standing frame, remove all paper and plastic packaging. The packaging is not a toy! Keep away from children and animals.
-
Page 24: Terms Of Warranty
(ph. +48 17 864 04 77, e-mail: export@akces-med.com). 9. Maintenance and cleaning The standing frame ASTRIDE Pro Max , which is a medical device, should always be kept clean and should be used in accordance with the manufacturer's instructions. The standing frame should be kept in a clean, dry and ventilated room. - Page 25 ATTENTION! Remember that upholstery has to be always dry before using! The manufacturer of the standing frame, Akces-MED Ltd., is not responsible for any damages caused by using unsuitable cleaners. Before using it is necessary to: clean the wheels of any dirt, ź...
- Page 26 9. Maintenance and cleaning TECHNICAL INSPECTION Technical inspections should be performed regularly. Before servicing, the product should be thoroughly cleaned to reveal any hidden damage. Frequency What should be checked? What should be done? Remarks Before each use. General condition of the Check: In case of any damage or defects, product.
- Page 27 9. Maintenance and cleaning TECHNICAL INSPECTION Technical inspections should be performed regularly. Before servicing, the product should be thoroughly cleaned to reveal any hidden damage. Frequency What should be checked? What should be done? Remarks Once a month. Wheel axles, quick Check: Clean the wheels when dirty.
-
Page 28: Labelling
10. Labelling Declaration that the product meets the essential Do not dry in a drum dryer requirements Dry vertically Catalog number Serial number Do not chlorinate Please read the manual instructions before use Do not iron You need to take special precautions Do not dry clean Manufacturer Do not bleach... - Page 32 MANUFACTURER Authorised Dealer Akces-MED Ltd. Jasionka 955 B 36-002 Jasionka tel. +48 17 864 04 77 e-mail: export@akces-med.com BDO: 000031619 © Sławomir Wroński 2024...
