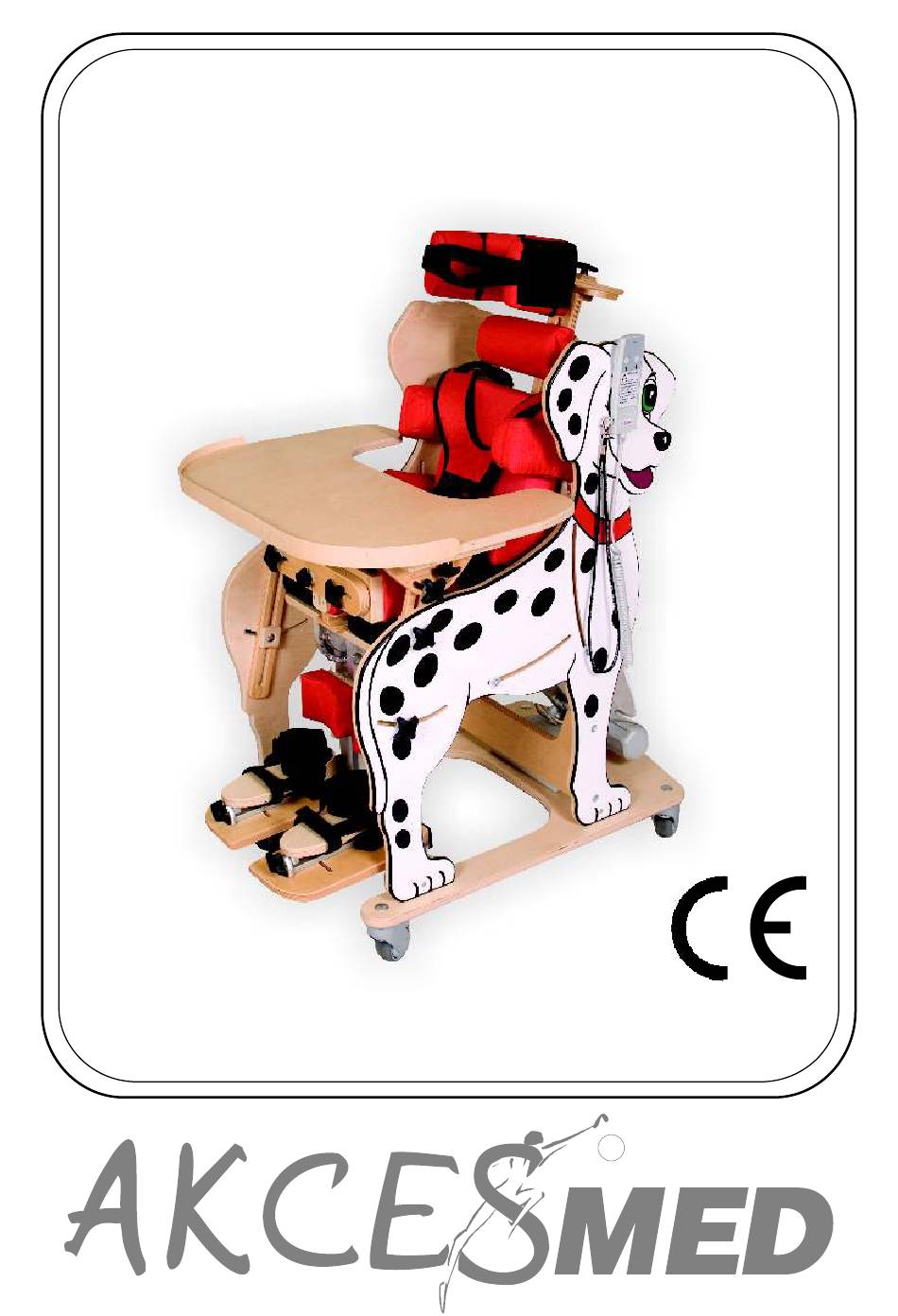

  • Page 1 Rehabilitation Standing Frame DALMATIAN Use and Maintenance Instruction...
  • Page 2 Medical product first class according to the Regulation 93/42/EWG of European Parliament and Council regarding medical products. For this product the producer issued relevant declaration of conformity. Producer’s identification number in the Registration Department of Healing Products, Medical Products and Biocide Products: PL/CA01 04088/W...
  • Page 3 Standing frame DALMATIAN is a modern device designed for static upright standing, used in process of active, everyday rehabilitation of children with conditions that make independent sitting and standing impossible.

  • Page 4: Table Of Contents

    Adjustment of the device to the patient.......11 8. Maintenance and cleaning...........20 9001 13485 Akces-Med Sp. z o.o. Company introduced quality management system ISO 9001 and ISO 13485 regarding production, sales and service. The system is certified by Det Norske Veritas.

  • Page 5: Upright Standing As Relevant Element Of The Process Of Rehabilitation

    -static upright standing is usually one of the stages of rehabilitation before the patient starts learning to walk, patient’s independence is gradually increased. Decision to use the standing frame DALMATIAN is always made by the doctor in charge. 2.When to use Standing Frame DALMATIAN...

  • Page 6: Technical Specification

    Technical specification of DALMATIAN Standing frame DALMATIAN is a device designed for individual use and only us such can perform according to its function. It must be properly adjusted to the height and weight of the patient, the supporting pelottes and clamping rings must be adjusted on proper level.

  • Page 7: Standard Equipment Of Dalmatian

    The proportion of work and break is 10%. (after 2 min. of constant work it requires 18 min. break). Full charging of the battery takes minimum 2 hours. 4. Standard equipment of DALMATIAN 1. frame with street wheels and brakes 2. head rest 3.
  • Page 8 FRONT VIEW OF THE STANDING FRAME...

  • Page 9: Additional Equipment Available

    VIEW FROM THE BACK OF THE STANDING FRAME REMOTE CONTROL 5. Dalmatian- additional equipment 1. Table for manual therapy...

  • Page 10: Safety Rules

    6. Safety rules 1. Standing frame DALMATIAN must be used acording to this instruction. 2. Before each use of the device: - make sure that all parts are in working condition, properly assembled and the device is not damaged or deformed - check if all screws, nuts and all parts which are glued or stitched together etc.
  • Page 11 DALMATIAN can be used at rehabilitation wards and at home only in presence of specially trained people the device has electrical drive...

  • Page 12: Placing Patient In Upright Position

    Uprigt standing is continued at home by: specially trained medical personel (rehabilitation specialist, nurse, trained members of the family) Standing frame DALMATIAN should be used according to this instruction. It is neccessary to prepare the patient and the device prior to every use.

  • Page 13: Preparation Of The Device

    2. Make sure that all parts are working, properly assembled and stable. 3. Check the condition of wheels and brakes 4. Block the brakes Adjust the device to the patient Standing frame DALMATIAN has 3 main functions: chair, standing frame, lying Chair fuction Standing frame function...
  • Page 14 Lying function DALMATIAN standing frame must be well adjusted to the height and weight of the patient in order to perform its function well. Therefore it is necessary to pay attention to the parameters (SIZE 1,2,3) given on page 4. Provide the patient with maximum feeling of safety - is the main rule to follow when adjusting the device to the patient.
  • Page 15 R- adjustment of the position of the head rest S- fixing screw of the knee stabilization in standing position T- adjustment of the angle of the foot rest Adjustments of knee pelottes Adjustments on the side of the device...
  • Page 16 Adjustments of knee stabilization Front view of the device in upright position Adjustment of tooters Rear view of the device- upper part (back rest)
  • Page 17 Rear view of the device- lower part (sit) View of footers- underneath...
  • Page 18 Width of the head rest is adjusted with screws located inside the cover. Loosen up the screws, set the required width and tighten the screws. ASSEMBLY OF THE HEAD REST (ONLY FOR DALMATIAN SIZE 3) 1. Unscrew the nut, remove the washer and fixing cube 2.
  • Page 19 3. Head rest after assembly CHEST PELOTTE (concerns standing frame and chair) In order to adjust the chest pelotte loosen up the screws L located at the back of the standing frame, place the support in required position and tighten the screws. PELVIS PELOTTE (concerns standing frame and chair) In order to adjust the pelvis pelotte loosen up the screws M located at the back of the standing frame, place the support in required position...
  • Page 20 ATTENTION Before the child is placed in the device make sure the fixing screws of the back rest are tight. SIT DEPTH (concerns chair) In order to change the depth of the sit loosen up the screws J (located under the sit), place the sit in required position (pull it forward or push backward) and tighten all 4 screws.
  • Page 21 Angle of arm rests is adjusted with screw F. TABLE Standard equipment of Dalmatian includes a table assembled onto the arm rests. In order to assemble the table slide the table onto the arm rests and block it with screws.

  • Page 22: Maintenance And Cleaning

    8. Maintenance and clearing of standing frame DALMATIAN Standing frame DALMATIAN as an individual use orthopaedic supply and medical device should be maintained clean and used according to the producer’s instruction. The device should be stored in a clean, dry and aired room.
  • Page 23 If there is a need to change parts or do general maintenance of the product, please contact the authorized dealer, at the place of purchasing or ditectly at AKCES-MED Customer Service (ph. 0048 17 864-04-70).
  • Page 24 ORTHOPAEDIC DEVICES MANUFACTURER Akces-MED. Sp. z o.o. ul. Leszka Czarnego 3 35-615 Rzeszów tel. 017 864 04 70 http:// www.akces-med.com e-mail: akces-med@akces-med.com Authorised Dealer date of issue 20.01.2010...
