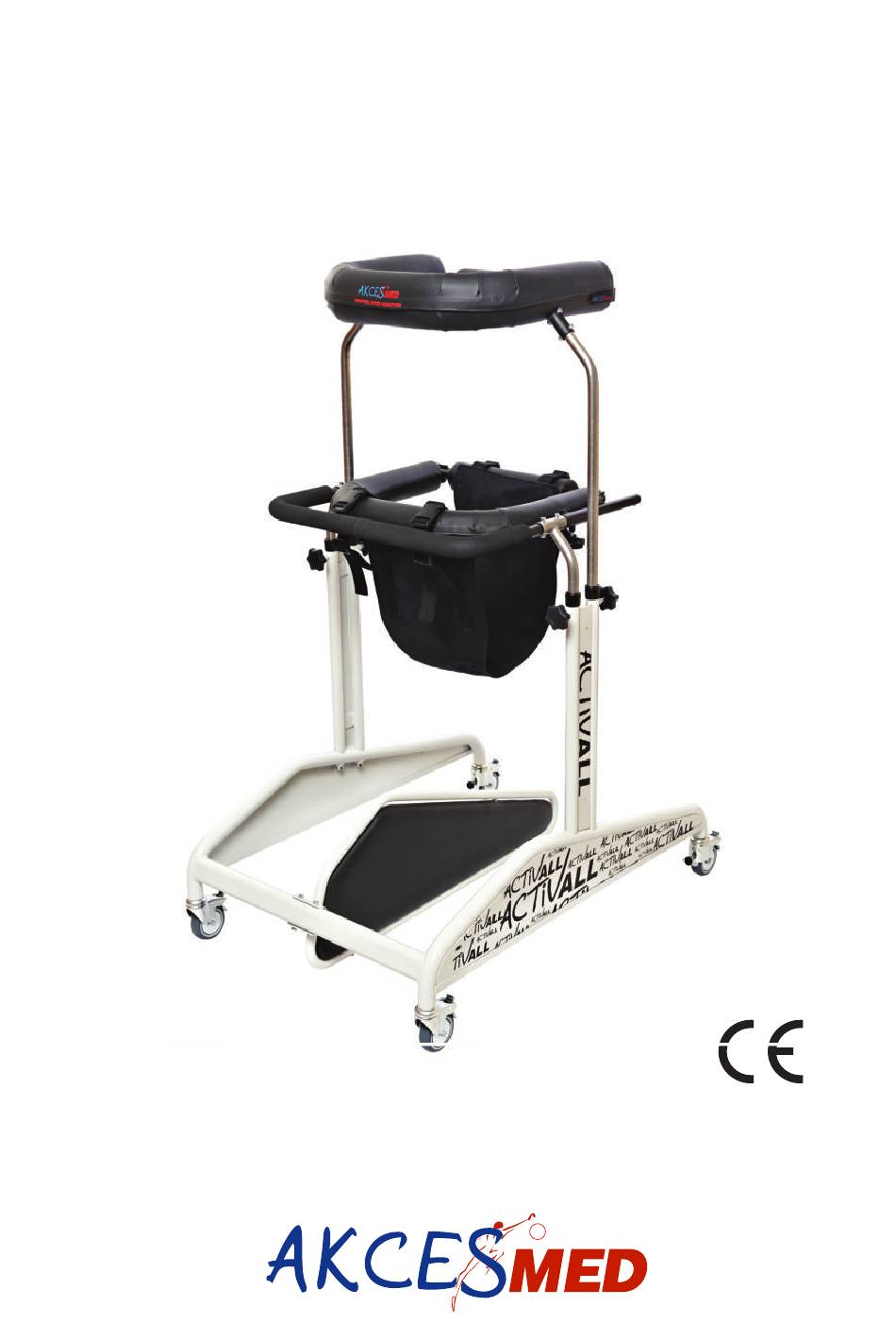

- Page 1 DYNAMIC STANDING FRAME ACTIVALL ™ ASSEMBLY MANUAL...
- Page 2 CAUTION! Manufacturer takes responsibility for proper usage of the device only when the product was purchased from qualified Akces-Med employee or at specialized medical store. Medical product first class according to the Regulation 93/42/EWG of European Parliament and Council regarding medical products.
- Page 3 LIST OF ELEMENTS: Pelotte from chest brace (1 pcs) Bracket from chest brace (2 pcs) Pelotte from pelvic brace ( 1 pcs) Base with castors ( 1 pcs) M6 screw ( 8 pcs) M6 hexagon nut ( 8 pcs)
- Page 5 DESCRIPTION ON HOW TO ASSEMBLE ACTIVALL STANDING FRAME Please follow these steps so as to unfold ACTIVALL: STAGE 1. Assemble chest brace : insert bracket from chest brace (2) into frames of chest pelotte (1) on ź its both sides;...
- Page 6 STAGE 2. Assemble pelvic brace place brackets from pelvic pelotte at an angle 90°; ź...
- Page 7 next, brackets should be mounted on pelvic pelotte (3) with the aid of ź screw (5) as well as nut (6). Screws together with nuts (there are two sets on both sides of brace) should be inserted into holes and fastened by means of Allen wrench.
- Page 8 STAGE 3. Place pelvic brace (3) on the base with castors (4) : insert brackets from pelvic brace into first frame from the base with ź castors (4). It is necessary to tighten firmly knobs once brace is mounted as well as its height is adjusted!
- Page 9 STAGE 4. Place chest brace (3) on the base with castors (4) : insert brackets from chest brace into second frame from the base with ź castors (4). It is necessary to tighten firmly knobs once brace is mounted and its height is adjusted!

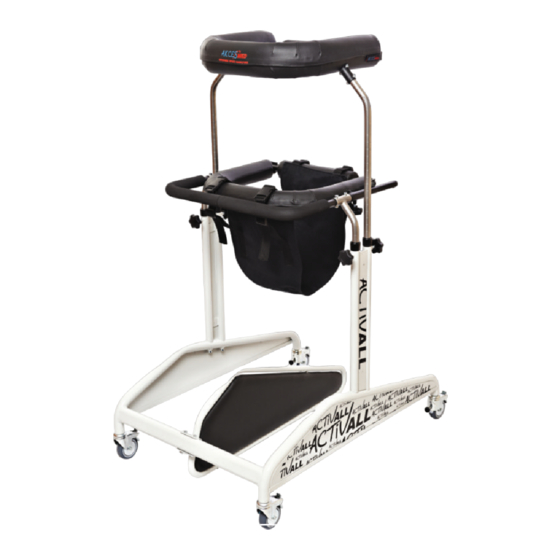

- Page 10 STAGE 5. Place pelvis stabilizing harness and fasten it on pelvic pelotte. Correctly mounted Activall. Remember to adjust product to the patient before use!
- Page 12 Leszka Czarnego 3 35-615 Rzeszów tel. (17) 864 04 70 www.akces-med.com e-mail: akces-med@akces-med.com Authorised Dealer Date of issue: 10.11.2014 The last update: 16.04.2015 AKCES-MED Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning.
