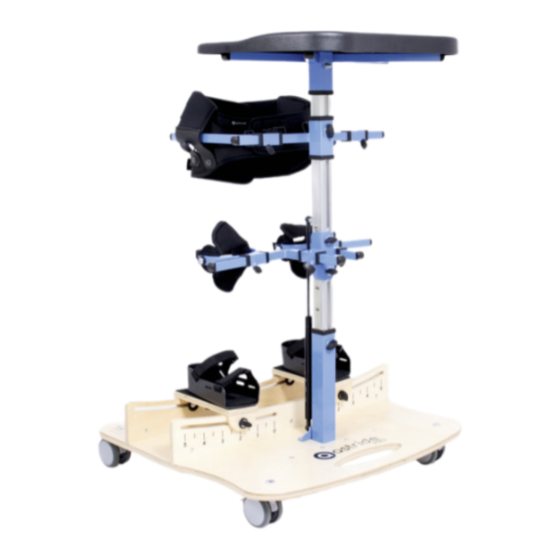

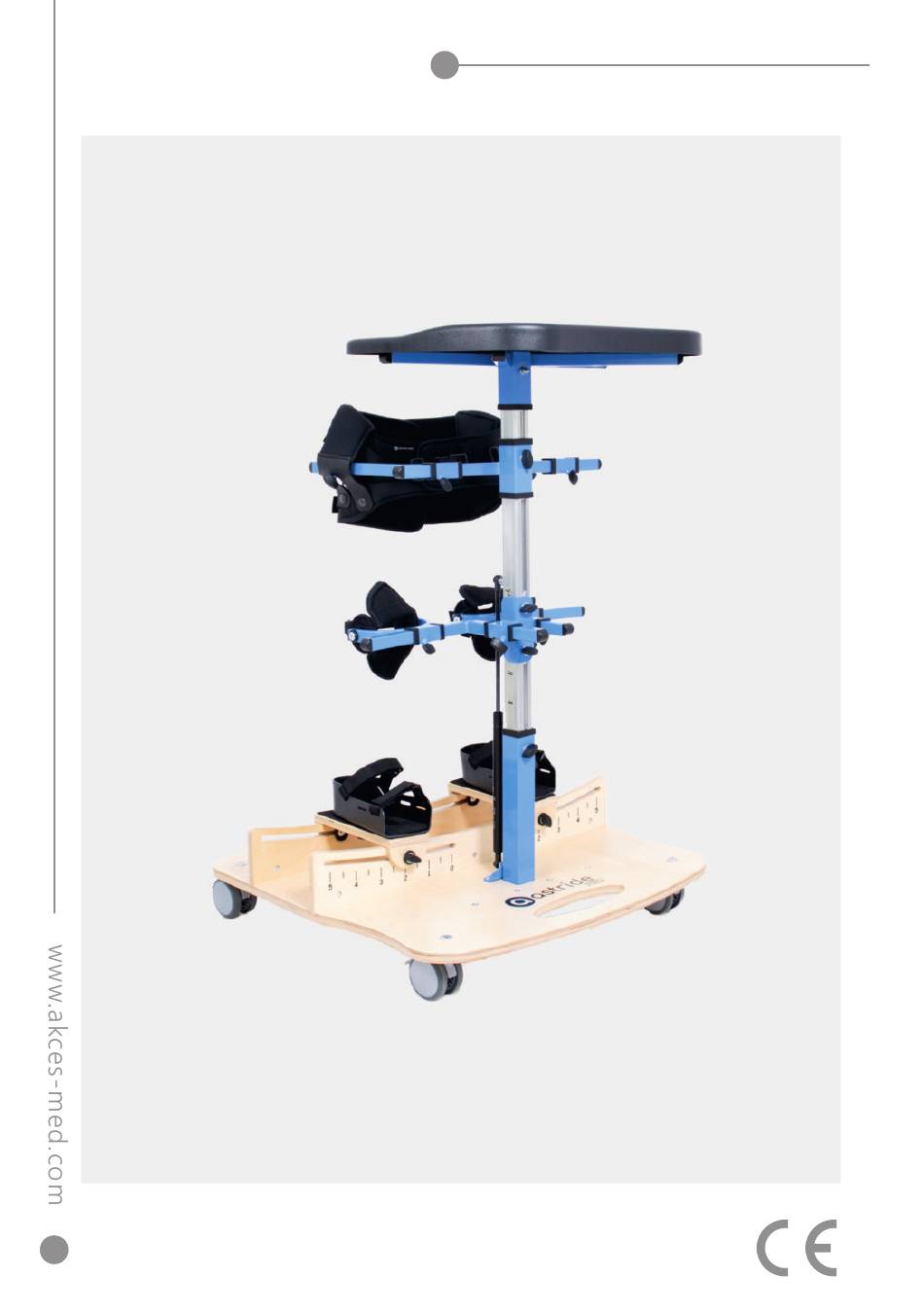

- Page 1 АSTRIDE Pro Standing frame User manual...
- Page 2 Manufacturer takes responsibility for proper usage of the device only when the product was purchased from qualified Akces-MED Ltd. employee or at specialized medical store! Akces-MED Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning.
-
Page 3: Table Of Contents
Contents Introduction..................................4 1. The purpose of user manual...............................5 2. Indications and contraindications for use........................5 3. General characteristic................................7 4. Size table....................................8 5. How to use standing frame..............................9 5.1 Height adjustment..............................11 5.2 Foot stabilizers adjustment...........................13 5.3 Knee supports adjustment............................14 5.4 Pelvic belt adjustment.............................16 5.5 Chest belt adjustment - accessories........................18 6. -
Page 4: Introduction
If you have any questions or remarks, do not hesitate to contact with us: Medical consultant: mobile +48 516 183 883 Akces-MED Ltd.: ph. +48 17 864 04 77 e-mail: export@akces-med.com ATTENTION! Before using the stander, read this user manual which is essential for proper and safe usage of the stander. -
Page 5: The Purpose Of User Manual
, and for both doctors as well as physiotherapists who operate the device. Before using the ASTRIDE Pro™ standing frame, the user (or caregiver) is obliged to read the contents of this manual and to follow the instructions in it. - Page 6 2. Indications and contraindications for use Contraindications: While standing upright, the user who is in a standing position should be closely monitored. The therapy should be discontinued in case of such side effects as: turning pale, sweating or fainting, joint strain and the resulting deformities of\ the body.
-
Page 7: General Characteristic
3. General characteristic TRAY WITH SMOOTH HEIGHT ADJUSTMENT PELVIC BELT WITH PELVIC ROTATION FUNCTION STANDING FRAME COLUMN SMOOTHLY AND STEPLESSY ADJUSTABLE IN HEIGHT, SUPPORTED BY A GAS SPRING KNEE SUPPORTS WITH SOFT KNEE CAPS, INDEPENDENTLY ADJUSTABLE FOR HEIGHT, DEPTH, INDEPENDENTLY ADJUSTABLE LOWER LIMB SPACING, FOOT STABILIZERS ABDUCTION FUNCTION... -
Page 8: Size Table
4. Size table Symbol Measurement Unit Size 1 indicative user height * [cm] 90 - 130 chest belt height (accessories) [cm] 67 - 97 chest belt width (accessories) [cm] 16 - 38 chest belt parimeter (accessories) [cm] 54 - 96 pelvic belt height [cm] 43 - 75... -
Page 9: How To Use Standing Frame
5. How to use standing frame ADJUSTMENTS HEIGHT ADJUSTMENT FEET ADJUSTMENT KNEE SUPPORTS ADJUSTMENT... - Page 10 5. How to use standing frame ADJUSTMENTS PELVIC BELT ADJUSTMENT CHEST BELT ADJUSTMENT - ACCESSORIES...
-
Page 11: Height Adjustment
5. How to use standing frame ATTENTION! The column of the standing frame and the elements that stabilize the user are adjusted by knobs. After the adjustment is completed, remember to tighten them firmly, and before using them, it is essential to check whether the adjustable elements do not change their position under the load. - Page 12 5. How to use standing frame 5.1 Height adjustment INFORMATION! To decrease the height of the standing frame, loosen the knobs and, pressing down on the table, lower it. While pressing the table, tighten the knobs.
-
Page 13: Foot Stabilizers Adjustment
5. How to use standing frame 5.2 Foot stabilizers adjustment INFORMATION! The feet are independently adjustable: spacing, ź front and back movement, ź rotation. ź On the platform there is an infographic telling the value of the angle of the lower limbs abduction depending on the height of the user and the points of attachment of the feet to the slides. -
Page 14: Knee Supports Adjustment
5. How to use standing frame 5.2 Foot stabilizers adjustment FRONT AND BACK MOVEMENT, ROTATION ADJUSTMENT 5.3 Knee supports adjustment INFORMATION! Knee supports are independently adjustable:: in height, ź in width (spacing of the supports), ź in depth. ź They also have independent adjustment of rotation in the frontal plane. -
Page 15: Width Adjustment
5. How to use standing frame 5.3 Knee supports adjustment HEIGHT ADJUSTMENT DEPTH ADJUSTMENT WIDTH ADJUSTMENT hex key 4 INFORMATION! The soft element of the knee support can be adjusted by the included hex key. -
Page 16: Pelvic Belt Adjustment
5. How to use standing frame 5.4 Pelvic belt adjustment INFORMATION! Pelvic belt can be independently adjusted: in width, ź in depth, ź in height. ź The belt's circumference is regulated by velcro elements and additional belts fastened circumferentially with adjusters. HEIGHT ADJUSTMENT DEPTH... - Page 17 5. How to use standing frame 5.4 Pelvic belt adjustment INFORMATION! The pelvic belt can be moved freely on the slides, adjusting its displacement in the frontal plane, as well as adjusting the level of rotation of the belt according to the user's needs.
-
Page 18: Chest Belt Adjustment - Accessories
5. How to use standing frame 5.5 Chest belt adjustment - accessories INFORMATION! Chest belt can be independently adjusted: in height, ź in width, ź in depth. ź The belt's circumference is regulated by velcro elements and additional belts fastened circumferentially with adjusters. - Page 19 5. How to use standing frame 5.5 Chest belt adjustment - accessories...
- Page 20 5. How to use standing frame 5.5 Chest belt adjustment - accessories DEPTH ADJUSTMENT WIDTH ADJUSTMENT HEIGHT ADJUSTMENT...
-
Page 21: The Use Of Standing Frame
6. The use of standing frame ATTENTION! Before using the ASTRIDE Pro standing frame, read the instruction manual and follow the information included therein. Before each use, prepare the user and the device. 6.1 Preparation of the user Before using the product, it is essential to make sure that: user's outfit is light and comfortable, not restrictive of movement, ź... -
Page 22: Preparation Of The Product
6. The use of standing frame 6.2 Preparation of the product 1. How to prepare the standing frame for use: assemble the standing frame, ź place the standing frame on an even and flat surface, away from sources of fire and high ź... -
Page 23: Upright Position
6. The use of standing frame 6.3 Upright position The length of time for upright position process is different for each user. It is recommended to extend this time during the initial period (adaption period for the change of position). Either doctor or physiotherapist can make decision concerning the length of upright position process. -
Page 24: Safety Rules
7. Safety rules ATTENTION! The standing frame ASTRIDE Pro has to be used in compliance with guidelines in this use manual. Before each use, prepare the user and the device. It is highly important to consult either doctor or physiotherapist in order to make right decision concerning the choice of ASTRIDE Pro™... - Page 25 7. Safety rules ATTENTION! Incorrect product adjustment can lead to such side effects as fainting, body deformities, joint overload, etc. If the abovementioned symptoms occur, stop using the product immediately, take the user out of the product and lay them down. If the undesirable symptoms persist, contact a physician immediately. If the symptoms have disappeared, inform the attending physician about this fact in order to make a decision about the further rehabilitation process.
-
Page 26: Terms Of Warranty
If product is damaged, please contact our dealer or Akces-MED Ltd. customer service: ź (ph. +48 17 864 04 77, e-mail: export@akces-med.com). - Page 27 ATTENTION! Remember that upholstery has to be always dry before using! The manufacturer of the standing frame, Akces-MED Ltd., is not responsible for any damages caused by using unsuitable cleaners. Before using it is necessary to: clean wheels, ź...
-
Page 28: Technical Inspection
9. Maintenance and cleaning TECHNICAL INSPECTION Technical inspections should be performed regularly. Before servicing, the product should be thoroughly cleaned to reveal any hidden damage. Frequency What should be checked? What should be done? Remarks Before each use. General condition of the Check: In case of any damage or defects, product. - Page 29 9. Maintenance and cleaning TECHNICAL INSPECTION Technical inspections should be performed regularly. Before servicing, the product should be thoroughly cleaned to reveal any hidden damage. Frequency What should be checked? What should be done? Remarks Once a month. Wheel axles, quick Check: Clean the wheels when dirty.
-
Page 30: Labelling
10. Labelling Declaration that the product meets the essential Do not dry in a drum dryer requirements Dry vertically Catalog number Serial number Do not chlorinate Please read the manual instructions before use Do not iron You need to take special precautions Do not dry clean Manufacturer Do not bleach... - Page 32 MANUFACTURER Authorised Dealer Akces-MED Ltd. Jasionka 955 B 36-002 Jasionka tel. +48 17 864 04 77 e-mail: export@akces-med.com BDO: 000031619 © Sławomir Wroński 2024...
